High Power Wireless N150 USB Adapter

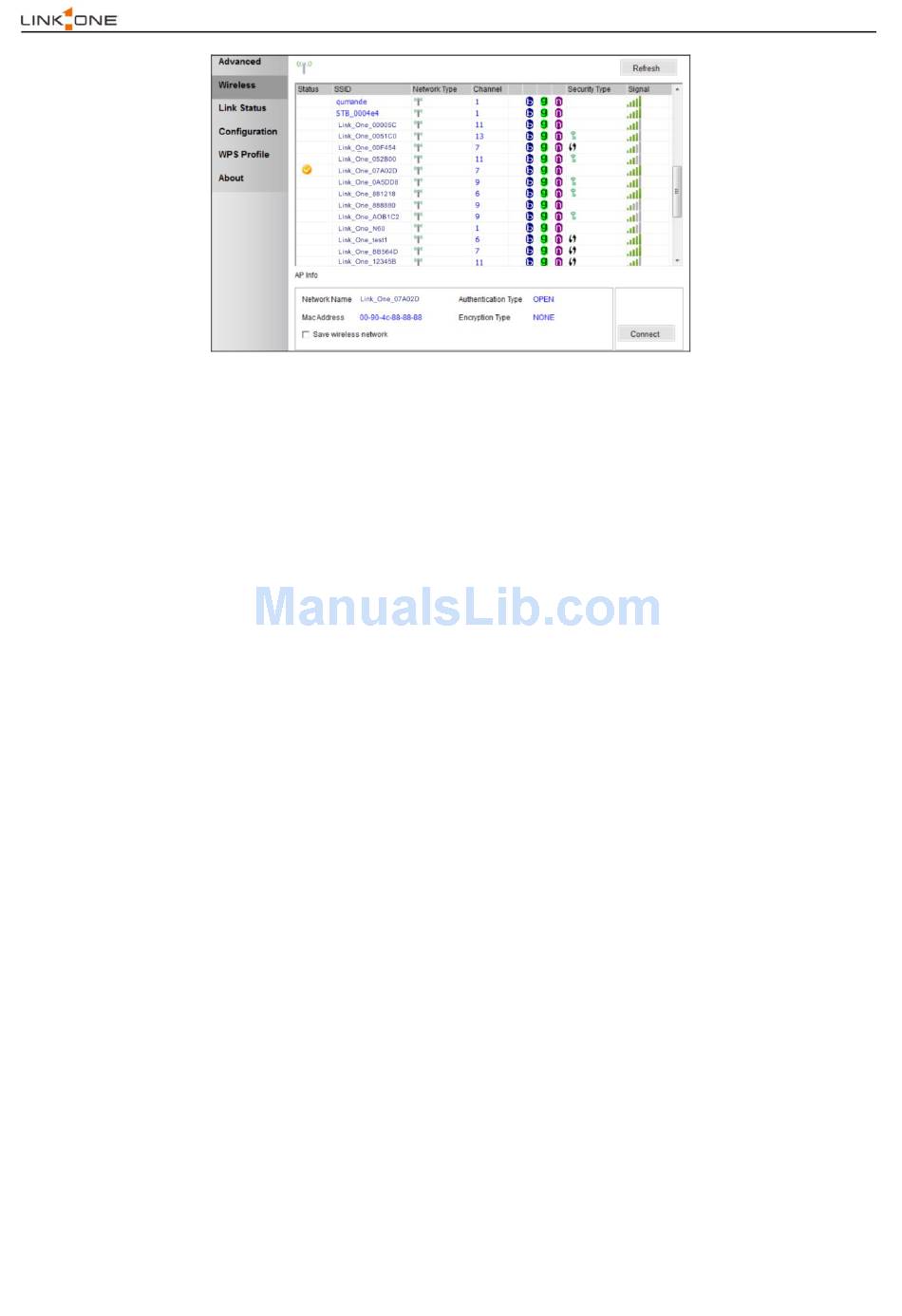

If you are prompted to provide a security key, simply enter it exactly as it is on the wireless router or access
point you plan to connect to and then click Next.
Note:
If you check Save wireless network upon successful connection, then, after the adapter connects to the
network, it automatically saves the network connection information to a profile.
For detailed illustrations of authentication and encryption modes, see below:
WEP: Support 10 or 26 Hex characters; 5 or 13 ASCII characters.
WPA-PSK: Support 8~63 ASCII characters; 8~64 Hex characters.
WPA2-PSK: Support 8~63 ASCII characters; 8~64 Hex characters.
WPA-PSK/WPA2-PSK: Support 8~63 ASCII characters; 8~64 Hex characters.
Note:
1.Hex characters include numbers of 0~9 and letters of a~f.
2.ASCII characters include any alphanumeric characters.

3.1.3 Link Status

After you have successfully connected to a wireless work, you can click Wireless to view details of the
connection, including link info and traffic statistics.
