Summary of Contents for Intercom PREMIUM 400 - INOX

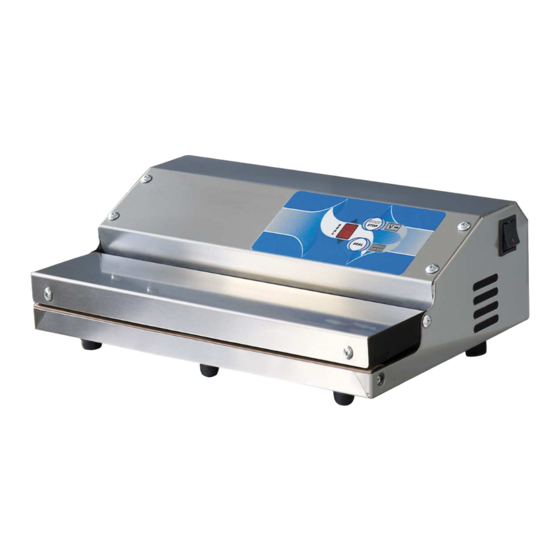

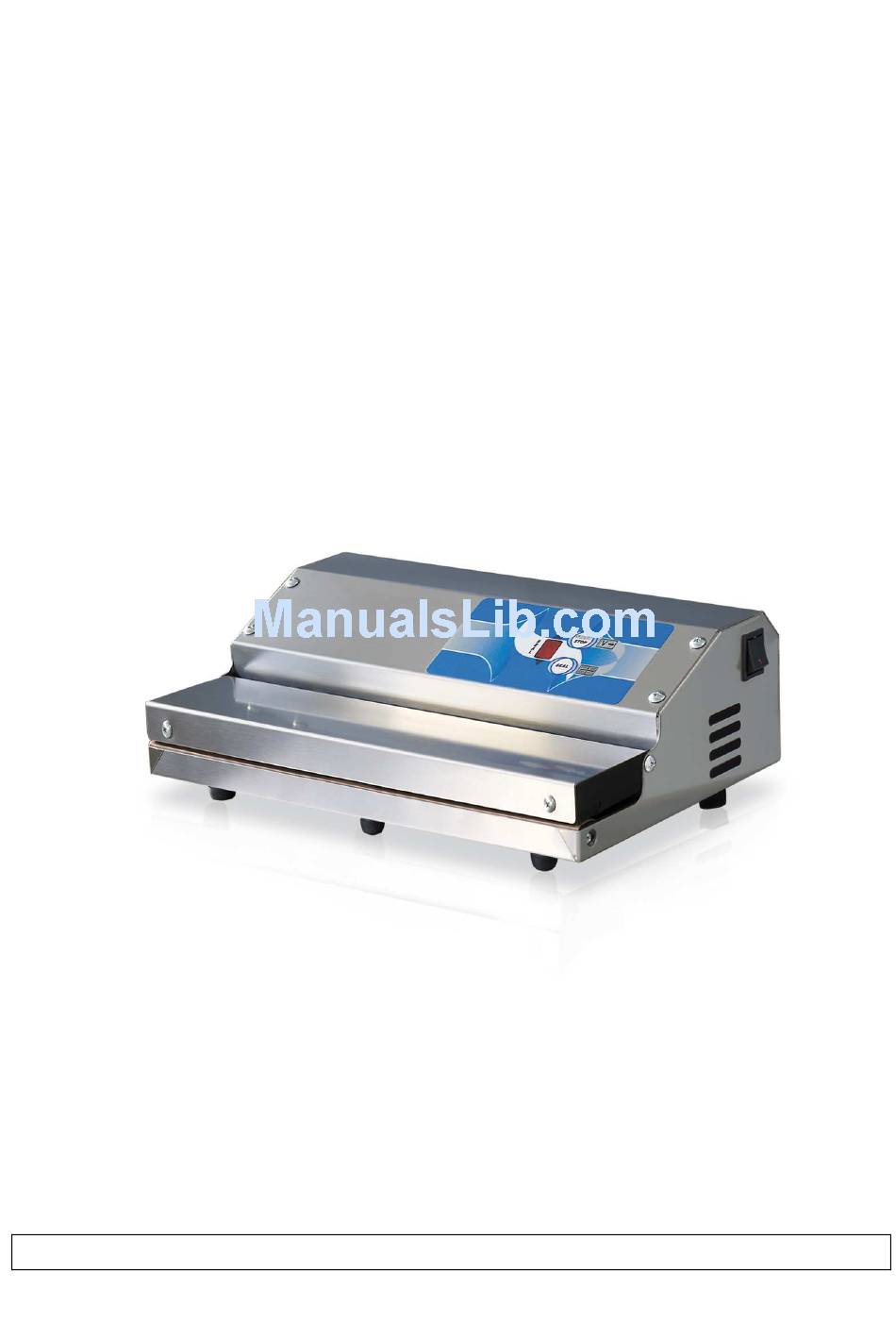

- Page 1 EXTERNAL SUCTION VACUUM PACKAGING MACHINES PREMIUM USE AND MAINTENANCE MANUAL...
-
Page 2: Vacuum Pump
WARRANTY RULES FOR OUR VACUUM-PACKING MACHINES Dear Customer, In order to avoid any misunderstanding about our warranty policy, please note the following: VACUUM PUMP is not intended to be replaced by the supplier, even if within warranty time, without a previous return of the disputed part. A misuse of vacuum pumps for 2 or 3 months (Packing of hot, wet or corrosive products, as well as liquids) might prevent any pump from working properly. - Page 3 CHAPTER 1 Instruction Handbook The Instruction Handbook is a document issued by the Manufacturing Company and is a part of the machine. This document is properly identified for any further reference. All rights reserved. No information disclosure would be allowed, without having been previously approved by the manufacturer.
-
Page 4: Warranty
CHAPTER 2 WARRANTY The manufacturing Company delivers a 12 (twelve) month warranty from the delivery date. All machine components which are subject to constant wear are NOT included in the warranty. Please note all the following specifications: A. Electrical resistance-coils – Teflon – Seals – Opening chamber pistons – Sealing diaphragm – Air filters – Oil filters – Oil change –... - Page 5 Do not remove the CE MARKING plate/label and/or replace it with a different one. Should the CE MARKING plate/label be accidentally damaged, detached from the machine or the manufacturer’s seal removed, any customer must inform immediately The Manufacturer. Installation Remove the package and check machine conditions. Look for possible damages caused by transport. If in doubt, do not use the machine and contact the manufacturer.
-
Page 6: Control Panel
CONTROL PANEL FOTO A 1) Button for the start of the working cycle: if pressed twice, it stops any working activity. When the machine is not running, it enables the selection of programs AUT 1 (15 secs- vacuum cycle) and AUT 2 (25 secs- vacuum cycle). At the end of these 2 programs, machine will automatically seals the vacuum bag. - Page 7 MANUAL CYCLE: pressing Start/Stop button, a time endless working cycle is on ( A letter for aspiration is shown on the display).Once wished vacuum level is obtained in the bag, the operator will press SET/SEAL button to let the sealing phase start, with automatic switch off of the pump. AUTOMATIC CYCLE: when machine is in stand-by, dash/line in the centre of the display will be positioned on MAN: pressing START/STOP, the operator will place the dash/line on AUT1 or AUT2.Automatically, the electronic board will show time sealing (DEFAULT 3,5 sec),which can be modified..
-
Page 8: Internal Components
INTERNAL COMPONENTS FOTO B FOTO C LEGEND Sealing bar with Teflon cloth (thickness 0,127µ) Suction join to attach the emptying tube container with valve Plate gasket Milled silicon Clasp to open the blade Internal screw to fix the resistor... - Page 9 INTERNAL TECHNICAL COMPONENTS LEGEND Electronic board (enables control-panel functions) Stainless-steel structure Electronic transformer Vacuum pump Stainless-steel board...
-
Page 10: Maintenance
RECOMMENDED BAGS We recommend using textured (gofer) bags (thickness 100 µ) available in our warehouse in any size. It is possible to use regular smooth ny-rol bags (thickness 140 µ) making sure that lateral bag borders are folded in order to obtain the suction channels.
