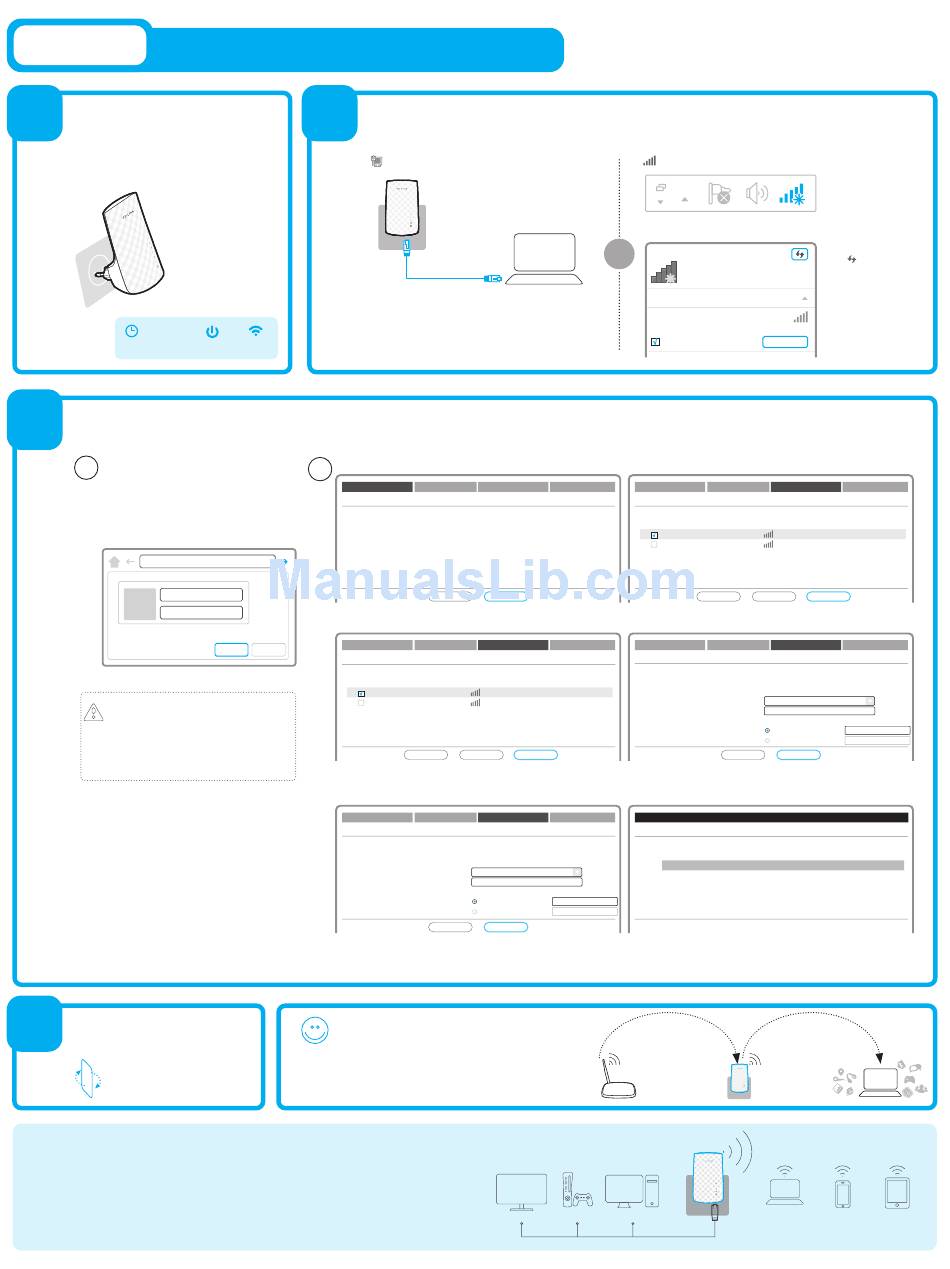

Method Two - TP-Link RE200 Quick Installation Manual

Method TWO

Setup using your Web Browser
1
Power on
Plug your Range Extender into a power
outlet near your Router/AP.
Wait until the '
LEDs light up.
3
Configure
1
Type "http://tplinkextender.net" in
your Web browser and press Enter.
Log in to the management page
using user name "admin" and
password "admin".
http://tplinkextender.net
admin
admin
It may take 5 seconds or more for the
login page to pop up.
If it does not pop up, refresh the
browser, otherwise, please refer to the
FAQ > Q2.
4
Relocate
Refer to Step 3 of Method
ONE on the other side.
Entertainment Adapter
The Range Extender's single ETHERNET port allows the Range Extender to function as a
wireless adapter connecting a wired device like Blu-ray players, game consoles, DVRs and
smart TVs. At the same time, the device can share the wireless network. Please follow
Method ONE or Method TWO to set up the Range Extender first and then refer to this
connection diagram to connect it to one Ethernet-enabled device.
2
Connect your computer to the Range Extender
Connecting via Ethernet Cable
1. Disconnect your computer from all wireless
networks.
' and '
' 2. Connect the Range Extender to your computer via
an Ethernet cable. Then go to Step 3.
2
Below are the major setup process steps.
Start
Main Router/AP WiFi Network Name(SSID):
Wi-Fi Network Name_2.4GHz:
Wi-Fi Network Name_5GHz:
Connection Status:
Please click Next to set up the Range Extender or click Exit to go to the Device Management Page.
a. The Quick Setup page appears when you login in.
Start
OK Cancel
Available Wireless Networks (2.4GHz): 24
Choose SSID
TP-LINK_2.4GHz_XXX
√
TP-LINK_XXX
b. Select your Router/AP's 2.4GHz Wireless Network, for example,
TP-LINK_2.4GHz_XXX.
Start
Main Router/AP Network (2.4GHz)
Main Router/AP WiFi Network Name(SSID):
Main Router/AP MAC Address(BSSID):
Fill in the WiFi Password of your Main Router/AP:
Range Extender Network (2.4GHz)
Range Extender WiFi Network Name(SSID):
c. Fill in the Wi-Fi Password of your main Router/AP.
You can copy the Wi-Fi Network Name (SSID) from your main Router/AP
(TP-LINK_2.4GHz_XXX) or set a new one (TP-LINK_2.4GHz_XXX_EXT).
Enjoy!
Choose the Range Extender's Wi-Fi Network Name
(TP-LINK_XXGHz_XXX or TP-LINK_XXGHz_XXX_EXT).
The Range Extender shares your main Router/AP's
Wi-Fi Password.
Choose Region Wireless Settings Review Settings
N/A
N/A
Disconnected
Exit Next
Choose Region Wireless Settings Review Settings
Signal MAC Channel Security
00-0A-EB-74-06-06 1 WPA-PSK
0C-72-2C-B3-A5-2C 1 WPA-PSK
Back Rescan Next
Choose Region Wireless Settings Review Settings
TP-LINK_2.4GHz_XXX
00-0A-EB-74-06-06
Most Secure(WPA-PSK/WPA2-PSK)
WiFi Security Option:
123456789
Copy from Main Router/AP TP-LINK_2.4GHz_XXX
Customize TP-LINK_2.4GHz_XXX_EXT
Back Next
Ethernet
Connection
Smart TV Game Console
Connecting via Wireless
or
Not connected
Connection are available
Wireless Network Connetion
TP-LINK_Extender_XXGHz
Connect automatically Connect
√
Start Choose Region Wireless Settings
Available Wireless Networks (5GHz): 5
Choose SSID Signal
TP-LINK_5GHz_XXX 00-0A-EB-74-06-07
√
TP-LINK_XXX 0C-36-2C-B3-A4-2D
Back Rescan
d. Select your Router/AP's 5GHz Wireless Network, for example,
TP-LINK_5GHz_XXX.
Start Choose Region Wireless Settings
Main Router/AP Network (5GHz)
TP-LINK_5GHz_XXX
Main Router/AP WiFi Network Name(SSID):
00-0A-EB-74-06-07
Main Router/AP MAC Address(BSSID):
Most Secure(WPA-PSK/WPA2-PSK)
WiFi Security Option:
123456789
Fill in the WiFi Password of your Main Router/AP:
Range Extender Network (5GHz)
Copy from Main Router/AP
Range Extender WiFi Network Name(SSID):
Customize
Back
e. Fill in the Wi-Fi Password of your main Router/AP.
You can copy the Wi-Fi Network Name (SSID) from your main Router/AP
(TP-LINK_5GHz_XXX) or set a new one (TP-LINK_5GHz_XXX_EXT).
Restart
Configuration Completed Successfully.
Completed!
100%
Please wait a moment, if the browser does not refresh automatically, click Refresh on the top of your
browser.
f. The 2.4G/5G LEDs will light up if the configuration is successful.
SSID (TP-LINK_XXGHz_XXX/
TP-LINK_XXGHz_XXX_EXT)
SSID (TP-LINK_XXGHz_XXX)
Password (ABCDEF)
Password (ABCDEF)
Wireless
Connection
Desktop Laptop
1. Disconnect your
Ethernet Connection.
Click the Wireless
Network Connection
icon on your desktop.
2. Click the Refresh
icon and connect to
the Range Extender
(the default wireless
network name is:
TP-LINK_Extender_
XXGHz as listed on
the rear panel) and go
to Step 3.
Review Settings
MAC Channel Security
1 WPA-PSK
1 WPA-PSK
Next
Review Settings
TP-LINK_5GHz_XXX
TP-LINK_5GHz_XXX_EXT
Next
Smartphone Tablet
