TP-Link RE705X Quick Installation Manual

Quick Installation Guide

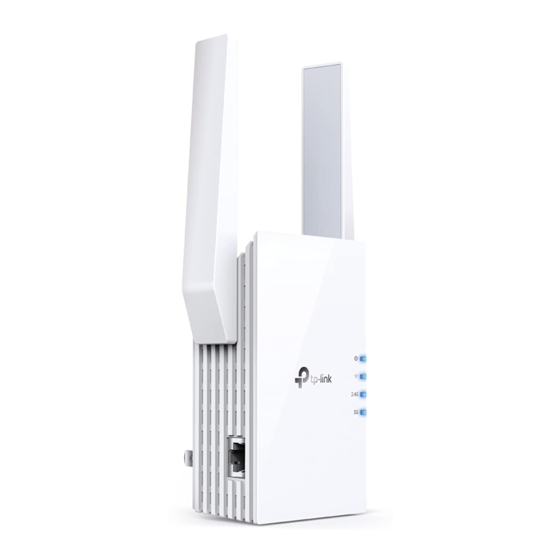

Range Extender
* Images may differ from your actual product.
2
Set Up
Method 1: Via the WPS Button
1. Activate the WPS function on your router by
pressing the WPS button.
Note: If you don't know how to do it, refer to your router's user
manual, or you can use other methods to set it up.
2. Within 2 minutes, press the WPS button on the extender
for 1 second, and the LED starts blinking. Wait for
the LED, 2.4GHz LED and 5GHz LED to turn solid
blue, indicating a successful connection.
Note: If only the 2.4GHz or 5GHz LED is solid blue, check to see if
the router has both 2.4GHz and 5GHz bands turned on. If both are
turned on, try WPS again or use other methods.
Blinking
3. Done. You can connect to the extender's Wi-Fi.
Extended Network Names:
Router's network name with _EXT at the end
or
Same as your EasyMesh router (see back for EasyMesh
details)
Passwords:
Same as your router
3
Relocate
1. Plug in the extender about halfway between your router and the Wi-Fi dead
zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until the
relocate the extender closer to the router to achieve better signal quality.
Tip: To place the extender for optimal Wi-Fi performance, access extender settings
via the Tether app and go to Tools > Location Assistant, or simply scan the QR code
to visit https://www.tp-link.com/support/faq/3103/.
Enjoy!
·
Connect your devices to the extender wirelessly or via an Ethernet cable,
then enjoy the internet. The password of your extended network is the same
as your main router.
·
You can also change the extender to Access Point Mode to transform your
existing wired network to a wireless one. For details, see Access Point Mode
(AP Mode) on the back page.
Method 2: Via the Tether App
1. Get the up-to-date Tether app from the Apple App
Store or Google Play, or simply scan the QR code.
The WPS button might
look like one of these:
2. Launch the Tether app, you can create an account or
skip the creation and set up directly.
3. Tap the
Note: If you cannot find your device, please refer to FAQ >
Q1.
Solid On
4. Follow app instructions to complete the setup. The
LED should turn solid on, indicating successful
connection to your router.
Note: If the LED does not turn solid on, please refer to FAQ
> Q2.
LED turns solid blue. If it doesn't,
1
Power On
Plug the extender into a power outlet next to your router. Wait until
its Power LED turns solid on.
Note: For safety, only plug the extender in the direction as shown below.
or
Scan for Tether Tether
Skip
Create a TP-Link ID
TP-Link ID (Email)
English
Continue
button and select Range Extender.
My Devices
No devices found.
Choose Your Device Type
Wireless Router
Gaming Router
Range Extender
Next to
Method 3: Via a Web Browser
1. Connect your computer or smartphone to the
extender's network TP-Link_Extender.
Connections are available
Wireless Network Connection
TP-Link_Extender
Connect automatically Connect
√
2. Visit http://www.tplinkrepeater.net or
http://192.168.0.254 in a web browser. Create a
password to log in.
http://www.tplinkrepeater.net
Create Password
Low Middle High
Confirm Password
Start
3. Follow web instructions to complete the setup.
Solid On
Router
Halfway
Smartphone Tablet
Smart TV Game Console
Solid On
Blue: Suitable location
Red: Too far from router
Devices
Laptop
Desktop
