Instruction Manual
INSTRUCTIONS FOR

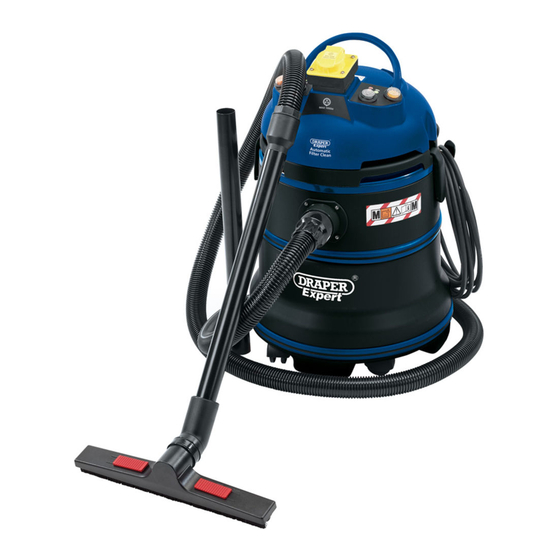

M Class 230V 35L
Wet & Dry Vacuum Cleaner
Stock No.38015
Part No.WDV35LMC
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper WDV35LMC
Summary of Contents for Draper WDV35LMC
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
‘M’ class approved standards . ATTENTION: any other application is considered misuse. 4.2 SPECIFICATION Stock no ..........................38015 Part no ........................WDV35LMC Rated voltage ......................230V~50Hz Rated input........................1200W Tank volume ..........................35L Vacuum pressure ...................24Kpa (240 mbar) Max. -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS General Power Tools Safety Warnings WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 7 HEALTH & SAFETY INFORMATION e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
-
Page 8: General Safety Instructions For This Vacuum Cleaner
HEALTH & SAFETY INFORMATION 5.2 GENERAL SAFETY INSTRUCTIONS FOR THIS VACUUM CLEANER • Please save this manual for future reference. • Electrical appliances are not toys. Use and store the vacuum out of reach of children. • This appliance is not designed for use by people (including children) with limited physical, sensorial or mental capacity or anyone who has not read this instruction manual. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Power tool outlet socket. Brush floor cleaning head insert. Head and tank assembly fixing locks. Crevice nozzle. Hose inlet. Power tool exhaust connection stepped adaptor. Tank. Foam filter (liquid suction). Flexible hose. Cartridge filter (dry suction). Extension tubes (x2). -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 11: Preparing The Vacuum Cleaner
PREPARING THE VACUUM CLEANER 8.1 RELEASING THE MOTOR UNIT FIG. 1 (FIGS.1 – 4): – To release the motor unit, lift the head and tank assembly fixing locks in an upward direction (fig.1). – Pull away the hooked ends of the locks to free the head unit from the tank (fig.2). -
Page 12: Using The Cord Hook
PREPARING THE VACUUM CLEANER 8.2 USING THE CORD HOOK (FIG.5): FIG. 5 The appliance is fitted with a built in cord hook to aid safe operation and useful storage. 8.3 USING AS A WET AND DRY VACUUM CLEANER (FIG.6): For use as a wet and dry vacuum cleaner: Selector switch : in "MANUAL"... -
Page 13: Using The Vacuum With The Power Tools Socket
PREPARING THE VACUUM CLEANER 8.4 USING THE VACUUM WITH THE POWER TOOLS SOCKET (FIG.7): Using the vacuum in conjuction with the power tools socket: Selector switch : in "AUTOMATIC" position ( Power switch • Position – appliance ON (indicator light on). -
Page 14: Connecting A Power Tool To The Vacuum Cleaner
PREPARING THE VACUUM CLEANER 8.6 CONNECTING A POWER TOOL TO THE FIG. 9 FIG. 9 VACUUM CLEANER (FIGS.9 – 10): – Plug the power tool into the socket on the motor unit (fig.9). – Plug the vacuum into the power supply (fig10). –... -
Page 15: Inserting The Cartridge Filter
PREPARING THE VACUUM CLEANER 8.8 INSERTING THE CARTRIDGE FILTER FIG. 13 (FIGS.13 – 14): – Place the filter on the motor housing Important: This tool must not be used for dry-dusty materials or for on-tool extraction without the dust bag and filter fitted. Class M performance is only achieved through use of both filter and bag together. -
Page 16: Fitting The Extension Tubes & Floor Head Attachment
PREPARING THE VACUUM CLEANER 8.11 FITTING THE EXTENSION TUBES & FLOOR HEAD ATTACHMENT (FIGS.17 – 19): – Attach the extension tubes as required. FIG.17 FIG. 6 – Connect to the floor head attachment FIG.18 FIG. 6 FIG. 6 – Rotate the floor head attachment 180°. FIG.19... -
Page 17: Operation And Use
OPERATION AND USE 9.1 FOR USE AS A DRY VACUUM CLEANER FIG.20 (FIG.20): Important: The cartridge filter and bag must always be used. – Keep the cartridge filter clean. – Replace the cartridge filter if overly caked or worn. 9.2 FOR USE AS A WET VACUUM CLEANER FIG.21 (FIGS.21 –... -
Page 18: Using The Vacuum Cleaner With A Power Tool
OPERATION AND USE 9.4 USING THE VACUUM CLEANER WITH A FIG.24 POWER TOOL (FIGS.25 – 30): Important: The cartridge filter and filter bag must always be used. – Remove the foam filter if installed. – Fit the bag FIG.25 – Fit the cartridge filter –... - Page 19 OPERATION AND USE – Plug in the power tool. FIG. 28 – Plug in the vacuum cleaner. FIG.29 FIG. 6 – Using the supplied cable rings , fix the cable FIG.30 of the electric power tool to the flexible hose.
-
Page 20: Maintenance
10. MAINTENANCE Warning: Always unplug the appliance from the FIG. 31 power supply before cleaning or servicing the filter system in any way. Ensure you always wear a FFP3 approved dust mask and open/empty the machine away from other people preferably outside. 10.1 CHANGING THE DUSTBAG (FIGS.31 –... -
Page 21: Cleaning The Cartridge Filter
10. MAINTENANCE 10.3 CLEANING THE CARTRIDGE FILTER FIG. 35 (FIGS.35 – 39): To clean the cartridge filter; – turn on the Self-Cleaning Filter function by pressing the orange switch for approximately 30 seconds. – Release the button for 15 seconds for the coil to cool down. -
Page 22: Cleaning The Drum
10. MAINTENANCE Important: Handle the cartridge filter carefully FIG.39 when wet. 10.4 CLEANING THE DRUM (FIG.40): To clean the drum; – Wipe dust out drum when changing bags. – Change bags when ¾ full. – Dry off the drum and accessories after vacuuming liquids. -
Page 23: Troubleshooting
11. TROUBLESHOOTING Problem Probable cause Suggested remedy The appliance will No power. Check that the power socket is working. not start. Defective power Contact your technical service centre cord, switches, or (see attached list). motor. Reduced Bag full. Replace bag. efficiency. -
Page 24: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 9.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. This logo indicates that this appliance is compliant with ‘M’ Class approved filtration standards and is suitable for: Vacuuming dust and liquids. -
Page 25: Disposal
13. DISPOSAL 13.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 26 NOTES...
- Page 27 NOTES...
- Page 28 - Sales Fax: (023) 8049 4209 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST DKMC070415...
