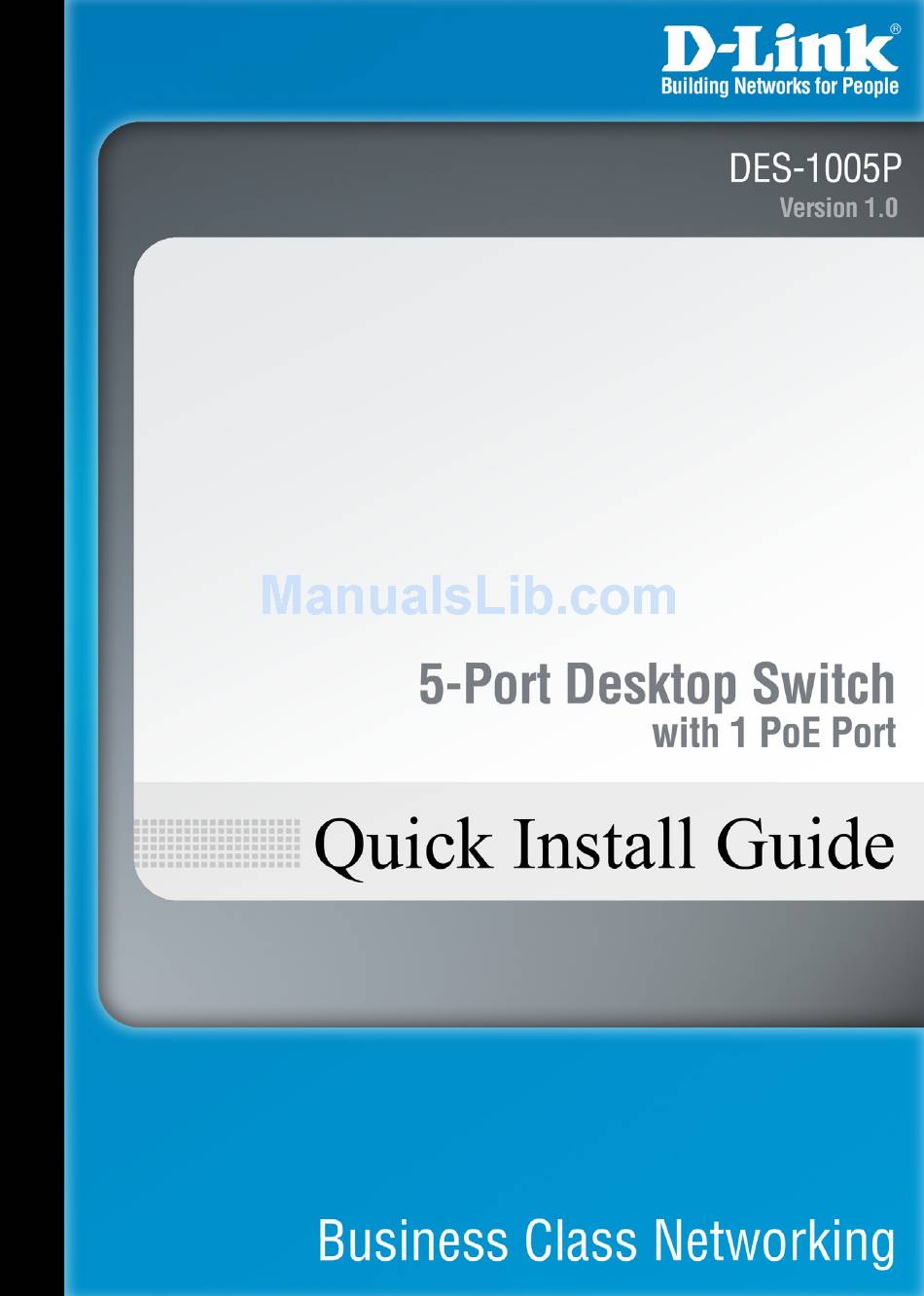

D-Link DES-1005P Quick Install Manual
5-port desktop switch with 1 poe port
Hide thumbs
Also See for DES-1005P:
- Quick installation manual (97 pages) ,
- Manual (16 pages) ,
- Datasheet (3 pages)
Related Manuals for D-Link DES-1005P
Summary of Contents for D-Link DES-1005P
-
Page 2: Package Contents
Package Contents • DES-1005P 5-Port Desktop Switch with 1 PoE Port • Power Adapter • Four (4) Rubber Feet If any of the above items are missing, please contact your reseller. Introduction The D-Link DES-1005P is an unmanaged PoE switch capable of providing power to a Power over Ethernet (PoE) device such as a network camera or wireless access point. The DES-1005P has five 10/100Mbps ports with 1 port capable of PoE (Port 1), which is useful for home and small office businesses who have limited budgets or compact space requirements Before You Begin The setup of the Switch can be performed using the following steps: • Visually inspect the power jack and make sure that it is fully secured to the... - Page 3 10/100Mbps device and will blink as data is transmitted or received. PoE Port (1) - This LED indicator light is solid green when the port is successfully connected to a powered device and is powering the device properly. If the LED is off, there is no connection to a powered device (that requires power). D-Link DES-1005P Quick Install Guide...
-
Page 4: Technical Support
Telephone: (877) 354-6555 Telephone: (877) 354-6560 Internet: http://support.dlink.com Internet: http://support.dlink.ca Version 1.0 September 23, 2011 Copyright ©2011 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries. Other trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the packaging. Visit dlink.com (US) or dlink.ca (Canada) for more details. D-Link DES-1005P Quick Install Guide...
