SMART
SideKick
Multi-Room Powered Roller for
Continuous Painting
Owner's Manual
Read this manual for complete instructions

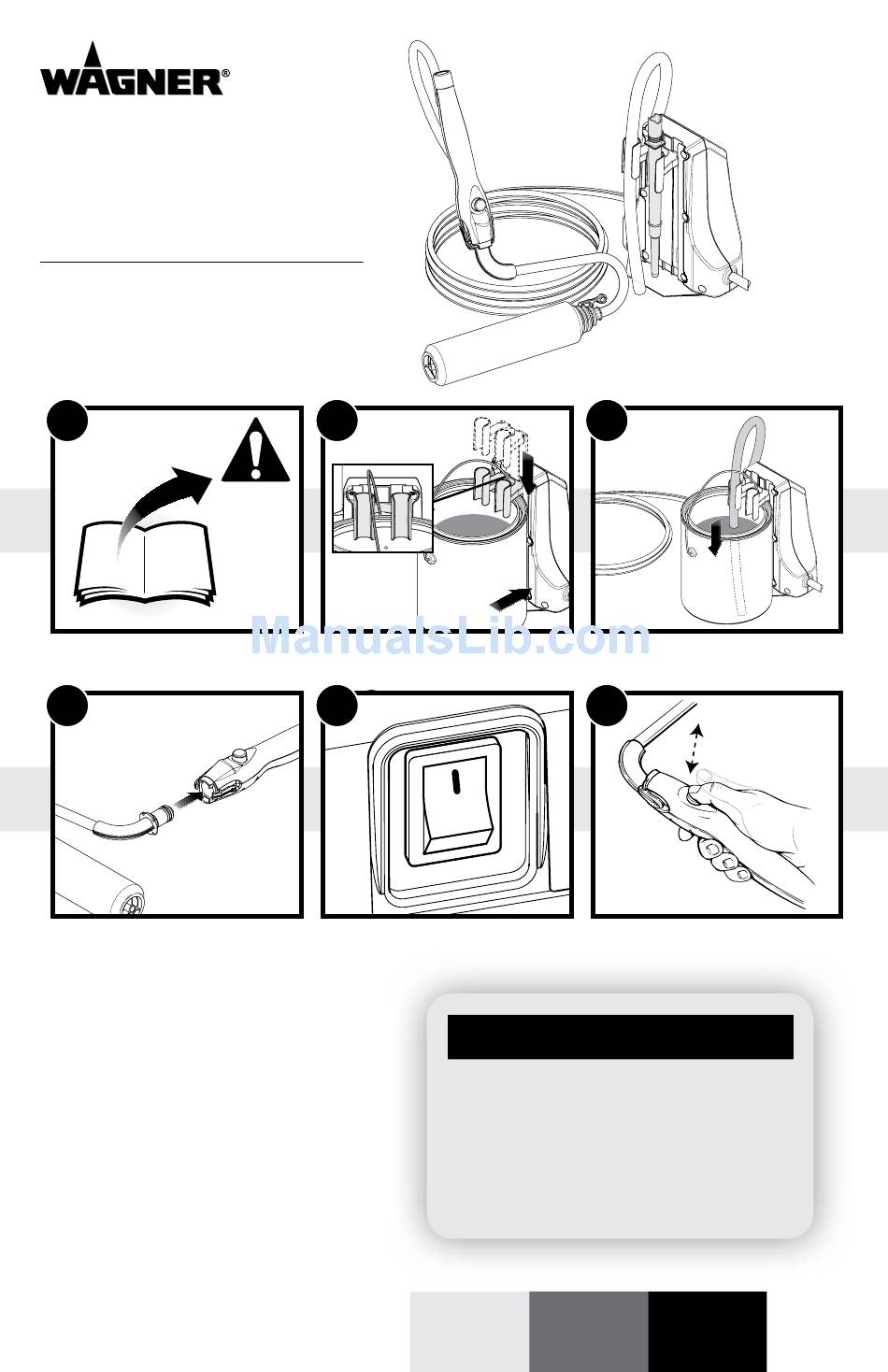

Quick-Start Guide
1
Read all warnings!
4
Attach the roller arm
Contents
Français (page 15) / Español (página 29)
™
2
Secure container to pump
5
Plug in, turn switch on (l)
Questions?
Call Wagner Technical Service at:
1-800-760-3844
Register your product online at:
Español
3
Insert suction tube
6
Press and release to start
• Form No. 0530810C
1213
Français
English
Advertisement
Table of Contents
Related Manuals for WAGNER SideKick
Summary of Contents for WAGNER SideKick
-
Page 1: Table Of Contents
Press and release to start Contents Questions? 2 / 3 Important Safety Information 4 / 5 Parts and Components Call Wagner Technical Service at: 6 / 7 Setup 1-800-760-3844 8 / 9 Practice / Usage 10 / 11 Cleanup 12 Storage / Maintenance Register your product online at: www.wagnerspraytech.com... -
Page 2: Important Safety Information
Be from the work area. The pump contains arcing sure to read this tag before operating the unit. parts which emit sparks. English © Wagner Spray Tech. - All Rights Reserved... - Page 3 Do not use with lacquers, lacquer thinners Grounded Outlet or any other solvent with a flash point below 100° F (38°C). Grounding Pin Cover for grounded outlet box Adapter Metal Screw Tab for Grounding Screw English © Wagner Spray Tech. - All Rights Reserved...
-
Page 4: Parts And Components
Parts and Components English © Wagner Spray Tech - All Rights Reserved... - Page 5 - 3/8” nap roller cover Extension holder ON/OFF switch h2 - Roller cap h3 - Roller core Paint hose Roller handle Roller arm Handle button **Paint can shown for reference only. Not included. English © Wagner Spray Tech. - All Rights Reserved...
-
Page 6: Setup
Power Roller. Note: The SideKick™ Roller can be used with any type of one-gallon or five-gallon paint container. Setup: 1. Pull the suction tube (a) and extension (b) from their place holders. - Page 7 6. If you want to use an extension, a standard, household broom handle or other threaded extension can be threaded into the roller handle as shown. One-gallon Five-gallon English © Wagner Spray Tech - All Rights Reserved...
-
Page 8: Practice / Usage
Tips: • Practice rolling on a scrap piece of wood or cardboard. • Press the handle button to start and stop the pump as needed. English © Wagner Spray Tech - All Rights Reserved... - Page 9 • If you need to stop and take a break; finish painting the entire wall, or stop at a break in the wall such as a doorway or corner to prevent lap marks. English © Wagner Spray Tech. - All Rights Reserved...
-
Page 10: Cleanup
Let the motor run for 15 seconds to push paint from the hoses back into the paint can. Fully press and release the handle button to switch the motor off. 15 SECONDS English © Wagner Spray Tech. - All Rights Reserved... - Page 11 Remove any remaining paint with the appropriate cleaning solution and a damp cloth. IMPORTANT: If you used mineral spirits to clean your unit, you must repeat all the steps on this page using warm, soapy water. English © Wagner Spray Tech - All Rights Reserved...
-
Page 12: Storage / Maintenance
This can be done by using the appropriate cleaning solution and an old toothbrush. Quick-release tabs Connecting area IMPORTANT: Do not submerge roller handle. English © Wagner Spray Tech. - All Rights Reserved... -
Page 13: Troubleshooting
8. Call Customer Service are worn. 9. The pump tube is punctured. 9. Call Customer Service 10. The paint hose is damaged. 10. Call Customer Service * Replacement parts available by calling customer service English © Wagner Spray Tech. - All Rights Reserved... -
Page 14: Www.wagnerspraytech.com
This product, manufactured by Wagner Spray Tech Corporation (Wagner) is warranted against defects in material and workmanship for one year following date of purchase if operated in accordance with Wagner’s printed recommendations and instructions. This warranty does not cover damage resulting from improper use, accidents, user’s negligence or normal wear. -
Page 15: Parts List
--------- Pump Pompe Bomba 0530554 Strap (not shown) Courroie (non représentés) Correa (no ilustrado) (**) --------- For reference only À titre de référence Sólo para referencia seulement Français Español English © Wagner Spray Tech - All Rights Reserved... -
Page 16: Optional Accessories
0514230 Spatter guard Garde-éclaboussures Protección contra salpicaduras * Must be used along * Doit être utilisé avec la * Se debe usar junto con with 0530217A pièce 0530217A 0530217A Français English Español © Wagner Spray Tech - All Rights Reserved...
