User's Guide
SX8634/35/44/45 Evaluation Kit
ADVANCED COMMUNICATIONS & SENSING

5.2 File Menu

File menu contains general purpose functions. Most of them can also be accessed on the toolbar by clicking directly
on the icon.

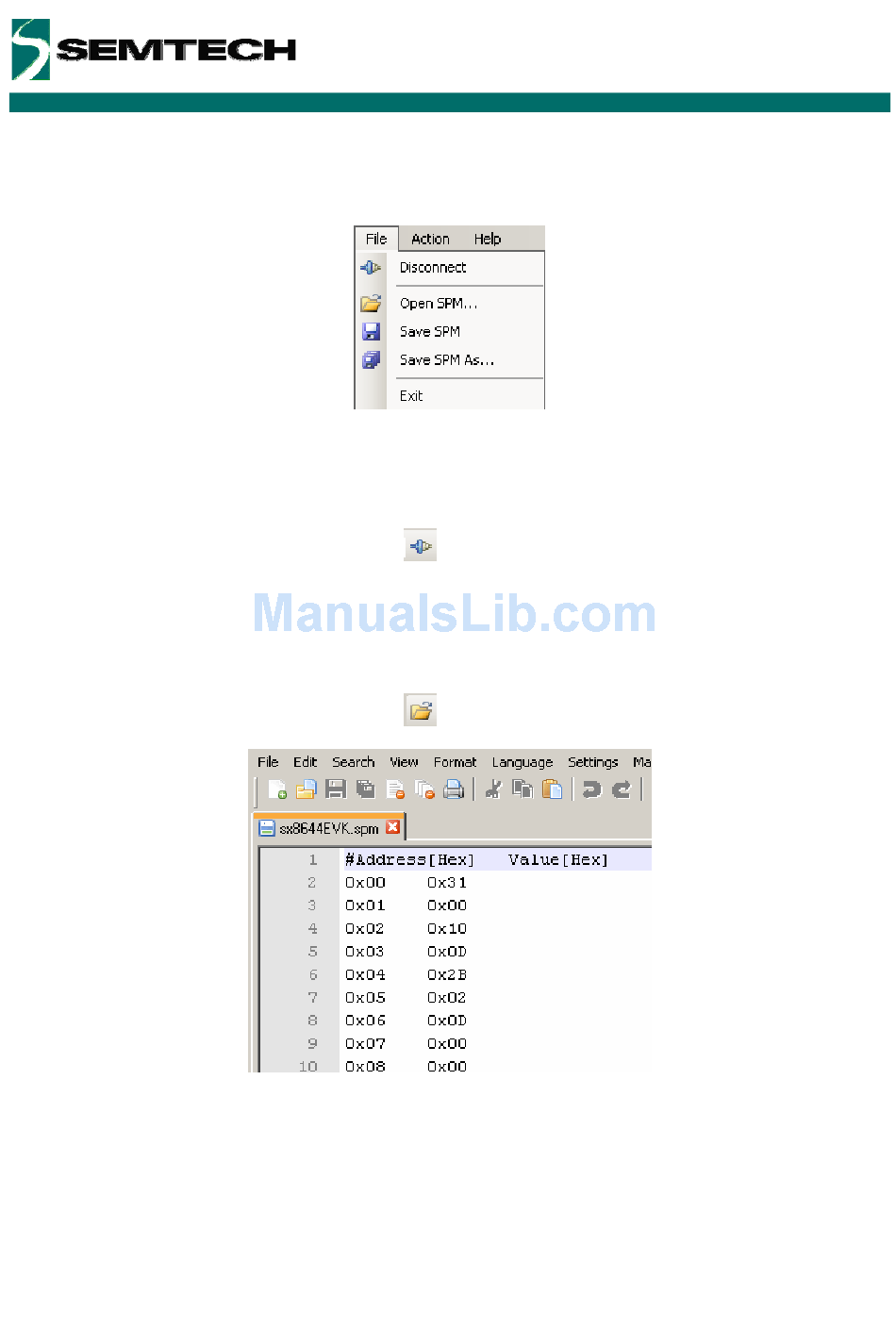

Figure 26: File Menu

5.2.1 Connect/Disconnect

This item is used to connect/disconnect the GUI to/from the EVK.
The icon and name of the menu item dynamically changes depending on the current connection state.
This feature is also available directly on the toolbar.

5.2.2 Open SPM

The GUI offers the possibility to save/load the SPM parameters into/from a file.
The "Open SPM" feature reads a SPM file, stored on the PC, and copies the content to the SPM of the SX863x/4x.
This feature is also available directly on the toolbar.

Figure 27: SPM File Example (begin)

The SPM files contain 128 data bytes for the address 0x00 to 0x7F.
The end of the SPM file is shown below.
Rev 0.9 – September 2010 25 www.semtech.com
