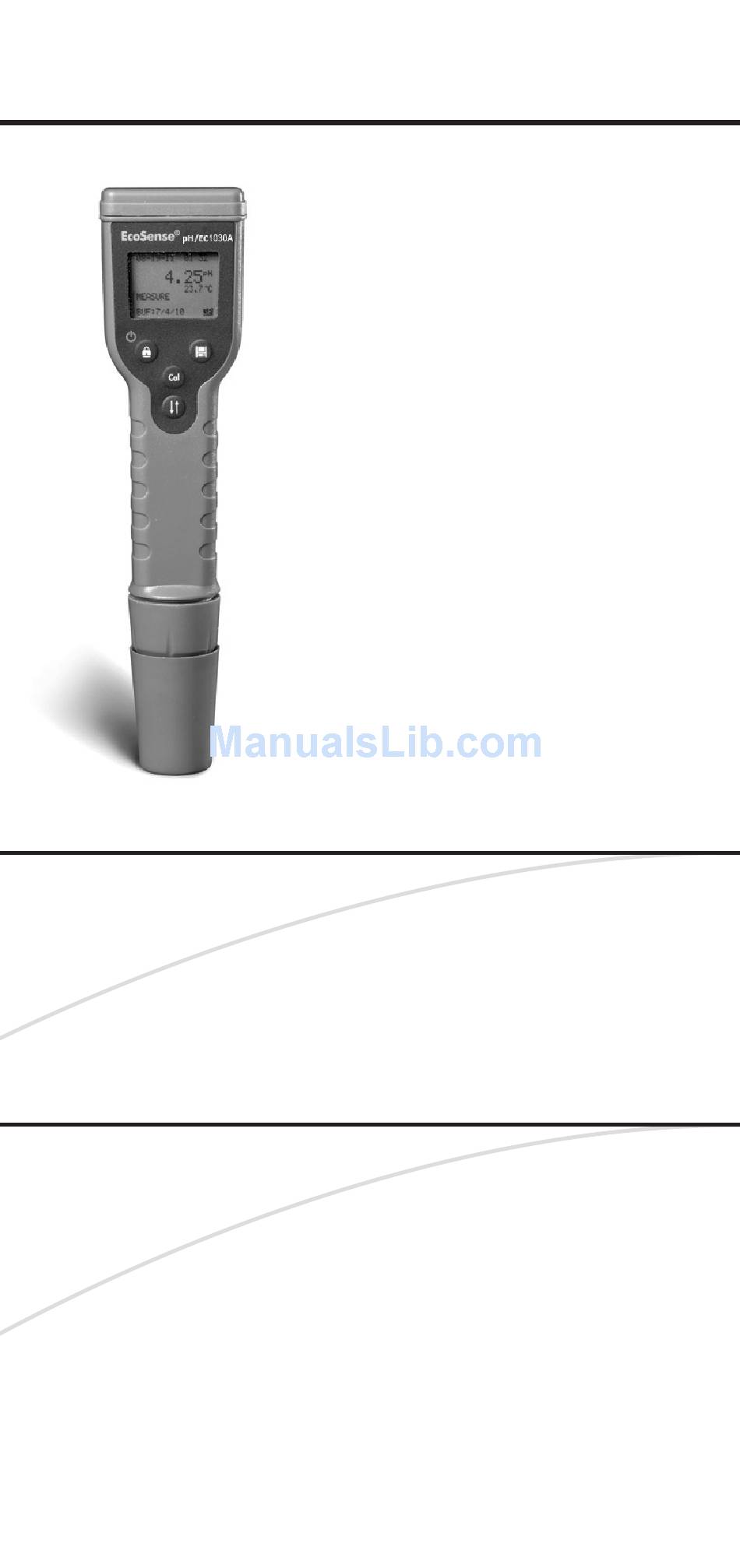

- Page 1 User Manual DOCUMENT #606182 ® EcoSense pH/EC1030A pH, Conductivity, TDS, Salinity, and Temperature Pen U S E R MA N UA L...
-
Page 2: Table Of Contents
Contents Initial Inspection and Assembly Before First Use A. Install the Batteries B. Soak the Electrode C. Setup and Calibrate the Electrode and Meter Instrument Overview A. Meter and Keypad Description B. Display C. Operation Modes Using the pH/EC1030A A. Power ON/OFF B. -
Page 3: Initial Inspection And Assembly
I N I T I A L I N S P E C T I O N A N D A S S E M B L Y Carefully unpack the instrument and accessories, and inspect for shipping damages. Notify your local dealer or YSI immediately (+1 937-767-7241 or info@ysi.com) of any damages or missing parts. Save packing materials until satisfactory operation is confirmed. -
Page 4: Instrument Overview
I N S T R U M E N T O V E R V I E W A. Meter and Keypad Description Battery cap Graphic LCD Screen Keypad Belt clip (Do not remove screw) Electrode collar EcoSense EC 1030A ®... -
Page 5: Operation Modes
C. Operation Modes The pH/EC1030A has 6 operation modes: Measure Mode is used to make pH/conductivity/TDS/ salinity/temperature measurements. Calibration Mode is used to perform 1, 2 or 3 point pH calibration and conductivity calibration. Hold Mode is used to display held measured values for increased ease of use. -
Page 6: Conductivity Calibration
Note: There is no need to repeat this procedure every time unless one decides to change the buffer settings. pH Calibration With pH on the display, press the “Mode” key for 2 seconds to enter the “pH Calibration Mode”. Immerse the electrode into either pH 7.00 or 6.86 buffer solution, depending on the Buffer Set selected. - Page 7 Conductivity Calibration Press “Mode” key to enter the “Conductivity Measure Mode”. The units will be in μS/cm or mS/cm. Clean and immerse the probe (at least 2” to 3” or 5 to 7 cm from the tip) into standard solution without touching the sides of the calibration container.
-
Page 8: Measure
indicate a successful calibration. Conductivity calibration is now complete and the unit will automatically switch to the “Conductivity Measurement” mode. E. Measure In the “Measure Mode”, dip the meter into the test solution. Press “Mode” key to select: pH/Temperature, Conductivity/ Temperature, TDS/ Temperature and Salinity/Temperature. -
Page 9: Maintenance
"coin cell" battery that must be in place for continuity of power to memory devices on the board. This battery is not user serviceable or replaceable. When appropriate, an authorized YSI service center will remove this battery and properly dispose of it, per service and repair policies. - Page 10 Display Main Secondary Possible cause(s) Mode Display Display [Action(s)] Offset @ 7.00pH: mV>100mV; Offset@6.86pH: 0.0 to mV>91.7mV; New slope> UNDR 60.0 °C ideal slope by +30% [Use a new buffer solution.] [Replace electrode.] Offset @ 7.00pH: Calibration mV< -100mV; Offset@6.86pH: mV<-108.7mV;...
-
Page 11: Specifications
S P E C I F I C A T I O N S Parameter Range Resolution Accuracy 0.00 to 0.01 pH ±0.2 pH 14.00 pH Conductivity 0 uS/cm to 1 uS or 0 to 10,000 uS/cm: 20.00 mS/cm 0.01 mS ±1%FS >10,000 uS/cm: ±3%FS... -
Page 12: Warranty
Within the warranty period, YSI will repair or replace, at its sole discretion, free of charge, any product that YSI determines to be covered by this warranty. To exercise this warranty, write or call your local YSI representative, or contact YSI Customer Service in Yellow Springs, Ohio.
