V100 series

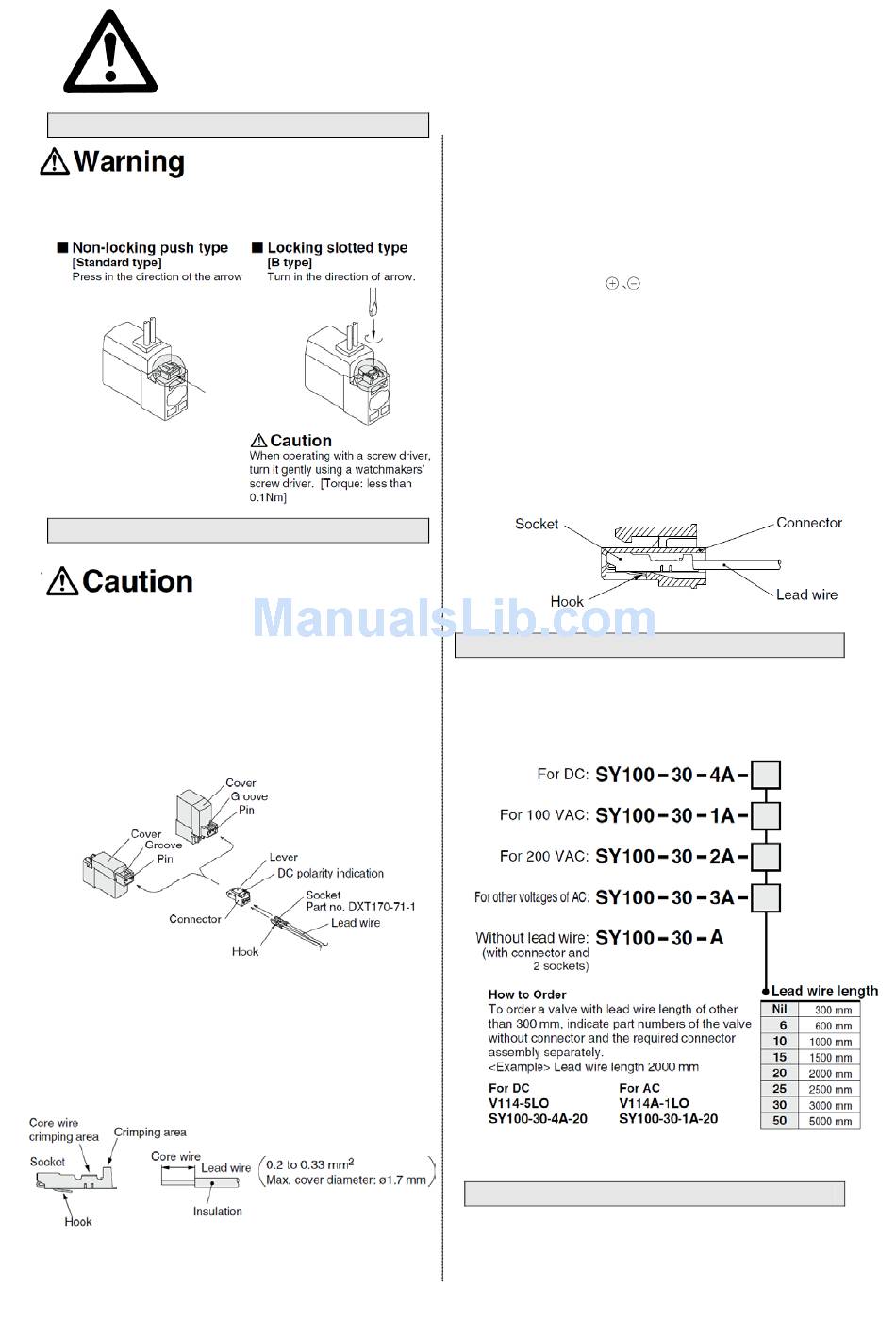

Specific Product Precautions 1

Be sure to read this before handling the products.
Manual Override Operation
Since connected equipment will be actuated when the
manual override is operated, first confirm that conditions
are safe.
How to Use of Plug Connector
1. Attaching and detaching connectors
・
To attach a connector, hold the lever and
connector unit between your fingers and insert
straight onto the pins of the solenoid valve so that
the lever's pawl is pushed into the groove and
locks.
・
To detach a connector, remove the pawl from the
groove by pushing the lever downward with your
thumb, and pull the connector straight out.
2. Crimping of lead wires and sockets
Strip 3.2 to 3.7 mm at the end of the lead wires, insert
the ends of the core wires evenly into the sockets, and
then crimp with a crimping tool. When this is done, take
care that the coverings of the lead wires do not enter
the core wire crimping area. Use special tool when
crimping. (Consult with SMC for the crimping tool.)
3. Attaching and detaching lead wires with
sockets
・
Attaching
Insert the sockets into the square holes of the
connector (
push the sockets all the way in until they lock by
hooking into the seats in the connector. (When
they are pushed in, their hooks open and they
are locked automatically.) Then confirm that they
are locked by pulling lightly on the lead wires.
・
Detaching
To detach a socket from a connector, pull out the
lead wire while pressing the socket's hook with a
stick having a thin tip (about 1 mm). If the socket
will be used again, first spread the hook outward.
Plug Connector Lead Wire Length
Standard length is 300 mm, but the following length is
also available.
How to Order Connector Assembly
SMC's Lead Wire Specifications
Cover diameter: 1.55 mm
Conductor area: 0.3 mm2 (AWG22 equivalent)
- 9 -
indication), and continue to
