2 Introduction
2.3.2.3 NetCom Plus 211 Two Ports.
Power Requirement
Power Connector
Serial Ports
Serial Speed
Data bits
USB Port
Dimensions
Weight
2.3.2.4 NetCom Plus 213 Two Ports.
Power Requirement
Power Connector
Serial Ports
Serial Speed
Data bits
USB Port
Dimensions
Weight

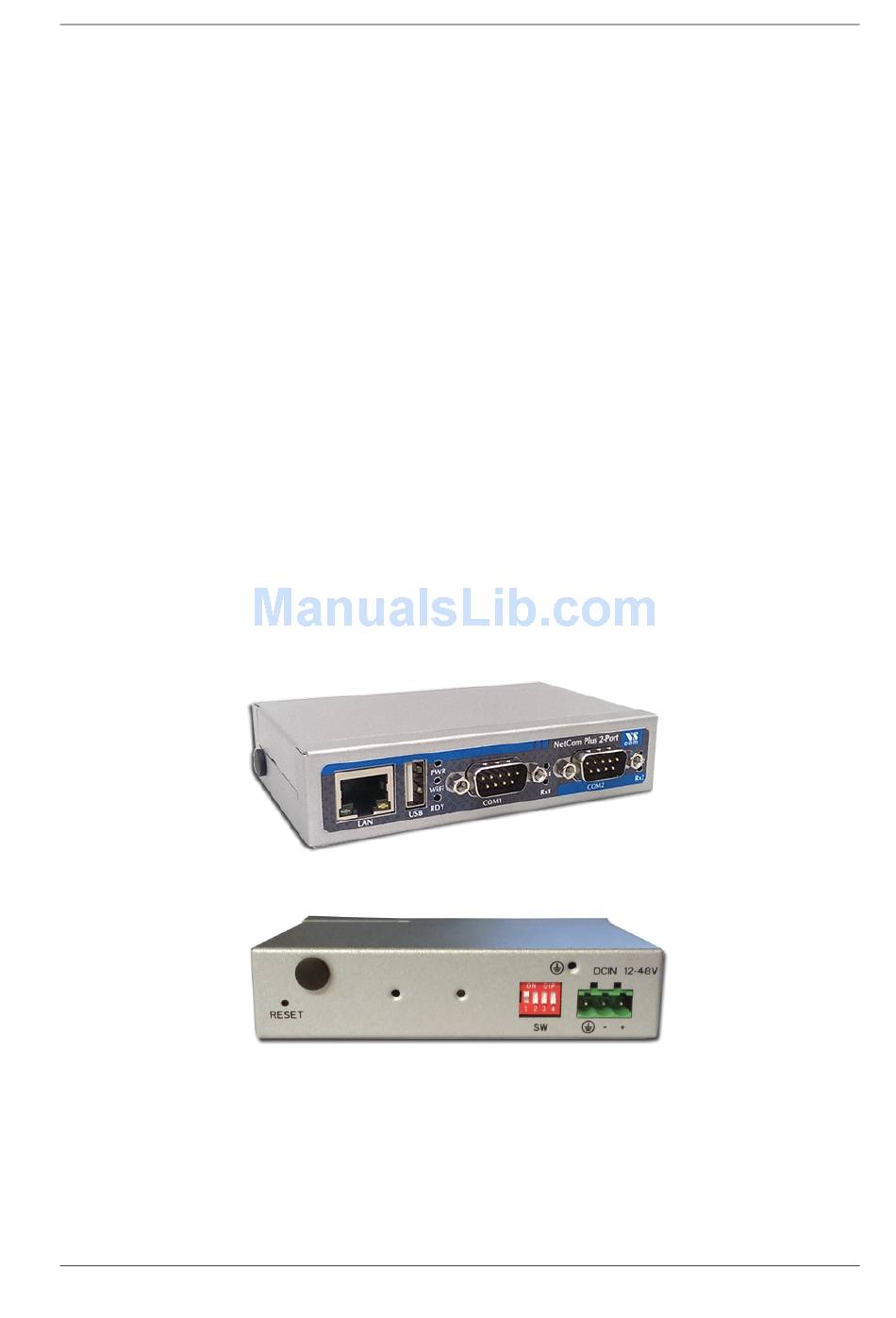

Figure 2: NetCom Plus 213 Top, Front, Left and Back Side
The NetCom Plus 211 and the NetCom Plus 213 look the same on the front side. Here are the
connectors for Ethernet, USB 2.0, LEDs and the serial ports. The rear side holds the power
September 2016
DC 9V to 54V, 250 mA@12V
Terminal Block (3.7.1)
2×RS232
180 bps up to 1.0 Mbps
5, 6, 7, 8
For Expansion of Ports and WLAN
115×73×25 mm (W×D×H)
400 g
Table 4: Characteristics of NetCom Plus 211
DC 9V to 54V, 250 mA@12V
Terminal Block (3.7.1)
2×RS232/RS422/RS485
180 bps up to 3.7 Mbps
5, 6, 7, 8
For Expansion of Ports and WLAN
115×73×25 mm (W×D×H)
400 g
Table 5: Characteristics of NetCom Plus 213
(a) Top, Front and Left Side
(b) Rear Side
NetCom Plus User Manual 15
