- Page 1 B 400 OPERATING MANUAL HUMIDIFIER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the are damaged! operating manual must be observed. • The electrical connection must correspond to the specifications in chapter Technical data. • Insert the mains plug into a properly secured mains socket. Operating manual – humidifier B 400... - Page 3 Note Do not operate the device without inserted evaporation mats! Without evaporation mats, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. Operating manual – humidifier B 400...
-
Page 4: Information About The Device

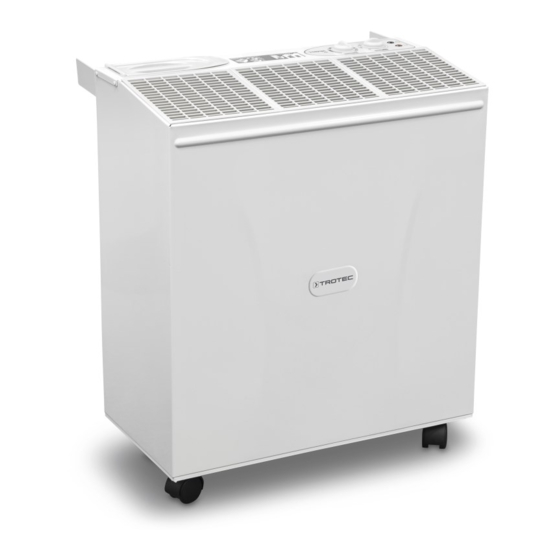

Control dial HYGROSTAT lights up. Rotary switch FAN SPEED Device depiction Operation indicator light Water tank indicator light Housing Wheels Air outlet with cover grilles Water funnel Water tank Air inlet Drum with evaporation mats Operating manual – humidifier B 400... -
Page 5: Transport And Storage
• Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service. • Set the device up in an upright and stable position. Operating manual – humidifier B 400... - Page 6 Make sure the pinion interlocks with the drum's gearing! Otherwise, device and drum might be damaged. 3. Fill the water tank (9) with fresh drinking water only. ð Quit filling at about 2 cm below the tank's water level mark. Operating manual – humidifier B 400...
-
Page 7: Operation
• The device constantly humidifies when you turn the Connecting the power cable HYGROSTAT control dial (1) clockwise all the way to the • Insert the mains plug into a properly secured mains stop. socket. Operating manual – humidifier B 400... -
Page 8: Available Accessories
The operation indicator light must be illuminated in green. • Wait for 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company or by Trotec. Operating manual – humidifier B 400... -
Page 9: Maintenance
Check air inlet grid, cover grille and evaporation mats for dirt and foreign objects and clean or replace if necessary Change evaporation mats Check for damage Check the attachment screws Test run Operating manual – humidifier B 400... - Page 10 11. Date: ......12. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – humidifier B 400...
- Page 11 3. Check the inside of the device for dirt. 4. If you see a thick layer of dust, clean the device interior (see chapter Cleaning the device interior and evaporation mats). 5. Refit the cover grilles. Operating manual – humidifier B 400...
- Page 12 9. Refit the water tank into the device. Make sure not to damage the float when inserting the water tank. 12. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. Operating manual – humidifier B 400...
- Page 13 2. Remove the drum incl. evaporation mats from the device. 6. Clean the evaporation mats by means of a vacuum cleaner and rinse them with drinking water. 3. Clean the device interior with a soft, lint-free cloth. Operating manual – humidifier B 400...
- Page 14 If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. 9. Reinsert the drum and evaporation mats in the device (see chapter Inserting the drum). Operating manual – humidifier B 400...
-
Page 15: Technical Annex
Dimensions 625 x 720 x 316 mm equipment. (width x height x length) Minimum distance to walls and other objects top (A): 30 cm rear (B): 10 cm (recommendation: sides (C): 30 cm) front (D): 30 cm 30 cm Weight 18.6 kg Operating manual – humidifier B 400... - Page 17 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
