Computer System Requirements
Supported Systems
Operating System: Windows 7/8/10
l
USB:USB 2.0 and later
l
Minimum Requirements
Processor: Core i5 at 2.7 GHz
l
RAM: 4 GB
l
Free Hard Disk Space on C: drive: 20 GB
l

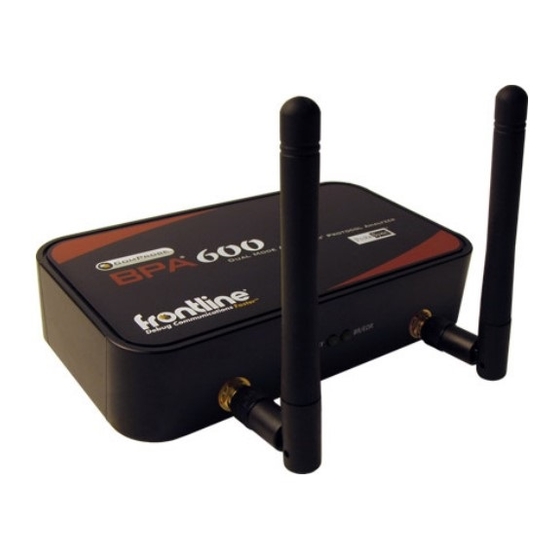

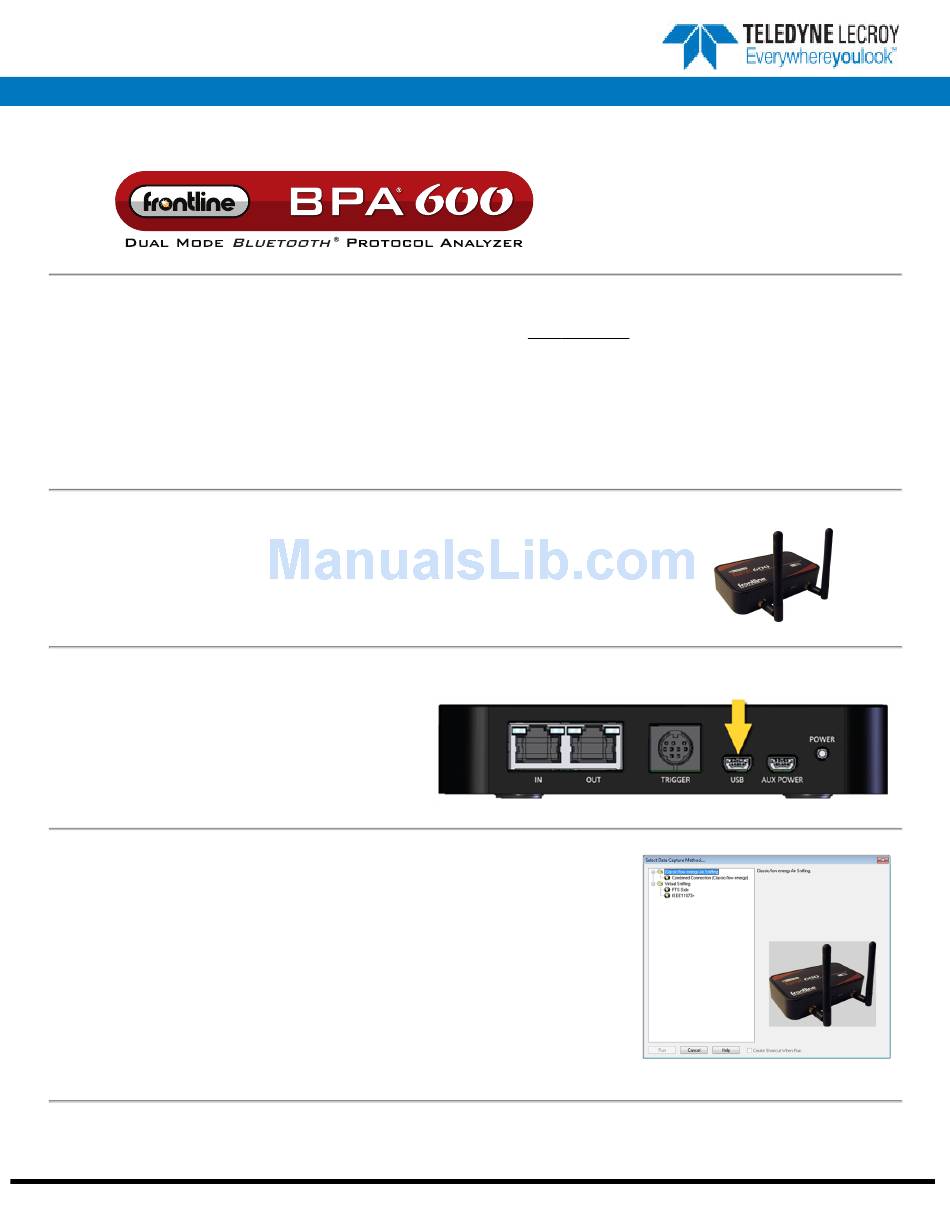

1. Attach Antennas
Remove the ComProbe BPA 600 hardware from the box and attach the antennas to the two SMA connectors as
shown. To ensure all sniffing scenarios are covered, connect both antennas.
2. Apply Power
Insert the USB cable between the ComProbe BPA 600
rear-panel USB port and your computer USB 2.0 port. The
computer USB port provides the only power needed by
BPA 600 hardware. The rear-panel POWER LED will
illuminate when the hardware is receiving adequate
power.
3. Select Data Capture Method
Open "Frontline ComProbe Protocol Analysis System [version#] from your computer
l
Start menu or from the Desktop folder.
If using the desktop folder ensure that it is pointing to the latest ComProbe
o
software version.
Select "Frontline ComProbe Analysis System".
l
In the
Select Data Capture Method...
l
, then click on the
energy (BPA 600)
Frontline Technical Support: Phone +1-434-984-4500 or email tech_support@fte.com
Install Software
window click on
Bluetooth Classic/low
button. The analyzer software will begin.
RUN
Quick Start
From Download: Download the latest ComProbe installer
l
from FTE.com. Once downloaded, double-click the
installer and follow the directions.
http://www.fte.com/bpa600-soft
Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teledyne Lecroy BPA 600
Summary of Contents for Teledyne Lecroy BPA 600
- Page 1 Free Hard Disk Space on C: drive: 20 GB 1. Attach Antennas Remove the ComProbe BPA 600 hardware from the box and attach the antennas to the two SMA connectors as shown. To ensure all sniffing scenarios are covered, connect both antennas.
- Page 2 BD_ADDR that will also be saved in the device database. Roleless Connection: In Classic Bluetooth BPA 600 will automatically detect the master and slave devices in a link. This applies to BPA 600 Classic only Single Connection, Dual Mode, and Classic Only Multiple Connection modes.
- Page 3 Packet Error Rate (PER) Stats - displays information about levels of retransmits used for isolating bad communications links. This quick start guide provides sufficient information to begin the data capture. Detailed hardware and software information is contained in the ComProbe BPA 600 User Manual. The manual is available on FTE.com. © 2017 Teledyne LeCroy, Inc.
