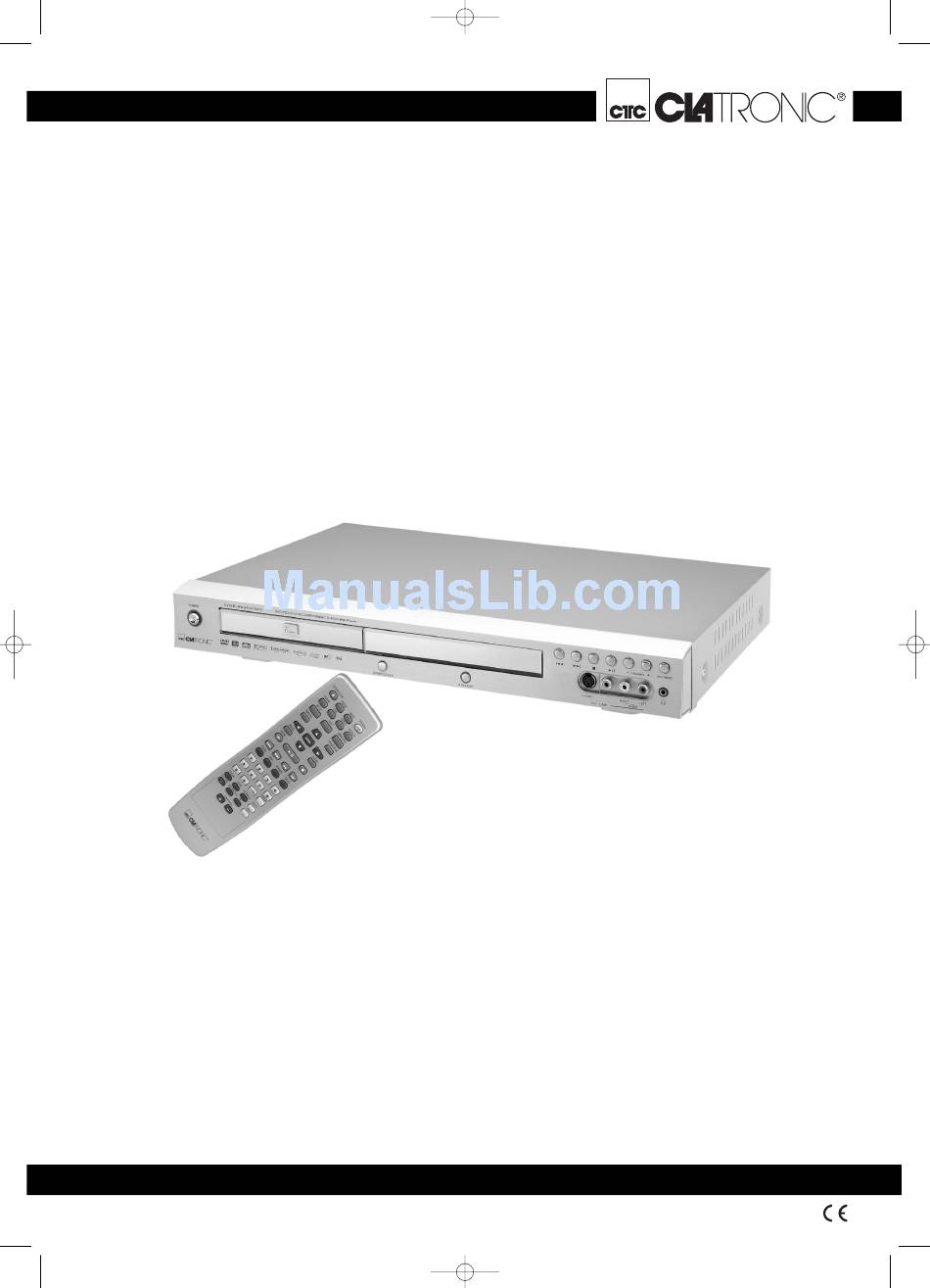

- Page 1 DVD-R 612 - GB 29.01.04 16:30 Uhr Page 1 DVD PLAYER/RECORDER...
-
Page 2: General Information
There is no ShowView, VPS or DV-IN "NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS." function for the model DVD-R 612. "THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THEAPPARATUS."... -
Page 3: Notes On Disc
General Information (Continued) Accessor Accessor Accessor Accessor Accessor y y y y y Notes on disc Check that you have the following items: Disc handling precautions • To keep the disc clean, handle the disc by its edge. Do not touch •... -
Page 4: Front Panel
Press to select previous TV channel RECORD CHANNEL(+) Press to record. Press to select next TV channel. DV IN Not for the model DVD-R 612 Connect the audio/video (game console ,camcorder,etc.) REC MODE S-VIDEO IN Select the record mode. S-video input jack... - Page 5 1 COMPONENT VIDEO OUT SCART IN Component video out jack S-cart in jack If your TV or monitor has COMPONENT VIDEO IN jack , Connect them with a component video cable. 9 SUBWOOFER Connect the Amplifier Sub terminals CVBS IN(VIDEO IN) Video input jack 10 S-VIDEO OUT AUDIO IN(Land R)
-
Page 6: Remote Control
Remote control • SUBTITLE:access various subtitle language in DVD.. • DIRECTION BUTTON:used in DVD menu and Audio CD track selection. • PROG:to program the tracks based on your own order (only VCD and CD) • SLOW:makes the picture forward or backward in slow motion. •... - Page 7 Connect your DVD recorder to TV 1 If your TV set have the SCART socket, Connect your TV with a Scart cable . (configuration C) 1) Insert ANTENNA cable into ANTENNA socket at the back of the DVD recorder 2)Insert one end of the supplied aerial cable to the TV socket at the back of the DVD recorder and the other eand into the aerial input socket at the back of the TV set.
- Page 8 2. If your TV set have the S-Video socket, Connect your TV with a S-Video cable . (Configuration B) 1) Insert ANTENNA cable into ANTENNA socket at the back of the DVD recorder 2)Insert one end of the supplied aerial cable to the TV socket at the back of the DVD recorder and the other eand into the aerial input socket at the back of the TV set.
- Page 9 3. If your TV set have the VIDEO OUT 4. If your TV set have the COMPONENT socket, Connect you TV with a Video VIDEO OUT socket, Connect you TV with cable . Component video cable . (Configuration C) (Configuration D) 1) Insert ANTENNA cable into ANTENNA socket at the back of the 1) Insert ANTENNA cable into ANTENNA socket at the back of the DVD recorder...
- Page 10 Connect your DVD recorder to Connect your DVD recorder to additional devices ,using Video additional devices ,using second socket Scart socket (configuration B/C) (configuration A) You can connect additional devises such as decorders, DVD You can connect additional devises such as decorders, player, etc.
- Page 11 Connect your DVD recorder ana- Connect your DVD recorder the logue Audio sockets to Audio de- digital audio socket to Audio de- vices. vices. (Configuration D) (Configuration E) T Analogue audio sockets AUDIO OUT are located at the back of At ht back of the DVD decorder there are digital output socket the DVD recorder DIGITAL OUT for Optical / coaxial cable .
- Page 12 Connect Camcorder to the front Socket To copy camcorder recordings, you can use the front sockets .These scokets are located behind the flap on the left hand side . Very good picture Quility (Configuration A/C) If you have H18 or S-VHS (c) camcorder , connect the S-Video 2 of the DVD recorder to the S-VHS output on the camcorder.
-
Page 13: Record Program
• BASIC SETUP Play/Edit disc In main setup menu select play/edit disc then press ENTER In the top Menu select the setup menu option to make desired button,the OSD will display as below setup options. Play/Ediit disc Play/Ediit Titles Play/Ediit disc Edit Disc Record Program Record Program... -
Page 14: Record Status
• Record status • How often In this record status page the DVD recorder needs to know Before recording, all recording settings are needed to make how often the desired recording will make. clear. All recording settings are available in the record status page. Here two options are allowed:Repeat and Once The page is below. -
Page 15: Input Source
• Input Source Before a record starts the DVD recorder needs to know which channel the input signal is from.So it is necessary to select the Press enter button to select the days or input signal channel. In record status page move hilight to Source Press enter button twice to desired days and confirm with ENTER button then get into the source page.The source page is below. - Page 16 • Channel If the input signal is TV program, then select channel to set the channel for DVD recorder to record.The channel contains TV channels from 1 to 50.The channel page is below Press Or use the number keys on Remote to change settings Done Channel...
-
Page 17: Setup Menu
• Record list In this recording setup menu all setting information in detail is below: All recording programmes will be listed in My record list. In this record list you can delete any program desired by • Recording quality press the CLEAR button on your remote control. Quality setting for recording clips.Each recording quality includes both Recording quality and Recording time.The longer time the recording has, the lower recording quality it will be.While which... -
Page 18: Dvd Control
Basic Setup(continue) • Channel List Channel setup • After scanning for channels ,you have the option of disabling Use this page to select an automatic scan of all the channels channels you are not interested in watching and selecting favorite present at the antenna or to choose the channel setup option to channels that are easy to select. -
Page 19: Angle Mark
Choose country • Angle mark Use to access various camera angles on a DVD. Delete Clear The options are: ON or OFF. 0 1 2 3 4 5 6 7 8 9 a b c d e f g h I m n o p q r s t •... -
Page 20: Set Password
Choosing Rating Set password 1)Press setup button on your remote control and then get into the 1)Press setup button on your remote control and then get into the top menu. top menu. 2)Use down or up direction button to move the hilight to setup menu then use right direction button to enter into the setup menu 2)Use down or up direction button to move the hilight to setup page. - Page 21 Delete Clear 1 2 3 4 5 6 7 8 9 b c d e f g h I m n o p q r s t x y z space Done Cancle Press setup to exit Notice: In the password enteries page when you want to delete the former number or character you have entered just move the hilight to delete and confirm it by pressing enter button, while if you want to clear the whole password just move the hilight to...
-
Page 22: General Setup
GENERAL SETUP VIDEO setup Setting the TV display Press SETUP ,then Use to enter SETUP MENU. you can select the aspect ratio of the TV to be connected to select the General . Press ENTER to confirm a highlighted selection. To exit setup menu, press SETUP. -
Page 23: Setting The Color System
Setting the color system Video output You can setup the colour system of this unit to match up your con- nected TV set. If the colour system of this unit is different from that of the TV set, the images can not be displayed normally on the screen. The default setting is PAL. -
Page 24: Setting Speaker
Setting speaker Center Delay Down MIX To play a DVD disc recorded with surround multi-channel audio Selects the center Chanel delay time for Doby Digital audio .the correctly, select either one according to your audio system. Options are 5 ft,4 ft,3 ft,2 ft,1 ft off. Stereo Down Mix Down Mix... -
Page 25: Audio Setup
Audio setup Digital out : Select the audio output format Digital out a.off Full b.on 3 / 4 1 / 2 1 / 4 Digital out Press Setup to exit Curr ent selection • FULL: Audio with fully compressed dynamic range. •... - Page 26 Recording Part Record a program Recording to 120 MIN This DVD recorder is making your life more convinient and more colorful. You can make a record for the progarmmes what you are interested in. Record without show view functioin Besides show view function record this DVD recorder can also have a real time record.
-
Page 27: One Touch Recording (Otr)
Recording to 120 MIN One Touch Recording(OTR) Use this function to make a one touch recording which means that the recording quality is not needed to set for record.During the recording you are allowed to press the RECORD button on your remote control or on the front panel to have a duration of recording from 30mitutes to 120 minutes. -
Page 28: Playing Discs
Playing Discs General operation Repeat A - B When you complete all the connections, plug the AC power cord This function can play a specific section in a chapter/track repeat- of the player edly. Press POWER to switch ON the main power. Press A - B at the statring portion you want. -
Page 29: Playing Video Cds With Pbc
Using the menu for each DVD Playing Video CDs with PBC Using the title menu When playing Video CDs (Version 2.0) with PBC functions, you can Press the TITLE while playing a DVD disc. enjoy simple interactive operations, operations with search func- The TITLE MENU will be shown on TV screen for a moment, and tions, etc. -
Page 30: Checking The Information
Checking the information When playing back a MP3 You can check information about the disc, such as the total number of Press the DISPLAY repeatedly to show on TV screen as the the titles or chapters or tracks or time, using the Display function. The following: information you want appears on the TV screen or/and on the front The display will disappear after a few seconds. -
Page 31: Program Play
Program play Selecting the start time You can play the contents of the disc in the order you want by This function allows you to start playing at any chosen time on the programming the order of the tracks to be played. UP to 99 tracks can disc. - Page 32 After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. D-47906 Kempen/Germany · Industriering Ost 40 Internet: http://www.clatronic.de · email: info@clatronic.de...
