QT-2100 master/satellite system (with remote printer)

QT2000
R/J
R/J
PRN (1)...PRN (3)
QT-2100 Installation & Down Recovery Manual
3. Initialize QT-2100 terminals one by one.
Note:
When you want to copy master program to satellites,
complete the master program, and then initialize the satel-
lite and receive the master program during initialization
procedure of satellites.

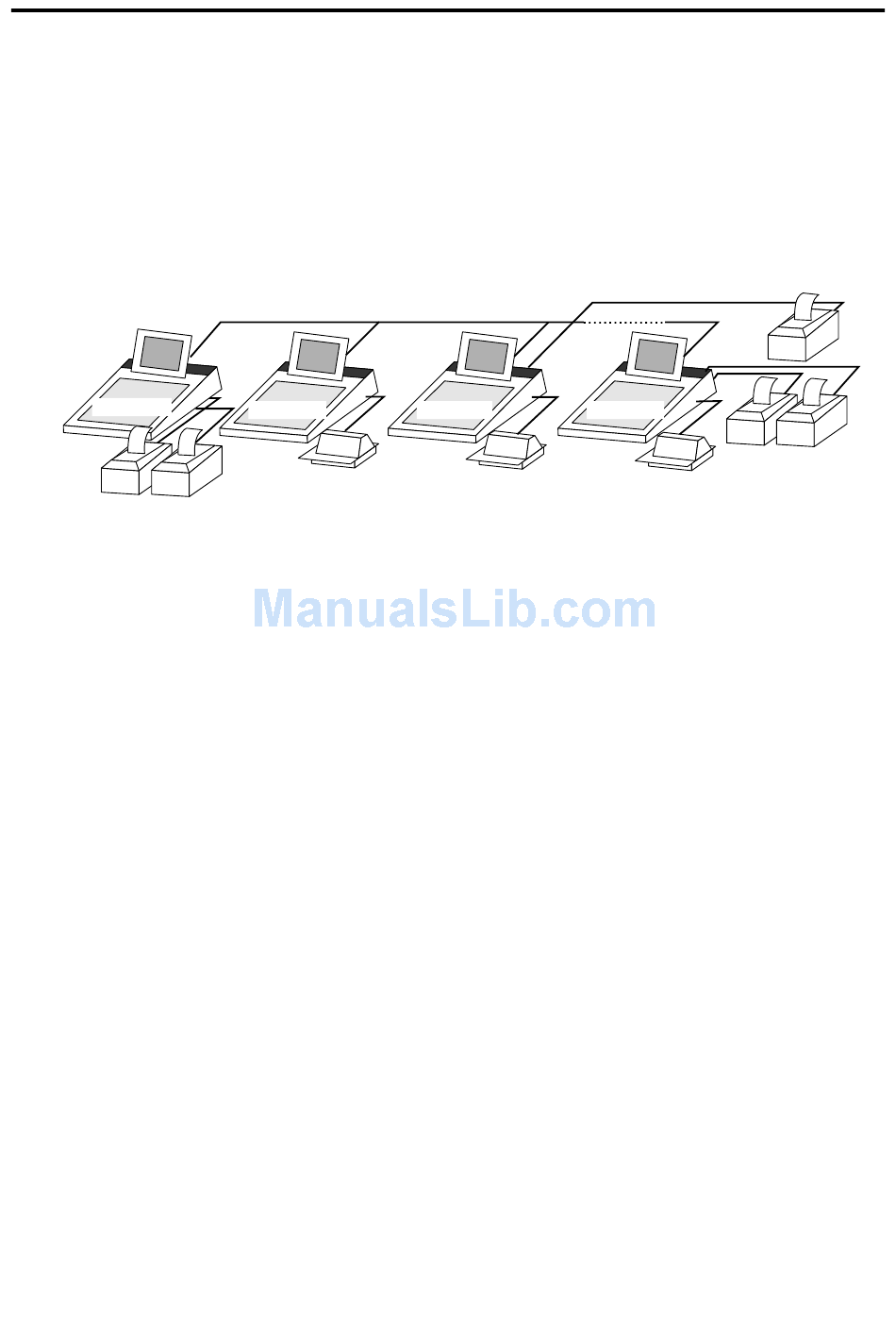

1. Set up the system (refer to the figure below).
In-line
QT2000 QT2000
Slip
2. Initialize the master QT-2100 (refer to the Initialization chap-
ter of QT-2100 Programming manual page 8.)
Note 1:
1. Do not turn on other QT-2100.
2. If the QT-2100 cannot recognize the local printer(s) cor-
rectly, check the dip switches on the printer or printer
cable and try initialization operation again. Casio printer
cable (PRT-CB-8A/-8B) is required for proper recognition
of the local printer.
Note 2:
If the Slip printer is connected to COM 4, 5, or 6 port,
automatic printer detection during initialization is not
made. In this case, program the I/O parameter file manu-
ally and flag clear the machine.
3. Initialize QT-2100 terminals one by one.
Note:
When you want to copy master program to satellites,
complete the master program first, and then initialize the
satellites and receive the master program at the end of
initialization procedure of satellites.
4. Declare remote printer by programming the printer connection
table to all terminals in the system (refer to the Programming
printer connection section in the Program 3 chapter of the
Programming manual page 70.)
QT2000
Slip
Slip
RP
RP
RP
PRN (1)...PRN (3)
