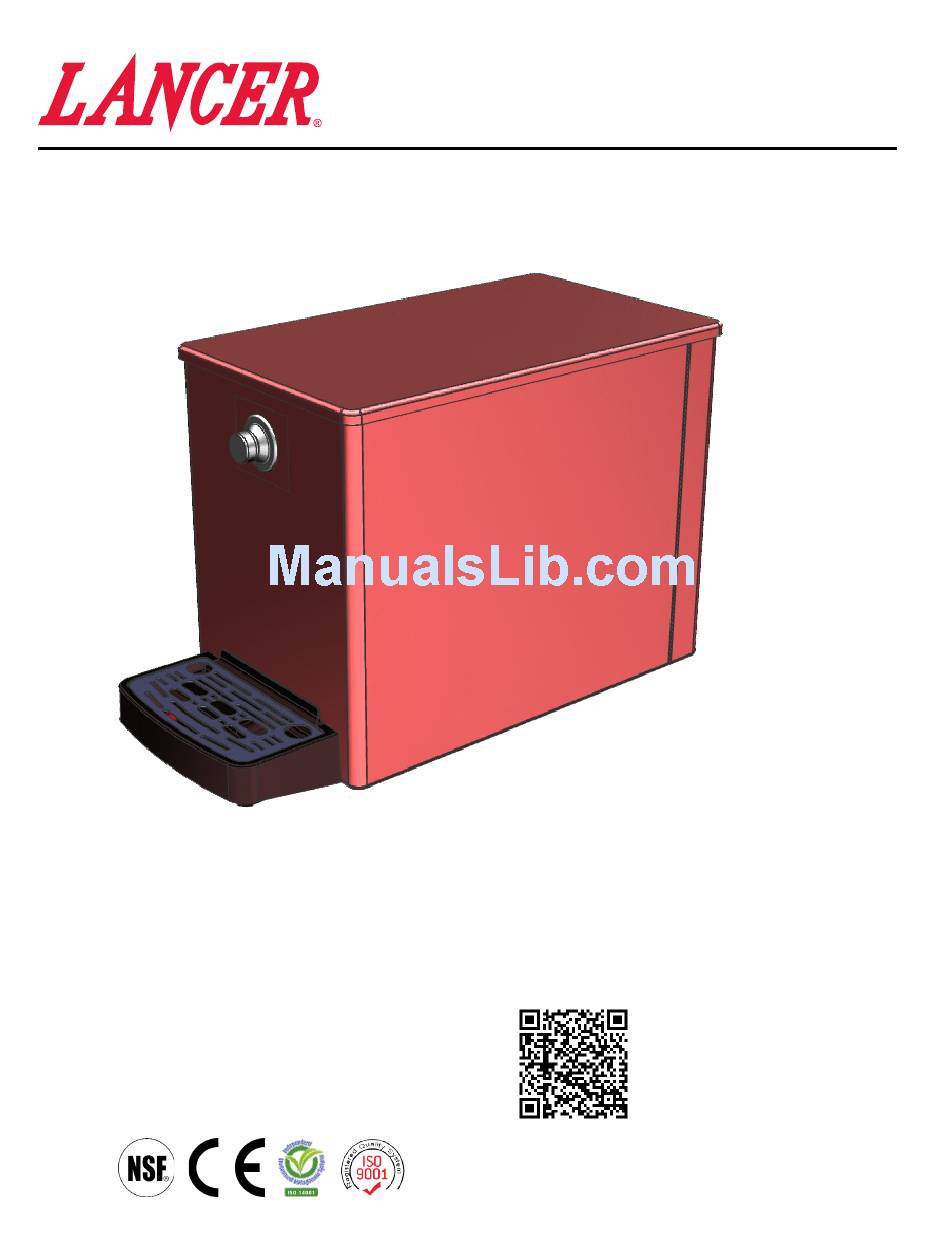

Breeze Beer Dispenser
Installation and Operation Manual
PN: 28-0940
Lancer Corp.
6655 Lancer Blvd.
San Antonio, Texas 78219
Please refer to the Lancer Corp website (lancercorp.com) for
800-729-1500
information relating to Lancer Installation/Operation Manuals,
Technical Support/Warranty: 800-729-1550
Installation Guides, Instruction Sheets, and Technical Bulletins or
for your convenience, scan this QR code with a mobile device (app
custserv@lancercorp.com
required) for immediate access to other Technical Documents and
lancercorp.com
alternative translations pertaining to this unit.
Manual PN: 28-0940
September, 2014
FOR QUALIFIED INSTALLER ONLY
CP-09
"Lancer" is the registered trademark of Lancer © 2014 by Lancer, all rights reserved.
Advertisement
Table of Contents
Related Manuals for lancer 28-0940
Summary of Contents for lancer 28-0940
- Page 1 Technical Documents and lancercorp.com alternative translations pertaining to this unit. Manual PN: 28-0940 September, 2014 FOR QUALIFIED INSTALLER ONLY CP-09 “Lancer” is the registered trademark of Lancer © 2014 by Lancer, all rights reserved.
-
Page 2: Table Of Contents
ABOUT THIS MANUAL This booklet is an integral and essential part of the product and should be handed over to the operator after the installation and preserved for any further consultation that may be necessary. Please read carefully the guidelines and warnings contained herein as they are intended to provide the user with essential information for the continued safe use and maintenance of the product. -
Page 3: Specifications
BREEZE BEER DISPENSER SPECIFICATIONS DIMENSIONS WEIGHT PRODUCT SUPPLY Width: 11.57 inches (293.87 mm) Shipping: 55 lbs (24.95 kg) Minimum pressure: Depth: 19.77 inches (502.17 mm) Empty: 50 lbs (22.68 kg) 42 PSI (0.289 MPA) Height: 15.54 inches (394.71 mm) Maximum pressure: Depth w/ Dip Tray: 24.87 inches 46 PSI (0.317 MPA) (631.70 mm) -
Page 4: Pre-Intallation Checklist
PRE-INSTALLATION CHECKLIST BEFORE GETTING STARTED Each unit is tested under operating conditions and is thoroughly inspected before shipment. At the time of shipment, the carrier accepts responsibility for the unit. Upon receiving the unit, carefully inspect the carton for visible damage. If damage exists, have the carrier note the damage on the freight bill and file a claim with carrier. -
Page 5: Warnings/Cautions
WARNING/ADVERTENCIA/AVERTISSEMENT This unit is not a toy. Children should be advised not to play with appliance. It should not be used by children or infirm persons without supervision. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 6: Selecting Counter Location
SELECTING COUNTER LOCATION Connecting lines can be run through the front of the unit and can extend down through a counter cutout. Select a level, well ventilated, accessible location away from direct sunlight (avoid) or overhead lighting. The selected location should be able to support the weight of the unit with the ice after counter cut out is made (if applicable). -
Page 7: Cleaning And Sanitizing Instructions
If other equipment is being cleaned, follow the guidelines established by the manufacturer for that equipment. B. Lancer equipment (new or reconditioned) is shipped from the factory cleaned and sanitized in accordance with NSF guidelines. The equipment must be cleaned and sanitized after installation is complete. -
Page 8: Daily Cleaning
SEPTIQUE.EN CAS DE APRÈS-GOÛT, NE PURGER AVEC LE PRODUIT FINAL UNE EXIGENCE NSF. CLEANING AND SANITIZING PRODUCT COMPONENTS Lancer recommends regular maintenance and sanitization of product lines. Beer lines and taps should be routinely cleaned as recommended by the local authorities, beer manufacturer or manufacturer of the chemical cleaner used. -
Page 9: Illustrations And Part Listings
5. ILLUSTRATIONS AND PARTS LISTINGS EXPLODED VIEW Item Part No. Description 30-11859 Cup Rest, Breeze Beer 01-2976 Elbow, Connector, JG, 3/8”X5/16” 05-3266 Drip Tray, Breeze Beer 04-1682 (2) Screw, M4-0.7X4.5, 4.5 Shoulder, FHD, PH, SS 30-11833 Lid, Metal, Breeze Beer... - Page 10 NOTES...
- Page 11 INTENTIONALLY LEFT BLANK...
- Page 12 Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
