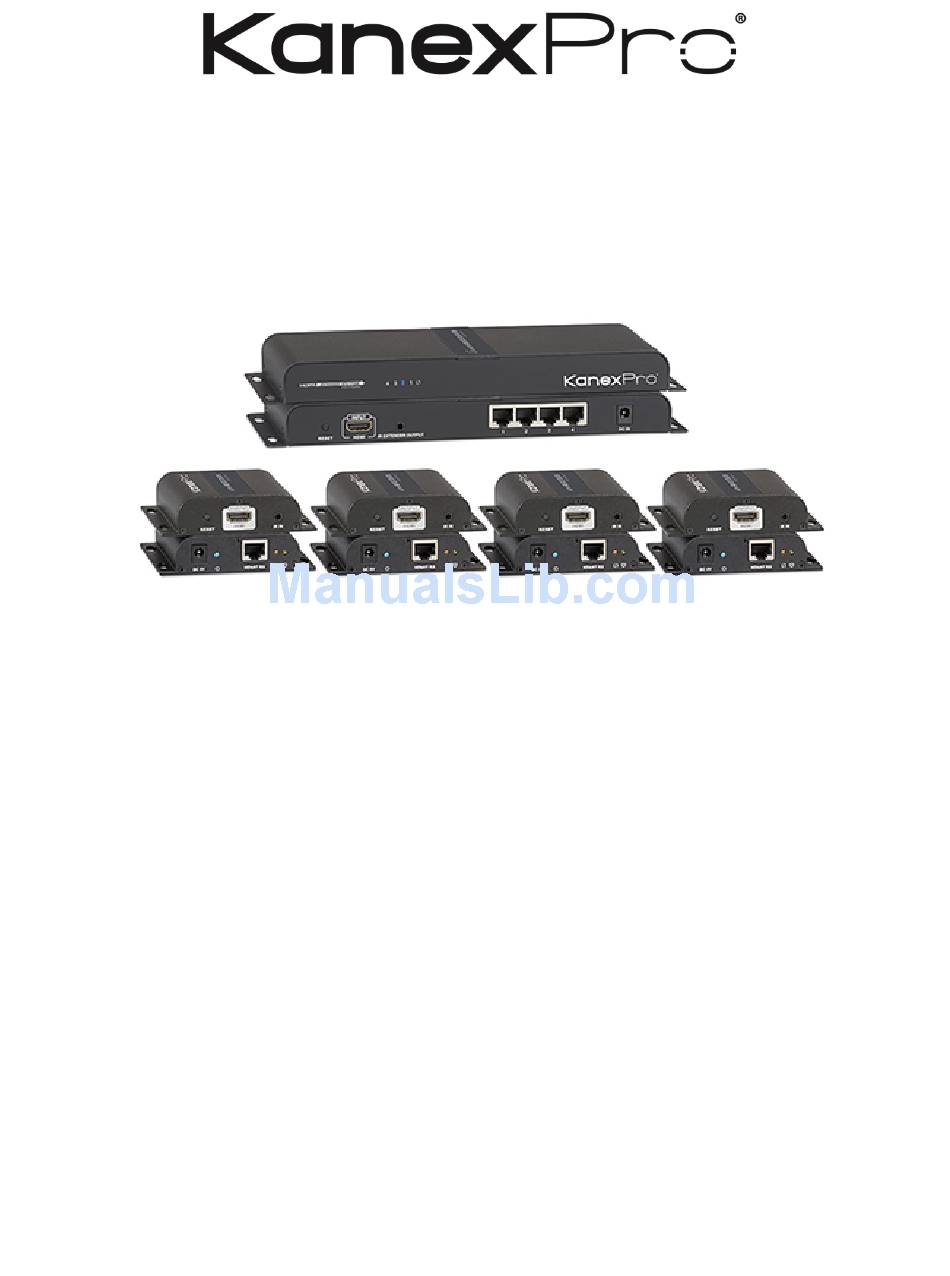

- Page 1 SP-HDCAT1X4 USER MANUAL HDMI 1x4 Distribution Amplifier w/ CAT5e/6 outputs up to 394ft. (120 meters)
- Page 2 SP-HDCAT1X4 1. Introduction: The KanexPro SP-HDCAT1X4 is a 1x4 HDMI splitter with one transmitter and four receivers set amplifier that, enables HDMI or DVI signals to be routed over distances up to 394ft.(120m) significantly beyond the capability of standard HDMI or DVI cables. When connected together using four economical and installer friendly CAT5e/6 cables, the transmitter inputs the HDMI signal into four identical outputs carrying 393ft./1080p resolution simultaneously from the provided...
- Page 3 KANEXPRO SP-HDCAT1X4 5. Panel Description: 6. Connection and Operation: • Network Cable: Follow IEEE-568B 1. Orange/white 5. Blue/white 2. Orange 6. Green 3. Green/white 7. Brown/white 4. Blue 8. Brown • Connection: HDMI Extender TX Receiver...
- Page 4 KANEXPRO SP-HDCAT1X4 • Connection Instruction 1). Connect HDMI input with HDMI output of source device. 2). Connect IR blaster extension cable to the IR extender out port. 3). Connect Cat5e/6 cable between Transmitter and receiver 4). Connect HDMI output of HDMI extender RX to HDMI input of HDTV and set the TV source input to correct HDMI input channel. 5). Power on the device (power indicator led lights) and it works. 7. Specifications Items Specifications HDMI Signals Compatible with HDCP 1.4 Transport protocol HDBitT Support resolutions 480i@60Hz, 480p@60, 576i@50, 576P@50, 720p@50/60, 1080i@50/60, 1080p@50/60 Transmit Distance 394ft(120m) IR Signal Support 20~60KHz IR device...
- Page 5 KanexPro has been advised of the possibility of such damages.
