Page 1: User Manual

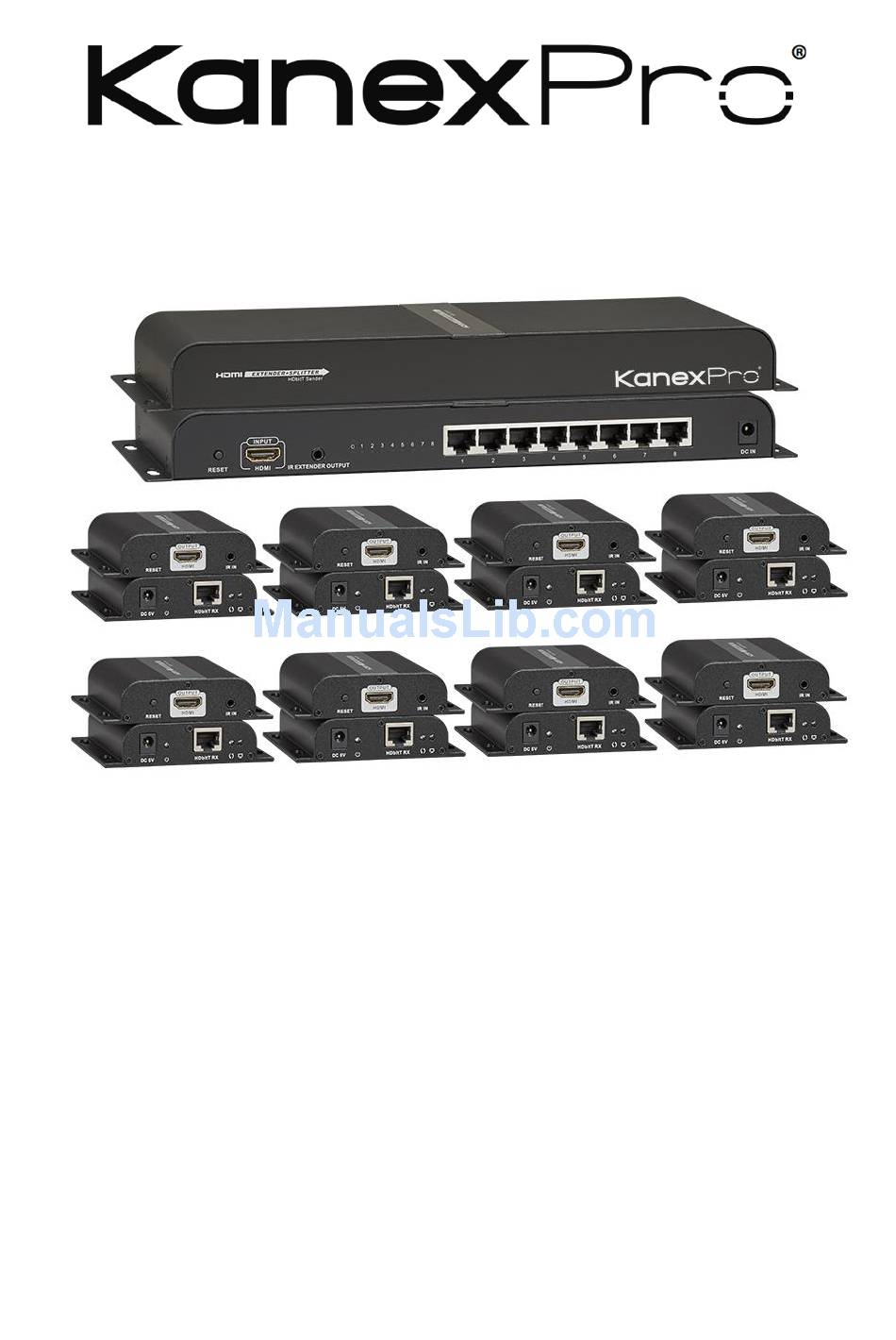

SP-HDCAT1X8 HDMI 1x8 Distribution Amplifier w/ CAT5e/6 outputs up to 394ft. (120 meters) USER MANUAL... -
Page 2: Table Of Contents
SP-HDCAT1X8 TABLE OF CONTENT INTRODUCTION ........................2 APPLICATIONS ........................2 FEATURES..........................2 IMPORTANT SAFETY NOTES ....................2 PACKAGE CONTENT ......................3 INSTALLATION REQUIREMENTS .................... 3 PANEL DESCRIPTION ......................4 CONNECTION AND OPERATION .................... 4 1) Network Cable ▪ 2) Connection ▪... -
Page 3: Introduction
SP-HDCAT1X8 Introduction: The KanexPro SP-HDCAT1X8 is a one transmitter and eight extenders - receiver set that enables high resolution 1080p HDMI signals to be routed over distances up to 394ft.(120m) significantly beyond the capability of standard HDMI connectivity. When connected using installer friendly CAT5e/6 cables, the transmitter inputs the HDMI signal into eight identical outputs carrying 394 ft./1080p resolution simultaneously from the provided receivers. -
Page 4: Package Content
SP-HDCAT1X8 Package Contents: HDMI extender TX IR blaster extension cable DC12V/3A power adapters User manual Installation Requirements: 1. HDMI source device (computer graphics card, Blu-ray, PS4, HD ROKU devices, etc.) 2. HDMI display device like HDTV, and projector with HDMI port. -
Page 5: Connection Instruction
SP-HDCAT1X8 Connection Instruction: 1). Connect HDMI input with HDMI output of source device. 2). Connect IR blaster extension cable to the IR extender out port. 3). Connect RJ45 port with RJ45 input port of HDMI extender RX. 4). Connect HDMI output of HDMI extender RX to HDMI input of HDTV and set the TV source input to correct HDMI input channel. -
Page 6: Specification
Black After-sales Service: If there are any issues when running SP-HDCAT1X8, please refer to page 4 of this user manual. Any transport costs are accepted by the users during the warranty. You can email to our after-sales department or make a call, please tell us the following information about your cases. -
Page 7: Warranty
KanexPro has been advised of the possibility of such damages. Disclaimer The product name and brand name may be registered trademark of related manufacturers.TM and ®... - Page 8 SP-HDCAT1X8 We reserve the rights to make changes without further notice to a product or system described herein to improve reliability, function or design Brea, California KanexPro.com P a g e...
