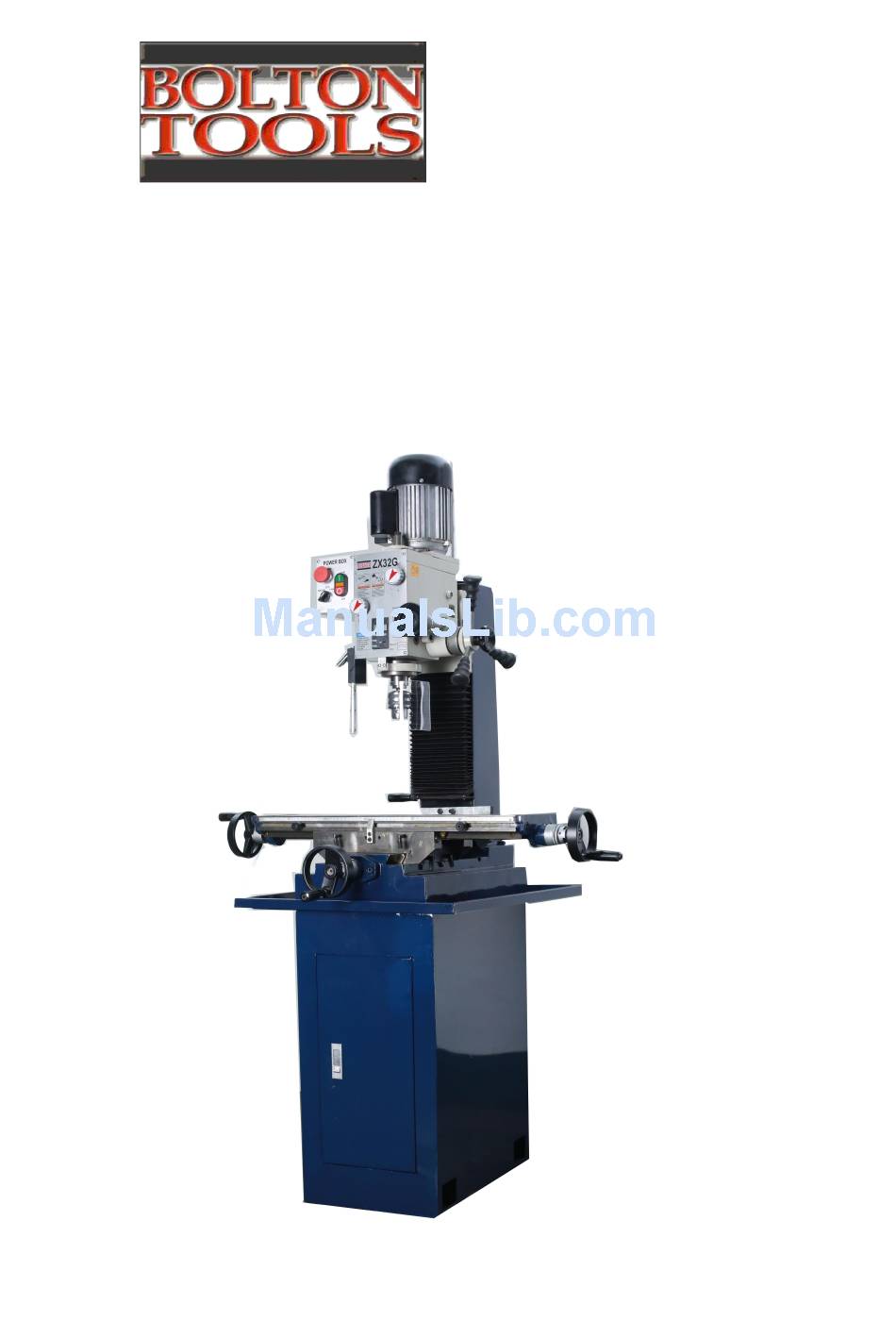

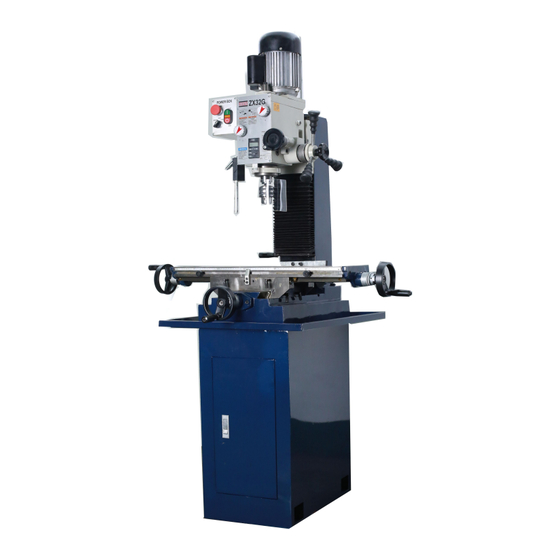

- Page 1 Model ZX32G Model ZX32GP MILLING & DRILLING MACHINE OPERATING MANUAL...
-
Page 2: Specification
Please read this manual carefully before using your machine. 1. SPECIFICATION Model Specification Max. Drilling capacity 1 1/4" Max. Face milling capacity 2 1/2" Max. End milling capacity 13/16" Swivel angle of head-stock at perpendicular direction ±90° Swivel angle of head-stock at level direction 360°... -
Page 3: Uses And Features
Description Description bolt Scale Head handle Adjustable lock screw Longitudinal table feed handle wheel Combined switch Micro feed handle wheel Speed handle Operate bar Gauge bar Head body Plexiglass protective cover Oil filler plug Longitudinal table feed handle wheel To raise and lower body Stop block Arbor bolt cover Cross table feed handle wheel... - Page 4 and also keeps high accuracy. 2.6The tough cast headstock ensures its accuracy lasting enduring through the treatment of precise boring, honing, and relieving internal stress. 2.7The machine gears are ground for steady precision. 2.8 Easy to change speed. 3.PRESERVING MANUAL Please preserve the manual because it gives you such operation, maintenance, fixing breakdown, parts subsidiary form, circuit diagram;...
- Page 5 5.1 Keep the product circumstance clean. The confusion circumstance is easy to bring danger. 5.2 Idea work condition. Don’t make the power source drenched by the rain; don’t make the power source equipment on damp place. 5.3 Don’t allow child nearby workshop, and not allow child or visitor to touch the machine (or subsidiary equipment).
- Page 6 make it far from scorching hot, grease dirt place and the sharp edge of knife. 5.10 Do not work the overlong work-piece. The length of the work-piece should be in the standard scope and keep balance in the process of working.
- Page 7 check on and determine if the protection board and others parts are damaged as usual before using the machine again. Check on and calibrate the running condition of sliding parts, to repair or change it if you find it damaged. If the switch can’t work (the damage except manual rule), you can ask service center for changing.
- Page 8 avoid the danger of metal splashing things because its speed is very fast as running, and wear protective glasses; Don’t make the machine overload; You should stand on one side of the machine in avoid the hurt of metal things; Don’t allow visitor nearby the machine when it’s running.
- Page 9 7.4 The hoisting should be fit for the net weight of machine with good hoist. The load - bearing of hoist should exceed the weight of machine in order to protect machine and personal safety. 8.Cleaning and lubricating 8.1 The machine has been coated with antirust grease before packing. You should clean the grease and lubricating it before operating it.
- Page 10 switch (4) to control the motor running or stop, then the machine can milling, drilling or stop. (3) Feeding by spindle feed handle (15). (4) To adjust the table left and right travel by the table feed handle wheel (8). (5) To adjust the table forward and backward travel by the table feed handle wheel (10).
- Page 11 Be sure of everything is ready before using. (2) After operation Turn off the power switch Take down the tools Clean the machine and coat with lubrication. Cover the machine with cloth to keep out the dust. (3)Adjusting the gearbox To raise and lower the gearbox, loosen the two lock nuts, revolve the crank handle, when the desired height is reached, tightened the lock nuts.
- Page 12 (5) Preparing for milling ①The micro feed handle wheel is used for adjusting feed depth. Revolve handle clockwise to make the worm gear connect with handle base, turn the micro handle wheel to make milling cutter reach demanded place. Regarding its rigidity, the socket couldn’t extend too long. ②...
- Page 13 (1) Be sure that drill bit or cutting tool is securely fastened in the chuck. (2) Before starting the operation, make sure the clip keys have taken away. (3) Adjust the table gauge and the depth gauge to the proper position so that the drilling head drill will not touch the worktable.
- Page 14 lock screws located on the right side of the worktable base. (2) When operating the cross feed, make sure to fasten the longitudinal feed travel of the worktable, to do this by fasten the lock screws on the front of the table. (3) Adjusting the travel stops on the front of worktable to control the longitudinal travel and the length of milling - drilling.
- Page 15 (2) Installing the face mill cutter or milling cutter holder Insert the mills and mills arbor into the taper of spindle, turn the drawbar bolt, but do not over tightening. (3) Changing the taper drills ①Turn down the drawbar bolt and insert the taper drills into the spindle hole.
- Page 16 should stop machine immediate to check it for keeping accurate performance. (3) Keep work area clean, release vise, cutter and work-piece from table, turn off power source, take chip or dust away from machine. Fill the lubricant and coating, antirust oil before leaving according to the manual.
- Page 17 (2) The fuse is cut off in the switch box. — to change a new switch. (3) The overload protective relay separate automatically when the power source is too strong. — to press it and make it on the normal position. 13.2The motor is too hot or has no power.
- Page 18 load. 13.4The spindle is lack of power. (1) The change-speed handle can’t change the gears on right position — to turn it to make it on corresponding position. (2) The motor is burnt up. — to change a new one. (3) The fuse is cut.
- Page 19 bearing to a proper degree. (4) The clip head don’t hard up. — to adjust it. (5) The milling cutter is blunt. — to grind it. (6) The work-piece doesn’t carry hard. to make sure of carrying it tightly. 13.7 The micro feeding can’t work smoothly (1) The clutch don’t hard up.
- Page 20 please contact with your local supplier or mater cutting tool supplier to obtain any of these accessories. Taper drill Reamers End mills Milling cutter arbor Clips Adapter sleeves 16.Bearing list Model Name position Amount 8103 Push ball bearing Worktable 7205E Conic ball bearing spindle 7207E...
- Page 28 PACKING LIST PRODUCT: MILLING & DRILLING MACHINE DESCRIPTION SRECIFICATIO NOTE MILLING&DRILLING MACHINE STANDARD ACCESSORIES OPERN WRENCH 17×19 DRILL CHUCK ALLEN WRENCH 5mm, 6mm SCREW 6〞 DRIVER(–) DRILL STOCK M.T.3 WEDGE DRAW BAR HANDWHEEL OPTIONAL ACCESSORIES PURCHA LAMP ACCORD FACE MILLING Ø76mm ORDER CUTTER...
