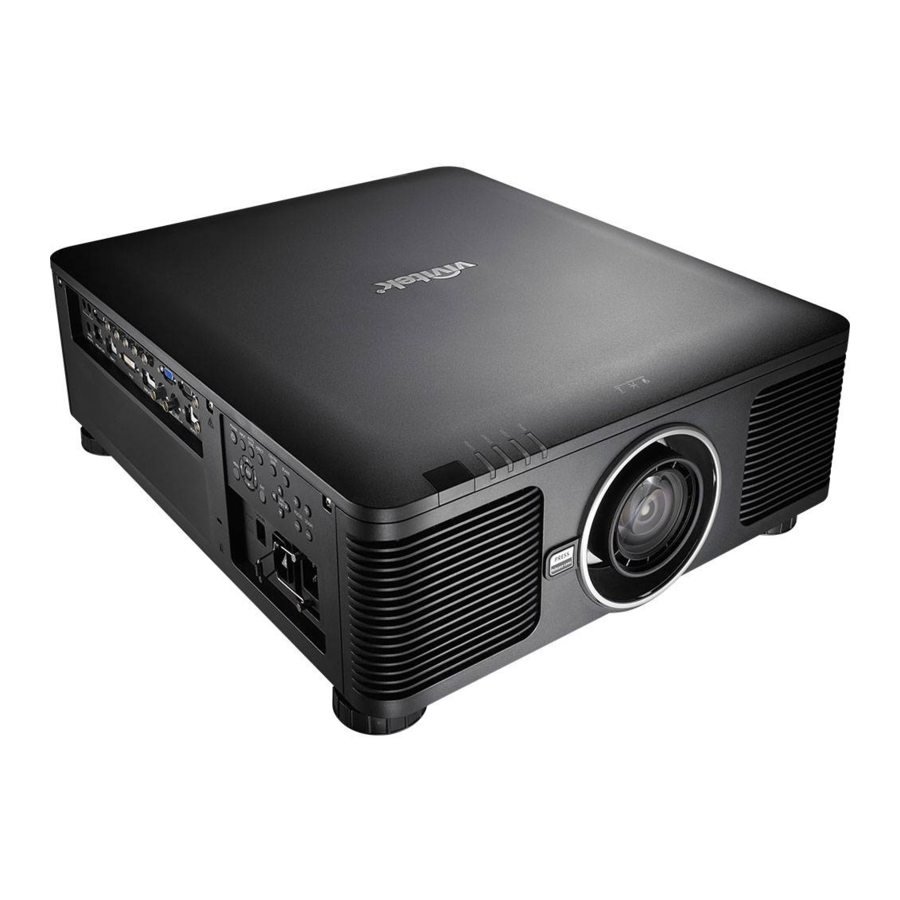

Vivitek DU8090Z Communications Manual

Hide thumbs Also See for DU8090Z:
Table of Contents

Advertisement

Quick Links

Download this manual
Remote Communicaton
Manual
DU8090Z

Advertisement

Table of Contents
loading

Related Manuals for Vivitek DU8090Z

Summary of Contents for Vivitek DU8090Z

  • Page 1 Remote Communicaton Manual DU8090Z...

  • Page 2: Table Of Contents

    DU8090Z DLP Projector Remote Communication Manual Table of Contents The Serial Interface RS-232 Command ..................2  Communication parameter ......................2  Operation commands ......................... 2  Operation command syntax ....................2  List of operation commands ....................3  Simulated IR remote controller commands ................14 ...

  • Page 3: The Serial Interface Rs-232 Command

    DU8090Z DLP Projector Remote Communication Manual The Serial Interface RS-232 Command This projector supports to control by RS-232 command, there exist two types of RS-232 serial commands: Operation command: Available menu options are INPUT, PICTURE, ALIGNMENT, CONTROL and SERVICE. ...

  • Page 4: List Of Operation Commands

    DU8090Z DLP Projector Remote Communication Manual List of operation commands INPUT OSD Function Operation Settings/Return Values Note command Input Select input.sel Not applicable when the project is at 0 = HDMI 1 below status. 1 = HDMI 2 Standby mode ...
  • Page 5 DU8090Z DLP Projector Remote Communication Manual OSD Function Operation Settings/Return Values Note command VGA Setup/H Total h.total Not applicable when the project is in  0-200 standby mode or the input signal is not locked yet. Apply for VGA and Component signal ...
  • Page 6 DU8090Z DLP Projector Remote Communication Manual PICTURE OSD Function Operation Settings/Return Values Note command Picture Mode pic.mode Not applicable when the project is in standby mode. 0 = High Bright 1 = Presentation 2 = Video Brightness bright Not applicable when the project is in...
  • Page 7 DU8090Z DLP Projector Remote Communication Manual Operation OSD Function Settings/Return Values Note command Not applicable when the project is in Input Balance /Red red.gain 0-200 standby mode or the input signal is Gain not locked yet. Input Balance /Green green.gain...
  • Page 8 DU8090Z DLP Projector Remote Communication Manual Operation OSD Function Settings/Return Values Note command Not applicable when the project is in HSG/Yellow/Saturation Hsg.y.sat 0-200 standby mode or the input signal is not locked yet. HSG/Red/Hue hsg.r.hue Not applicable when the project is in...
  • Page 9 DU8090Z DLP Projector Remote Communication Manual Alignment OSD Function Operation Settings/Return Value Note command Lens control zoom.in (execute) The Lens control command does not apply when the projector is in standby mode. Lens control zoom.out (execute) The Lens control command does not apply when the projector is in standby mode.
  • Page 10 DU8090Z DLP Projector Remote Communication Manual OSD Function Operation Settings/Return Value Note command Warp / Keystone H h.keystone Horizontal -600 ~ + 600 Not applicable when the project is at below status. Standby mode  Warp / Keystone V v.keystone...
  • Page 11 DU8090Z DLP Projector Remote Communication Manual OSD Function Operation Settings/Return Value Note command Blanking / blanking.reset (execute) Not applicable when the project is at Reset below status. Standby mode  Edge Blend eb.stat 0 = Off Not applicable when the project is at 1 = On below status.
  • Page 12 DU8090Z DLP Projector Remote Communication Manual OSD Function Operation Settings/Return Value Note command Screen Format screen.format 0 = 16:10 Not applicable when the project is at 1 = 16:9 below status. 2 = 4:3 *Standby mode CONTROL OSD Function Operation...
  • Page 13 DU8090Z DLP Projector Remote Communication Manual OSD Function Operation Settings/Return Values Note command Light Power laser.mode Not applicable when the project is in  0 = Eco Mode standby mode 1 = Normal Mode 2 =custom Power Mode Not applicable when the project is in ...
  • Page 14 DU8090Z DLP Projector Remote Communication Manual SERVICE OSD Function Operation Settings/Return Values Note command Model model <String> Not applicable when the project is in standby mode standby mode Serial Number ser.no <String> Not applicable when the project is in standby mode Software Version sw.ver...

  • Page 15: Simulated Ir Remote Controller Commands

    DU8090Z DLP Projector Remote Communication Manual Simulated IR remote controller commands This control command simulates the IR remote controller and its control keys. It shares the same syntax of operation command. It begins with characters "ky", followed by control commands and settings separated by space blank [SP], and ended by carriage return pair "CR"...

  • Page 16: Control The Projector Through A Network

    DU8090Z DLP Projector Remote Communication Manual Control the Projector Through a Network This machine supports the following methods in remotely controlling the projector through a network:  Control projector through web browser.  Control projector with RS-232 control or simulated IR commands via TCP/IP communication protocol.

  • Page 17: Set Up The Projector For Networking

    DU8090Z DLP Projector Remote Communication Manual Set up the projector for networking Before performing projector control by network, please configurate the network setting and make sure Standby Power is set to On. Network Mode: Switch network mode for projector control or service, the default setting is Projector Control.

  • Page 18: Control The Projector Through A Network

    DU8090Z DLP Projector Remote Communication Manual Control the projector through a network Control the projector through a web browser Open the web browser of your control PC, type the projector's IP address. The left of the web page shows below four options: Projector Status: Display current projector settings.
  • Page 19 DU8090Z DLP Projector Remote Communication Manual Projector Control This page provides the control buttons for power, blank, Input Selection and Lens control. Power : Projector power on/off control. Blank : Interrupt the projection temporarily or start the projection again. Input Selection : Select the input source by pressing the buttons.
  • Page 20 DU8090Z DLP Projector Remote Communication Manual Crestron RoomView This page shows Crestron control page for projector control, the available options are as below options. Power: Press this button to turn power on or off. Source List: Switch projector input sources. Press the ▲ or ▼ arrow key to scroll through the dropdown list of...
  • Page 21 DU8090Z DLP Projector Remote Communication Manual Control key window This window simulates keys on the remote controller and control panel. Enter: Confirm and select function options Menu: Press to display OSD menu. Press again to exit it. Auto: Run the auto image adjustment function.

  • Page 22: Control Projector With Tcp/Ip Communication Protocol

    DU8090Z DLP Projector Remote Communication Manual Alert Mail Setup This projector can send emails with projector abnormality messages to preset users. Set up the projector before enabling this function: SMTP Server : Set up SMTP server name. Port : Set up port name.

  • Page 23: About Vivitek Support

    DU8090Z DLP Projector Remote Communication Manual About Vivitek Support If you cannot find solutions from this user guideline, please contact us using the contact information below: North and Central America VIVITEK USA 15700 Don Julian Road, Suite B, City of Industry, CA 91745, U.S.A.
