INSTRUCTIONS FOR
18V Cordless
Rotary Drill
Stock No.03289
Part No.CD182VLI
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 03289
Summary of Contents for Draper 03289
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Table Of Contents
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 3: Specification
SPECIFICATION The Draper Tools policy of continuous improvement determines the right to change specification without notice. Stock no........................... 03289 Part no......................... CD182VLI Battery: Type ..........................Li-Ion Rated voltage ......................... 18V Rating..........................1.3Ah Charger: Rated voltage ........................ 230V~ Rated frequency....................... 50Hz Rated power input...................... -
Page 4: Power Supply
POWER SUPPLY CAUTION: Risk of electric shock. Do not open. This appliance is supplied with a moulded 3 pin mains plug for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BS Kite marked. -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving General Power Tools Safety Warnings parts. Loose clothes, jewellery or long hair can be caught in moving parts. -
Page 6: Additional Safety Instructions
For indoor use. Do not expose to rain. Do not charge non-rechargeable batteries. The battery charger is only suitable for charging rechargeable Ni-Cd and Li-Ion batteries Draper Stock Nos.03295 and 03302. Any other application is considered misuse. - 5 -... -
Page 7: Getting To Know Your Rotary Drill

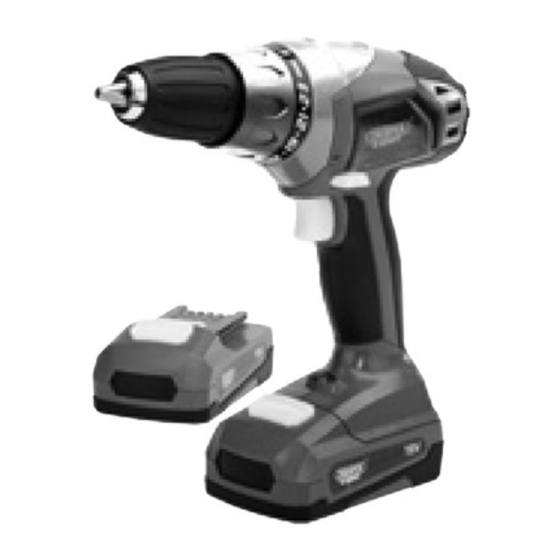

GETTING TO KNOW YOUR ROTARY DRILL (1) Variable speed trigger switch. (6) 18V battery (1.3Ah) x 2. (2) Forward/reverse selector. (7) LED worklight. (8) 18V 1Hr charger. (3) 13mm keyless chuck. (9) Screwdriver bit x 1. (4) Torque collar. (5) Bit storage compartment. UNPACKING: After removing the packing material, make sure the product is in perfect condition and that there are no visible damaged parts. -
Page 8: Operation And Use
OPERATION AND USE - BATTERY CHARGER (Fig.2): FIG.2 This product is supplied with an automatic battery † charger designed and intended for recharging 18V Ni-Cd and Li-Ion batteries only. Li-Ion batteriey pack: Rating 3.2ah Max. Ni-Cd batteriey pack: Rating 2.0ah Max. DEFINITION: Automatic Battery Charger: Once connected to the mains supply recharging of... - Page 9 OPERATION AND USE - FORWARD/REVERSE SELECTOR (Fig.4): The switch determines the direction of rotation of the chuck, i.e. clockwise or anticlockwise. To alter the direction of rotation, stop the drill and push switch (A) to the left or right. When the direction switch is pushed to the left, the chuck will rotate clockwise.
-
Page 10: Operation And Use
OPERATION AND USE - SCREWDRIVER BIT HOLDER (Fig.7): FIG.7 The drill comes equipped with a bit holder (D) on the left side of the housing to hold the two screwdriver bits supplied. - LED WORKLIGHT (Fig.8): FIG.8 To aid drilling and screwdriving in confined, inadequately lit spaces, the LED worklight automatically illuminates when the trigger is activated. -
Page 11: Disposal
DISPOSAL - At the end of the machine’ s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... -
Page 12: Maintenance & Parts Replacement
MAINTENANCE & PARTS REPLACEMENT Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tools in good working condition. The motor must be correctly ventilated during the tools operation. For this reason avoid blocking the air inlets. After use remove the battery pack and vacuum the ventilation slots. If the replacement of the charger's supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard Remove the plug from the socket before carrying out adjustment, servicing or maintenance. - Page 13 NOTES - 12 -...
- Page 14 NOTES - 13 -...
- Page 15 NOTES - 14 -...
- Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
