Draper CDH18VLI Instructions Manual

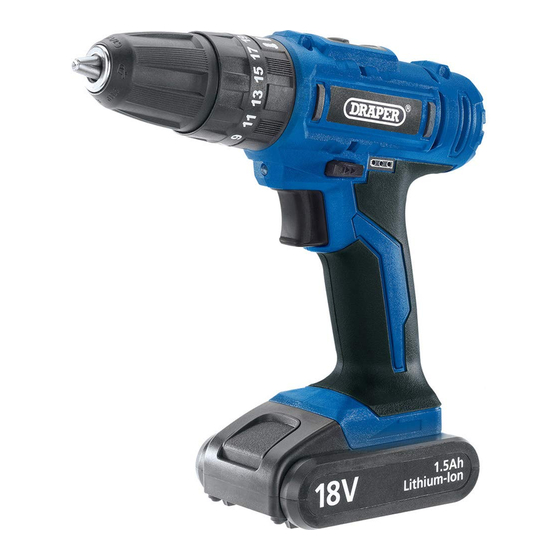

18v li-ion cordless hammer drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR
18V Li-ion
Cordless Hammer Drill
Stock No.20890 Part No.CDH18VLI
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDH18VLI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper CDH18VLI

Summary of Contents for Draper CDH18VLI

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE ........

  • Page 4: T O R . Y

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    It is intended for domestic and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock No..........................20890 Part No.......................... CDH18VLI Battery: Type ........................Li-ion Rated Voltage ......................18V Rating ........................1.5Ah Charger: Rated Voltage ....................

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS Do not overreach. Keep proper footing and balance at all times. This enables better control of General Power Tools Safety Warnings the power tool in unexpected situations. Dress properly. Do not wear loose clothing or WARNING: Read all instructions.

  • Page 7: General Instructions For Battery Powered Tools & Chargers

    HEALTH & SAFETY INFORMATION 5.2 GENERAL INSTRUCTIONS FOR Check that cutting tools are undamaged and are kept clean and sharp, this will maintain their operating BATTERY POWERED TOOLS & performance and lessen the loading on the tool. If possible, always use clamps or a vice to hold your work. CHARGERS Do not put pressure on the drill, such that it slows the motor down.

  • Page 8: Instructions For Drills. Chargers And Batteries

    Do not use battery if it has been stored at 5°C or The battery charger is only suitable for charging less. Allow it to “normalise” at room temperature rechargeable Draper 18V Li-ion batteries. before usage/changing. Any other application is considered misuse.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Variable speed trigger switch. Hammer/screwdriver/rotary selector. Forward/reverse/Lock selector. 18V 1.5Ah Li-ion battery pack. 10mm keyless chuck. LED work light. Torque selection collar. 2 Speed selector switch.

  • Page 10: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the drill.

  • Page 11: Basic Cordless Hammer Drill Operations

    BASIC CORDLESS HAMMER DRILL OPERATIONS 8.1 BATTERY CHARGING – FIGS. 1 - 2 FIG.1 (i) To release the battery pack , press down on the battery release button located on the front of the battery pack and gently pull the battery pack away from the housing.
  • Page 12 BASIC CORDLESS HAMMER DRILL OPERATIONS 8.3 INSTALLING AND REMOVING BITS – FIG. 3 The drill is fitted with a keyless chuck , this means that a chuck key is not required to secure the drill or screwdriver bit. (i) Place the drill bit shoulder into the chuck as far as it will go.
  • Page 13 BASIC CORDLESS HAMMER DRILL OPERATIONS 8.7 TORQUE CONTROL – FIG. 6 FIG.6 By turning the collar it is possible to adjust the amount of torque. (i) Settings 1-21 provide a facility for setting the torque to the required level. For example, this means that repetitive driving of screws of the same size will be driven into the material to the same torque, thus giving the same fixing...
  • Page 14 BASIC CORDLESS HAMMER DRILL OPERATIONS 8.9 HOLDING THE DRILL – FIGS. 8 – 9 The drill casing is designed to be held comfortably in two ways. FIG.8 FIG.9 8.10 DRILLING WOOD AND PLASTIC Set collar setting. To prevent splitting around the drill holes on the reverse side, place a piece of scrap timber under the material to be drilled.

  • Page 15: Maintenance

    MAINTENANCE 9.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. After use disconnect the tool from the power supply and vacuum the ventilation slots.

  • Page 16: Optional Accessories

    10. OPTIONAL ACCESSORIES 10.1 OPTIONAL ACCESSORIES Stock No. Part No. Voltage 41542 ACDH18VLI/B 18V 1.5Ah Li-ion battery. 41510 ACDH18VLI 18V 1 hour fast charger.
  • Page 17 11. TROUBLESHOOTING Cause Remedy Problem Drill does not 1. Flat battery. 1. Charge battery. work. 2. Forward/Reverse 2. Select forward or reverse. not selected. Chuck does not 1. Iock screw loose. 1. Open chuck fully and tighten screw close or grip. (left hand thread).

  • Page 18: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Class II construction (Double insulated). WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use only. Do not expose to rain. Li-ion battery must be recycled or disposed of properly. Li-ion T3.15A Non-Self-Resetting protective device.

  • Page 19: Disposal

    13. DISPOSAL 13.1 DISPOSAL At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDMC0916...
