1. Evaluation Board Overview

The top layer of the evaluation board is dedicated to the touch screen interface while the electronics circuitry is on the
bottom layer.

1.1. Top layer description

The evaluation board is shown on Figure 1 and each zone is described in the corresponding subsection.
3

1.1.1. Connector for main touchscreen (P9)

P9 is the main touchscreen connector. It has 4 upper contacts with a pitch of 1mm. The touchscreen used on this
evaluation kit has the following reference:

1.1.2. Connector for auxiliary touchscreen (P10)

P10 is an auxiliary touchcreen connector. It has 4 upper contacts with a pitch of 1mm. An auxiliary touchscreen can be
connected as the one with the reference below:
Revision V1.2/March 2012
©2010 Semtech Corp.
4
5

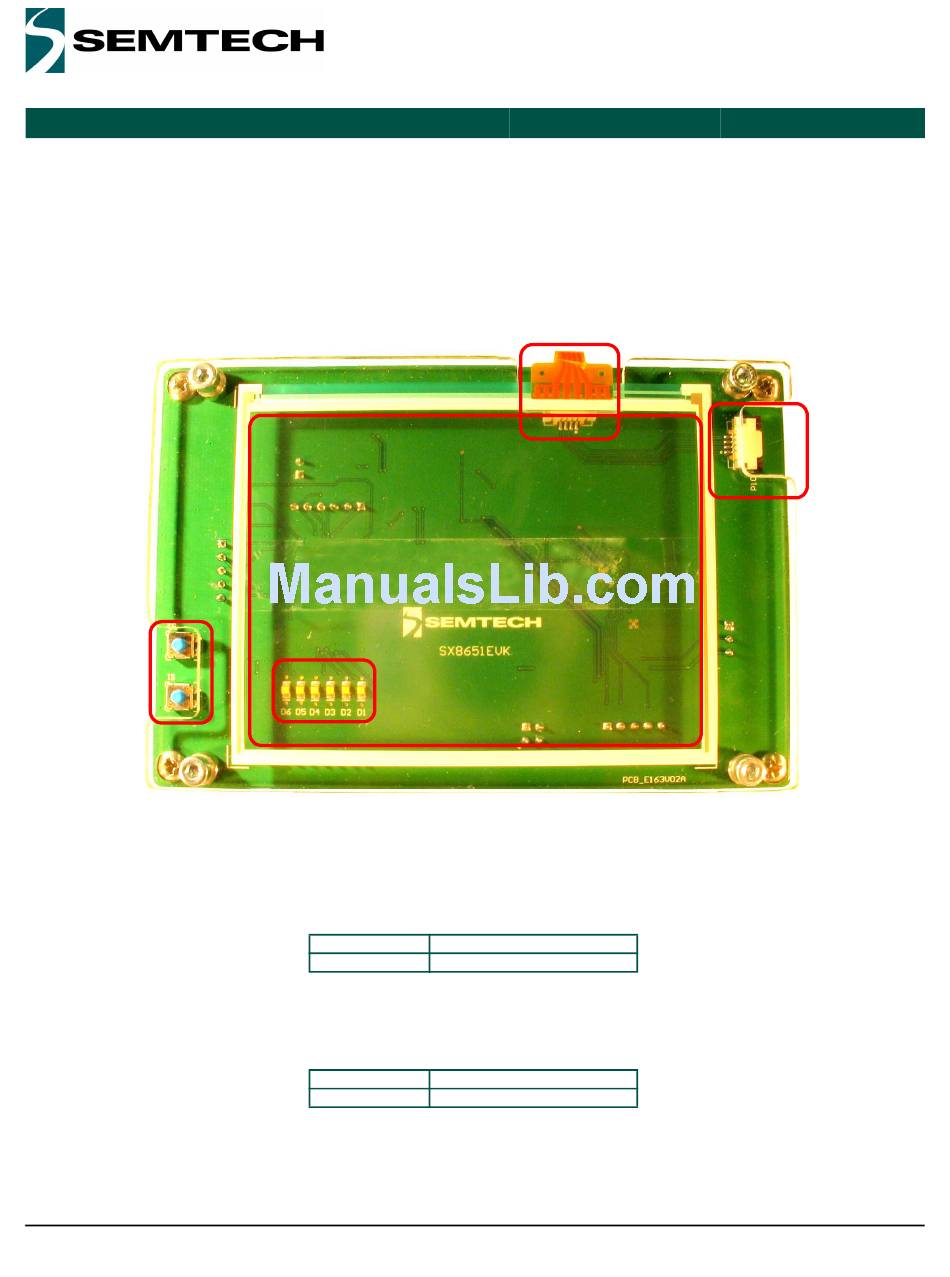

Figure 1. Top of Evaluation Board
Brand Reference
Fujitsu N010-0554-T703
Brand Reference
Bergquist
Page 3
1
400425
SX8651EVK
USER GUIDE
2
