FIG.I
Notes:
• When this module is installed it will control the closed
loop area of the motorcycle. The closed loop area
is 0-24% throttle and 0-5500rpm. The module is
designed to achieve an AFR target of around 13.6:1.
If you desire a different AFR call tech support at 800-
992-4993
• If you are using a PCV with this module input values of
10 in the GREY area of your map shown in Figure C
EXCEPT for idle. If you are using an Auto tune module
do NOT input target AFR values in this same area.
14-003 w ww.powercommander.com

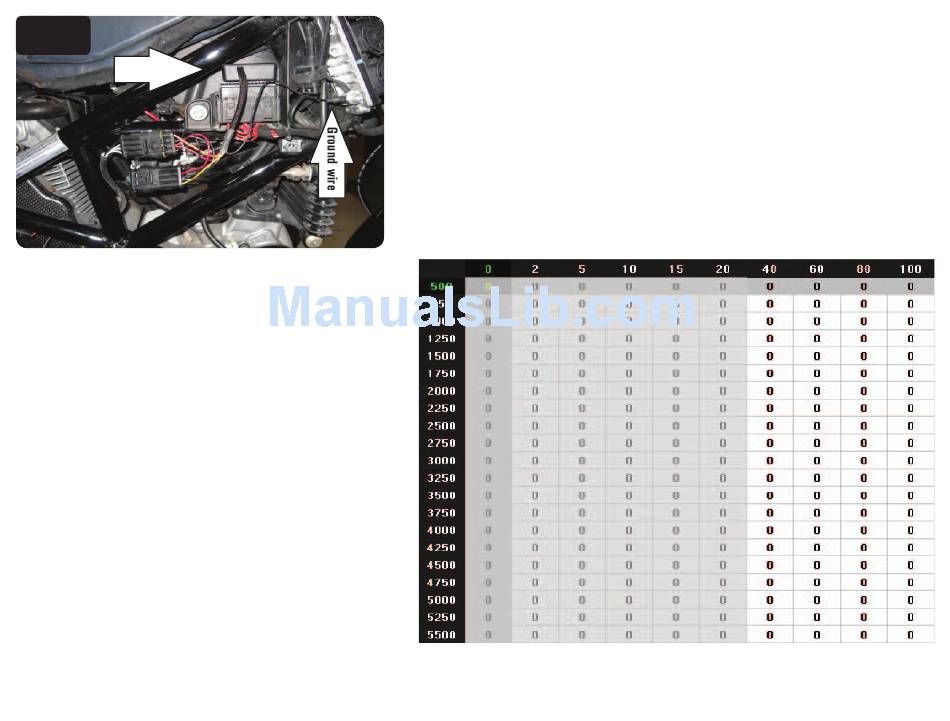

19 Plug the Dynojet O2 Optimizer in-line of the main wiring harness and stock O2
sensor.
20 Attach the ground wire of the Optimizer to the ECU ground wire location
21 Install the O2 optimizer to the top of the fuse box assembly using the supplied
velcro
2009-2010 Ducati Hypermotard PCV - 6
