Remove the seat.
Remove the fuel side panels.

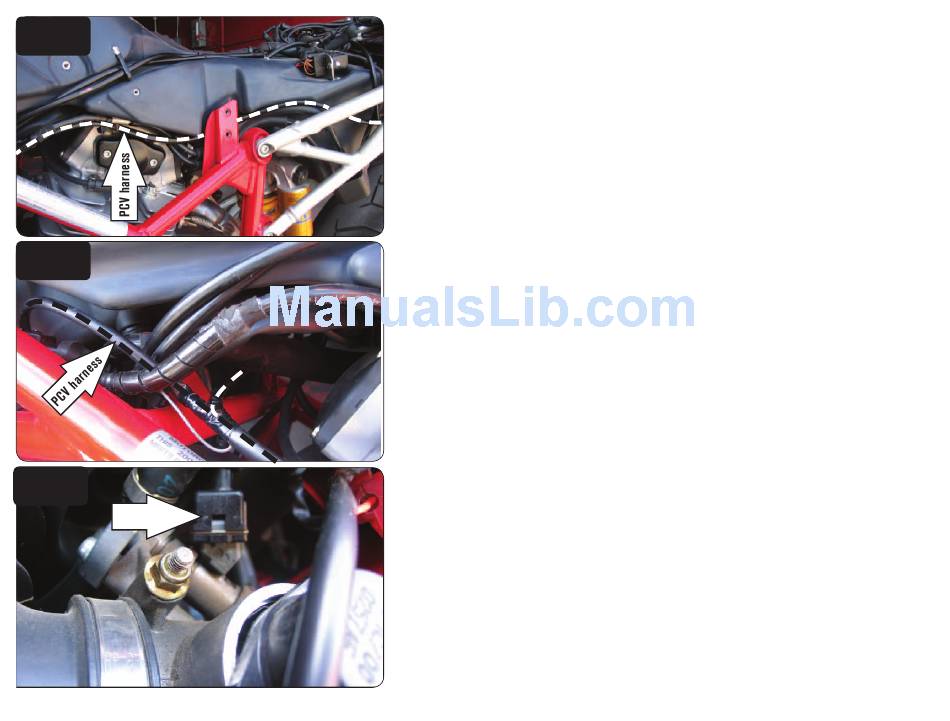

Lay the PCV near the battery and route the harness down the left hand side of
the bike (Fig. A).
Continue routing the PCV harness along left hand frame rail.
Route the ORANGE colored wires to the right side of the bike following the
frame cross member (Fig. B).
Unplug the stock wiring harness from the rear injector (Fig. C).
This injector is located on the left hand side of the bike.
2009-2010 Ducati Hypermotard PCV - 3
