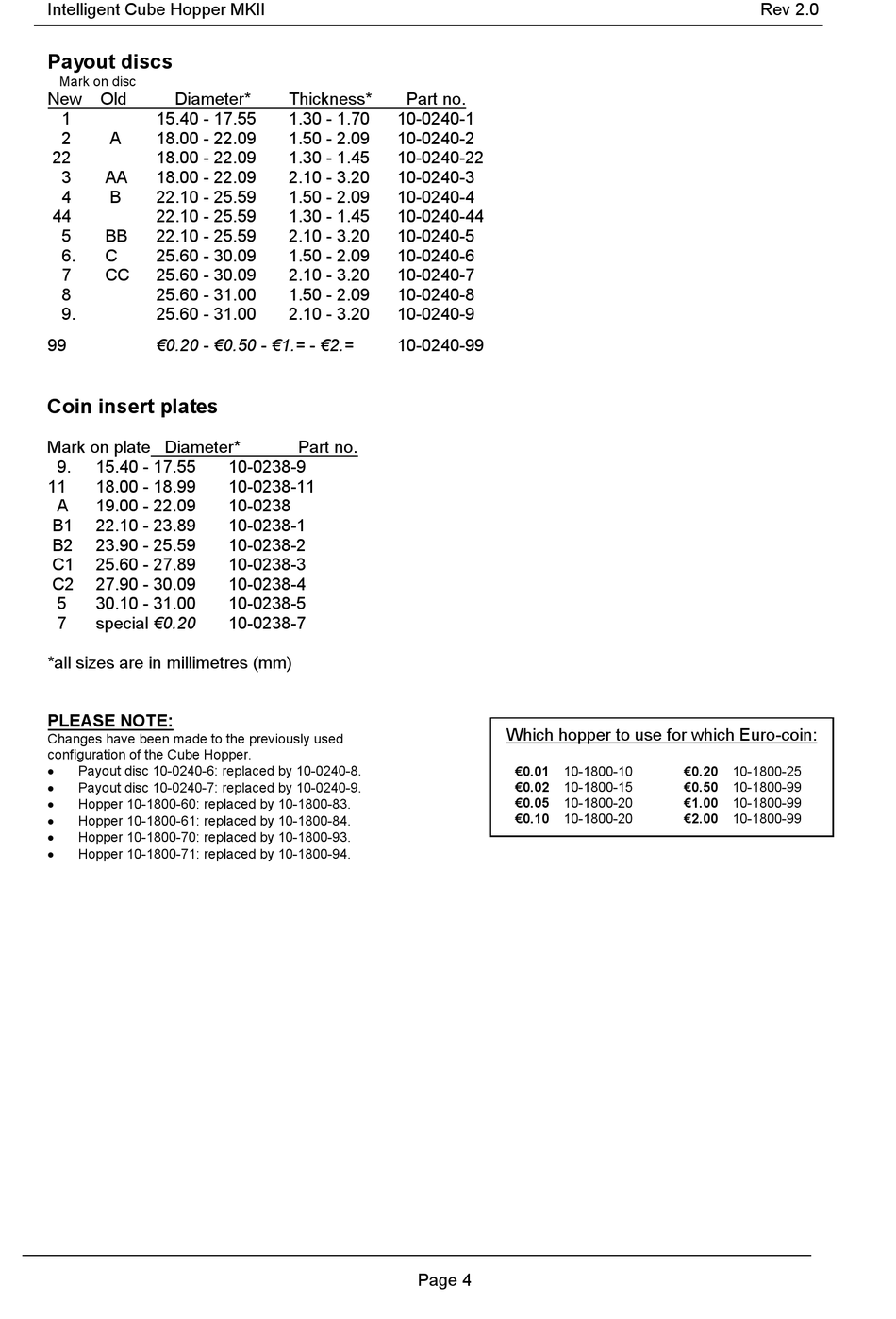

Suzohapp CUBE HOPPER MKII Instruction And Service Manual page 4

Intelligent Cube Hopper MKII
Payout discs
Mark on disc
New Old Diameter*
1 15.40 - 17.55
2 A 18.00 - 22.09
22 18.00 - 22.09
3 AA 18.00 - 22.09
4 B 22.10 - 25.59
44 22.10 - 25.59
5 BB 22.10 - 25.59
6. C 25.60 - 30.09
7 CC 25.60 - 30.09
8 25.60 - 31.00
9. 25.60 - 31.00
99 €0.20 - €0.50 - €1.= - €2.=
Coin insert plates
Mark on plate Diameter*
9. 15.40 - 17.55
11 18.00 - 18.99
A 19.00 - 22.09
B1 22.10 - 23.89
B2 23.90 - 25.59
C1 25.60 - 27.89
C2 27.90 - 30.09
5 30.10 - 31.00
7 special €0.20
*all sizes are in millimetres (mm)
PLEASE NOTE:
Changes have been made to the previously used
configuration of the Cube Hopper.

Payout disc 10-0240-6: replaced by 10-0240-8.

Payout disc 10-0240-7: replaced by 10-0240-9.

Hopper 10-1800-60: replaced by 10-1800-83.

Hopper 10-1800-61: replaced by 10-1800-84.

Hopper 10-1800-70: replaced by 10-1800-93.

Hopper 10-1800-71: replaced by 10-1800-94.
Thickness*
1.30 - 1.70
1.50 - 2.09
1.30 - 1.45
2.10 - 3.20
1.50 - 2.09
1.30 - 1.45
2.10 - 3.20
1.50 - 2.09
2.10 - 3.20
1.50 - 2.09
2.10 - 3.20
Part no.
10-0238-9
10-0238-11
10-0238
10-0238-1
10-0238-2
10-0238-3
10-0238-4
10-0238-5
10-0238-7
Part no.
10-0240-1
10-0240-2
10-0240-22
10-0240-3
10-0240-4
10-0240-44
10-0240-5
10-0240-6
10-0240-7
10-0240-8
10-0240-9
10-0240-99
Which hopper to use for which Euro-coin:
€0.01 10-1800-10
€0.02 10-1800-15
€0.05 10-1800-20
€0.10 10-1800-20
Page 4
Rev 2.0
€0.20 10-1800-25
€0.50 10-1800-99
€1.00 10-1800-99
€2.00 10-1800-99
