Summary of Contents for Suzohapp CUBE HOPPER MKII

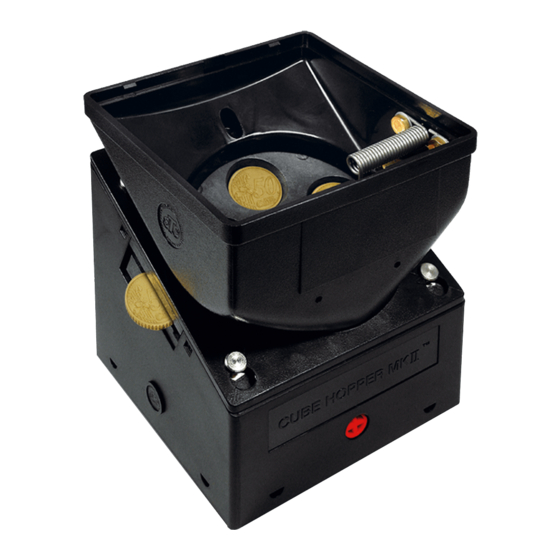

- Page 1 Intelligent Cube Hopper MKII Rev 2.0 ® CUBE HOPPER MKII Instruction - Service Manual Intelligent Cube Hopper Model 10-18XX-XX Version 2.0 / Apr 2013 A new design to solve most of your payout problems! Page 1...
-
Page 2: Table Of Contents
Intelligent Cube Hopper MKII Rev 2.0 TABLE OF CONTENTS REFERENCE CHART ..........................3 Instruction Manual ........................... 5 Standard hopper for different applications ..................5 1.1. Features ........................... 5 1.2. Disassembly ..........................5 Service Manual ............................6 Electrical features ..........................6 2.1. -
Page 3: Reference Chart
Intelligent Cube Hopper MKII Rev 2.0 REFERENCE CHART Model no.10-18XX-10 Model no.10-18XX-83 Diameter 15.40 to 17.55mm. Thickness 1.30 to 1.70mm. Diameter 25.60 to 27.89mm. Thickness 1.50 to 2.09mm. Disc is marked "1" (Part no. 10-0240-1). Disc is marked "8" (Part no. 10-0240-8). - Page 4 Intelligent Cube Hopper MKII Rev 2.0 Payout discs Mark on disc Diameter* Thickness* Part no. 15.40 - 17.55 1.30 - 1.70 10-0240-1 18.00 - 22.09 1.50 - 2.09 10-0240-2 18.00 - 22.09 1.30 - 1.45 10-0240-22 18.00 - 22.09 2.10 - 3.20 10-0240-3 22.10 - 25.59...
-
Page 5: Instruction Manual
Intelligent Cube Hopper MKII Rev 2.0 Congratulations on your purchase of this INTELIGENT CUBE HOPPER MKII and thank you for having confidence in our SUZOHAPP quality products Instruction Manual 1. Standard hopper for different applications The CUBE HOPPER is a single coin payout system made universal by using the relevant payout disc and coin insert plate (see Reference Chart). -
Page 6: Service Manual
Intelligent Cube Hopper MKII Rev 2.0 Service Manual 2. Electrical features 2.1. Connections Pin 1 low level Pin 2 low level (common). Pin 3 start input. Pin 4 mode input. Pin 5 Busy / Ready output Pin 6 Coin Exit output Pin 7 Power Supply (12 or 24VDC) . -
Page 7: Interface Signals
Intelligent Cube Hopper MKII Rev 2.0 3. Interface signals Table 1 lists all signals. Signal Type Description High impedance (internal 100K pull up to 5V) Connected to Hopper Low Level signal plate Low impedance (internal 100 ohm to 0V) Connected to Hopper Low Level ground plate... -
Page 8: Motor Control
Intelligent Cube Hopper MKII Rev 2.0 3.8. Motor control Connecting and interrupting the +12 or +24VDC supply controls the motor. The motor is automatically stopped when the power-supply is switched off. Motor duty cycle is 2:1. An electronic overload detection system protects the motor and in case of a coin jam it will temporarily turn the hopper disc several times in the opposite direction until the jam is solved if not the motor switches itself off. -
Page 9: Hopper Operation
Intelligent Cube Hopper MKII Rev 2.0 4. Hopper Operation 4.1. Mode’s The hopper can be set in one of 3 different operating modes: 1. Continuous mode (JP1 shorted, JP2 shorted) 2. Logic mode (JP1 open, JP2 open) 3. Pulsed mode (JP1 open, JP2 shorted) These modes are described in the next chapters. -
Page 10: Continuous Mode Anti-Jam Operation
Intelligent Cube Hopper MKII Rev 2.0 4.4. Continuous mode anti-jam operation If the hopper for some reason blocks (jams) the motor current will rise fast. When the current exceeds a certain trip level (around 1.6 Amp), the motor will be reversed for T_clear ms. This is done to withdraw any coins from the coin exit port that may have caused the block. -
Page 11: Logic Mode
Intelligent Cube Hopper MKII Rev 2.0 4.5. Logic mode The Logic mode is activated if JP1 and JP2 are open. The power must be put off / on in order for the logic mode to be activated. 4.6. Logic mode normal operation In this mode, the hopper in started by setting the start level to a voltage between 5 - 24V. -
Page 12: Logic Mode Anti-Jam Operation
Intelligent Cube Hopper MKII Rev 2.0 4.7. Logic mode anti-jam operation If the hopper for some reason blocks (jams) the motor current will rise fast. When the current exceeds a certain trip level (around 1.6 Amp), the motor will be reversed for T_clear ms. This is done to withdraw any coins from the coin exit port that may have caused the block. -
Page 13: Pulsed Mode
Intelligent Cube Hopper MKII Rev 2.0 4.8. Pulsed mode The Pulsed mode is activated if JP1 is open and JP2 is shorted. The power must be put off / on in order for the pulsed mode to be activated. 4.9. Pulsed mode normal operation In this mode, for each active high or active low pulse on the start input, the hopper ejects a coin. -
Page 14: Mechanical Features
Intelligent Cube Hopper MKII Rev 2.0 5. Mechanical features 5.1. Dimensions & Weight Dimensions: D: 125mm W: 125mm H: 152mm Weight: 780 grams 5.2. Removing the Motor and Gearbox The motor is controlled by the PCB and operates the disc by means of gears and shafts. -
Page 15: Maintenance
Intelligent Cube Hopper MKII Rev 2.0 6. Maintenance Important: shut-off power from the host machine before starting any cleaning activities. 6.1. Removing and re-installing the hopper The hopper can easily be removed by pressing on the yellow release button on the mounting plate and then removing the connector. -
Page 16: Optional Add-Ons
Intelligent Cube Hopper MKII Rev 2.0 8. Optional add-ons 8.1. Cup extension (Part No. 10-0200) A 65mm high extension together with standard coin-cup increases the capacity of the cup from 300 to 500 coins of €2.00 (25.75mm in diameter, 2.2mm thick). It can be used with all coins with diameters up to 31mm. - Page 17 Intelligent Cube Hopper MKII Rev 2.0 Design and specifications are subject to change without notice. Wijzigingen in ontwerp en technische gegevens voorbehouden, zonder kennisgeving. La conception et les spécifications sont modifiables sans préavis. El diseño y especificaciones están sujetos a cambios sin previo aviso.
