Interim Manual
for
Hotpoint
A+
Frost Free
Side by Side
Fridge Freezers
Models
Covered
SXBD922FWDUK
SXBD925FWDUK
Introduced Sept. 2013
Note:
Temporary Document to be
replaced with a Service
Manual when available.
July 2015
Comm.
Code
84166
84163

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SXBD922FWDUK and is the answer not in the manual?

Questions and answers

Gail Roseman
May 15, 2025

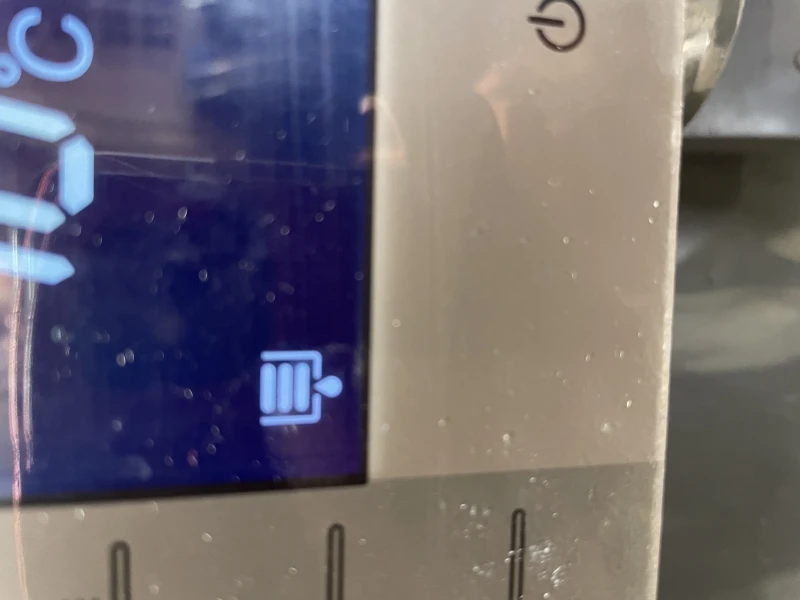

This symbol flashes

User image 682624421a18f
1 comments:
Mr. Anderson
May 22, 2025

The flashing symbol on the Hotpoint SXBD922FWDUK indicates that the quick-freeze or quick-cooling mode is active and awaiting confirmation. You must push the unlock button to confirm the selected mode.

This answer is automatically generated

Kuldeep
March 23, 2025

Wtaer coming through freezer compartment rather than draining down to the evaporating tray underneath compressor, how to cure

Summary of Contents for Hotpoint SXBD922FWDUK

  • Page 1 SM004197 ~ C00337512 Interim Manual Hotpoint Frost Free Side by Side Fridge Freezers Models Comm. Covered Code SXBD922FWDUK 84166 SXBD925FWDUK 84163 Introduced Sept. 2013 Note: Temporary Document to be replaced with a Service Manual when available. Information Indesit Company UK Ltd...
  • Page 2: Health & Safety

    Indesit Company HEALTH AND SAFETY For the servicing of refrigeration products, containing Isobutane R600a refrigerant. These instructions are in addition to any other Company procedures already published. Published primarily for Indesit Company engineers working in the UK or Southern Ireland, for which these instructions are MANDATORY.
  • Page 3: Health & Safety

    Indesit Company HEALTH AND SAFETY 18. Isobutane refrigerant must be vented to atmosphere, (outside of the premises e.g. via open window through the clear plastic hose supplied). 19. Isobutane is heavier than air and must not be vented within 3 metres of the following: sewer cover, cellar, drain or any similar construction lower than ground level, boiler air inlet/outlet, or near any possible source of ignition.
  • Page 4: Table Of Contents

    Indesit Company INDEX Health & Safety ............2 - 3 Introduction .
  • Page 5: Product Specifications

    Coding parameters Business Free Standing Family Side By Side Series 1 Width 90 Full No-Frost Series 2 From 541 To 560Litres Aesthetic Other Hotpoint User Interface CB_Electronic-Digit Brand Hotpoint Trade Mark Hotpoint Noise (dBA) Mix Segment CB_Side by Side A+...
  • Page 6: Color

    Indesit Company PRODUCT SPECIFICATIONS Dashboard type Dashboard colour Handle type External Handle colour Aluminium Colore supporto maniglia Plinth Note Marketing Estetica Colore guarnizione porta User Interface User Interface Elettronica-Display Display Digit Display Functions Child Lock , Holiday , Super No. of indicators Indicator type Cool , Super Freeze Special Functions/Accessories...
  • Page 7 Numero Stelle Freezer Documentation English (United Kingdom) Booklet Languages Approvals Ce , S [en-GB] Maniglia esterna Quadrio.3°livello freezer twist ice maker with cover, Guarantee HOTPOINT UK Marketing Remarks balconcini controporta freezer in colore trasparente.Estetica Midea. Loghi Speciali Sticker 7 of 17...
  • Page 8: Features

    Indesit Company FEATURES Ice-Maker Uninstall and Install 8 of 17...
  • Page 9: Function Introduction

    Indesit Company FUNCTION INTRODUCTION A. Operation of Automatic Ice Maker Automatic ice maker operates when the freezer reaches the needed temperature below 0? after a period prescriptive time when the refrigeratory is energized. Under normal temperature, the time between the refrigeratory’s first energizing and first making of ice is about 6 hours. The ice firstly made after the installation of the refrigeratory shall be thrown away because of plastic smell and impurities.
  • Page 10: Color

    Indesit Company Way to Replace the Filter The filter installed in this refrigeratory is refined by NSF42, which can filter the smell, chlorine and so on in running water. The replacement cycle of the filter is about 6 mouths. When replacement is needed, the indicator on the display board will turn on.
  • Page 11: Color

    Indesit Company Freezer Temperature Setting Function: Set the temperature of the freezer in the following range: -16°C to -24°C. 1°C changes every time of pushing. Operation: Temperature adjusting: push the button 'FRZ.TEMP.' once, and the icon of the freezer flashes. Push the button again to adjust temperature.
  • Page 12: Color

    Indesit Company Switch Key of Ice Maker Choose the switch key of ice maker, push to start ice-making function until the ice storage box is full, after taking ice cube, the ice storage will be filled automatically, and push this button again to cancel the ice-making function.
  • Page 13: Child Lock

    Indesit Company CHILD LOCK CHILD LOCK KEEPS TURNING ON The customer may complain that the child lock keeps turning itself back on after a few minutes of it being turned off. The appliance is working correctly! There is no need to fit any parts. The Child Lock setting is Automatic on these models.
  • Page 14: Door Adjustment

    Indesit Company DOOR ADJUSTMENT The attached photo shows instruction for adjusting the fridge door (right hand side door). This label is stuck to the Right Hand Outer Side Panel near the front Right Hand front foot of the appliance. 14 of 17...
  • Page 15: Lamp And Its Replacement

    Indesit Company Lamp and its Replacement The parameters of the lamps of the refrigerator, freezer and distributor and the replacement lamps are direct current (DC) 12V, LED. When lamps are replaced: • Unplug the plug to cut off the power. •...
  • Page 16 Indesit Company Upon connecting the refrigerator to power, measuring that the freezer temp is below -5!C, delay 2 hours before letting water in. Revolve ice motor to finish 2nd time ice separation process. Then start water inlet again and repeat the above ice building cycle. Ice Taking-out Press the switch on the display panel to select taking out ice or water, or smashed ice.
  • Page 17 Indesit Company Chart One: The matching list of error code and inputting circuit Error Code Relative Circuit Temp Test Circuit for Refrigerator Compartment Temp Test Circuit for Freezer Compartment Freezer Defrosting Temp Test Circuit Ambient Temp Sensor Fault Ice maker Fault Ice maker Temp Test Circuit Freezer draught fan on for 1.5 second, and then off for 0.5 second Condensate fan on for 1.5 second and then off for 0.5 second...
