INSTRUCTIONS FOR
230W Random
Orbital Palm Sander
Stock No.83639
Part No.RS230KA
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.

GENERAL INFORMATION

These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS230KA and is the answer not in the manual?

Questions and answers

Related Manuals for Draper RS230KA

Summary of Contents for Draper RS230KA

  • Page 1: General Information

    AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE........................ 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    This machine is designed for use in a domestic environment for light surface preparation and other detail work on wood and similar materials. 4.2 SPECIFICATION Stock no..........................83639 Part no........................RS230KA Motor: Rated voltage ...................... 230V~ Rated frequency ....................50Hz Rated input ......................

  • Page 6: Health & Safety Information

    IMPORTANT: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.

  • Page 7: Additional Safety Instructions For Sanders

    HEALTH & SAFETY INFORMATION 20. KEEP GUARDS IN PLACE: And in working order. 21. MAINTAIN TOOLS WITH CARE: Keep tools sharp and clean for the best and safest performance. Follow instructions for lubricating and changing accessories. All extension cables must be checked at regular intervals and replaced if damaged.

  • Page 8: Technical Description

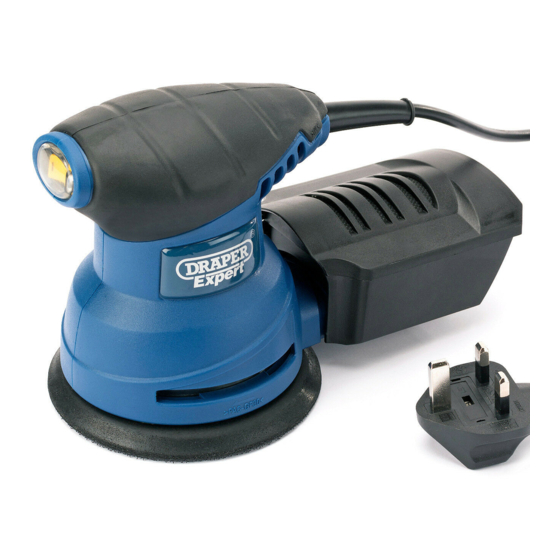

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION On/Off Rocker Switch. Hand Grip. BS Moulded Plug & Cable. Backing Pad.

  • Page 9: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the tool.

  • Page 10: Preparing The Sander

    PREPARING THE SANDER WARNING: Contact with or inhalation of harmful toxic FIG.1 dusts arising from sanding lead paint surfaces, woods, etc., can endanger the health of operators and bystanders. An approved dust mask shall be worn. Prior to connecting this machine to the power supply ensure the switch is in the “off”...

  • Page 11: Abrasive Disc Installation/Replacement

    PREPARING THE SANDER 8.2 ABRASIVE DISC FIG.2 INSTALLATION/REPLACEMENT – FIG.2 The backing pad and the abrasive disc are considered consumable items. The abrasive discs simply push on to the backing pad and are held in place with a hook and loop fastening. To ensure optimum removal of dust ensure the holes in the abrasive disc are aligned with those in the backing pad.

  • Page 12: Maintenance & Parts Replacement

    MAINTENANCE & PARTS REPLACEMENT Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. After use disconnect the tool from the power supply and vacuum the ventilation slots.

  • Page 13: Troubleshooting

    Reduced sanding 1. Abrasive disc worn, clogged 1. Replace abrasive disc † efficiency or cracked † A range of accessory abrasive discs are available from your local Draper stockist. Abrasive discs and the backing pad are both considered consumable items.

  • Page 14: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use. Do not expose to rain. Class II construction (Double insulated) Warning! Wear dust mask. Warning! Wear goggles.

  • Page 15: Disposal

    12. DISPOSAL 12.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 16 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDMC0416...
