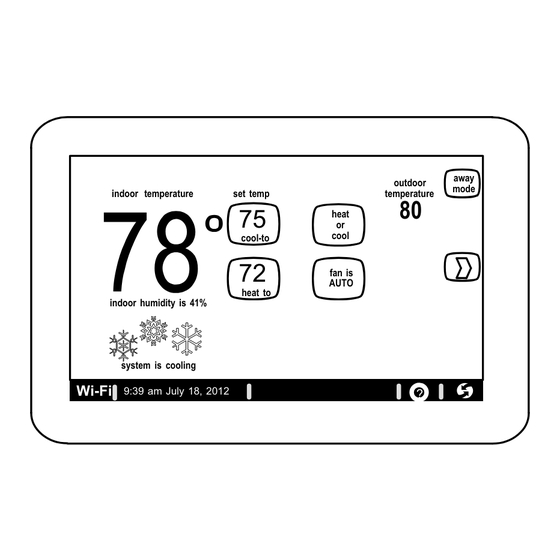

indoor temperature
set temp
indoor humidity is 41%
system is cooling
Wi−Fi
9:39 am July 18, 2012
THIS MANUAL MUST BE LEFT WITH THE HOMEOWNER
FOR FUTURE REFERENCE
*2P0912*
outdoor
temperature
80
75
heat
or
cool
cool−to
72
fan is
AUTO
fan is
fan is
heat to
AUTO
OFF
?

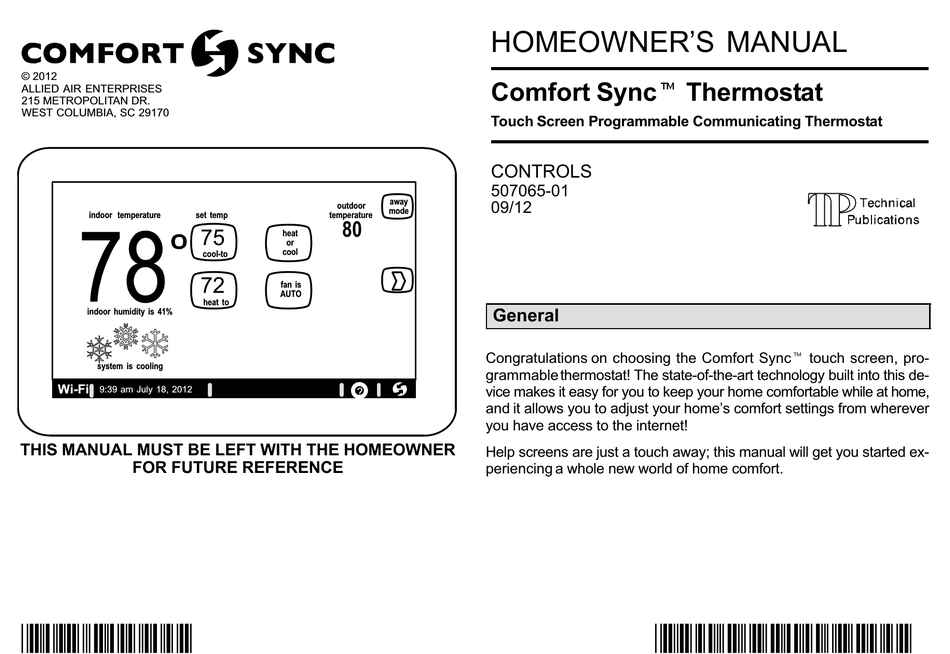

HOMEOWNER'S MANUAL
Comfort Synct Thermostat
Touch Screen Programmable Communicating Thermostat
CONTROLS
507065−01
away
09/12
mode
General
Congratulations on choosing the Comfort Synct touch screen, pro-
grammable thermostat! The state−of−the−art technology built into this de-
vice makes it easy for you to keep your home comfortable while at home,
and it allows you to adjust your home's comfort settings from wherever
you have access to the internet!
Help screens are just a touch away; this manual will get you started ex-
periencing a whole new world of home comfort.
*P507065-01*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comfort Sync 507065-01
Summary of Contents for Comfort Sync 507065-01
- Page 1 HOMEOWNER’S MANUAL © 2012 Comfort Synct Thermostat ALLIED AIR ENTERPRISES 215 METROPOLITAN DR. WEST COLUMBIA, SC 29170 Touch Screen Programmable Communicating Thermostat CONTROLS 507065−01 away 09/12 outdoor mode indoor temperature set temp temperature heat cool cool−to fan is AUTO fan is fan is heat to AUTO...
-
Page 2: Table Of Contents
Table of Contents Comfort Synct Thermostat The communicating Comfort Synct thermostat is an electronic 7−day Comfort Synct Thermostat ......programmable touch screen thermostat with color display. -
Page 3: Start Up
Start up In event of power failure If a power failure occurs, What you can do from the Home screen... when the power comes back on, the thermostat will reboot Typically, what every homeowner wants from an air and when complete, the HOME screen will return. conditioning system is to be able to control that system using a convenient device to What the Home screen tells you... -
Page 4: User Preferences Quick Reference Chart
User Preference Quick Reference Chart (to change, use tools shown on Page 5) user setting dashboard button Default page tools variables Fan Setting auto menu auto, on, circulate Humidifier OFF, ON system settings Page 6 Indoor Humidity Display OFF, ON toggle Dehumidifier OFF, ON... -
Page 5: Tools Used To Change Preferences
cool only network security key or passphrase password displays here as keys touched heat only auto heat or cool circulate emerg. heat programs typical menu options keyboard tool January 2012 09 : 39 am º set to time daylight format saving 12 HR enabled... -
Page 6: User Dashboard And Help
User Dashboard and Help (?) Screens When humidity display is ON, text near the screen bottom shows the From the Home screen, press the button to go to the dashboard. The current humidity. Touch the X" button to return to dashboard or the dashboard (figure 3) allows you to set the system to operate the way you want it to operate. -
Page 7: Clock Settings
Clock settings Use the press to CLEAN SCREEN button to give yourself a 30 second timer to clean off the screen (use a damp cloth to clean). Press clock settings (see figure 3). Figure 5 shows the Set current time and date screen. -
Page 8: Weather
Weather setting to re−enable that time period). Use the restore button to restore de- faults for the preset programs. Press "X button after changing; a pop−up Press button: weather (see fig. 3). Figure 7 shows a typical 5−day fore- prompts with back, discard and save options. Select save to save and re- cast screen. -
Page 9: Alerts
Alerts Figure 10 shows how an alert appears when it occurs after the system Access alerts through the dashboard has been put into operation. Use information on this screen to contact Press the Home screen alert icon ( ) or the alerts button on the dash- your HVAC serviceman. - Page 10 Navigate to different screens (see figure 12). You can clear alerts and set new reminders after routine service. You may also set a remind later" to be reminded at a more convenient time for doing the service. If a red alert (red ) is present, contact the party identified under service info.
-
Page 11: Reminders
Service Alert Codes Number Value Number Value Number Value Number Value Number Value 3000 Filter 1 3002 Humidifier Pad 3004 Maintenance 4000 User WiFi state change, disable 4002 Image file download failed 3001 Filter 2 3003 UV Light 3005 PureAir Maintenance 4001 Firmware download failed Reminders... - Page 12 Service reminders can be cleared or date−changed through the service alert’s clear and remind later buttons on the right side of the screen. Using remind later" service info alerts ( 1) of ( 1) your dealer You may choose remind later and then pick from the options list. When 9:39 am July 18, 2012 1−800−123−4567 X"...
-
Page 13: Service Information
Service Information HELP (?) Service information is normally filled in by the installer at time of initial When you touch the help icon (?) the screen changes to show an array of installation. However, you can change this information, when and if (?)’s located at "active"... -
Page 14: Adjust Temperature And Change Programs Program Hold
Adjust temperature and change programs Adjust temperature when programming is OFF Turn Programming ON When the If the programming is OFF, turn it on by programming is OFF, the mode button (shown in figure 18, labeled heat pressing the mode button (shown in figure 19, labeled heat or cool). The or cool) indicates a manual state (no mention of program"). - Page 15 Adjust temperature when program is ON Program HOLD You may select one of the hour buttons (1, 2, 8, or 24) if desired. If you select custom, a time/date appears and you have the option of setting When the program is ON, the mode button (shown in figure 20, labeled the hold for any length of time (see C in figure 20).
-
Page 16: Setting Humidity Controls
Setting humidity controls Remember that the humidify" control only operates while in the heating NOTICE mode and dehumidify" only operates while in the cooling mode. Humidifier and dehumidifier controls must be setup by the in- SYSTEM SETTINGS staller or these controls will not be visible. If your system has one or both of these features and the controls are not visible, contact fan settings humidity settings... -
Page 17: Enabling Wi−Fi From User Home Screen
Enabling the thermostat’s Wi-Fi feature from the Home screen Secure Connection Recommended! network security key or passphrase press any line to edit it none Make sure the router is capable of, and set to operate in displays information here as keys pressed network name (SSID) wireless network b"... -
Page 18: Registering Comfort Synct From User Home Screen
NOTE NETWORK’s marked with * - Selecting one of these wireless networks may result in an unreliable connection to your thermostat. Press help ?" for tips on improving signal strength. Register with Comfort Sync thermostat to enable remote access and online weather information choose a wireless network (returns to... - Page 19 Congratulations on your purchase of an Allied Com- fort Sync thermostat! You are only a few steps away from total control of your Comfort Sync system. Reg- istering your thermostat will allow you to remotely ac- cess it from anywhere in the world on any device with an internet connection.
-
Page 20: Computer Login To Comfort Synct Server
Personal Computer Welcome page; Interactive Demo; Online Comfort Synct information; Using Gelaskins Welcome home. Access all the great Wi−Fi enabled features on your Comfort Synct thermo- stat from our secure web portal. After signing in, you´ll be able to view your Comfort Synct system settings, adjust the temperature and view reminders and alerts ˘...
