ACU-RITE SENC 150 Installation Manual

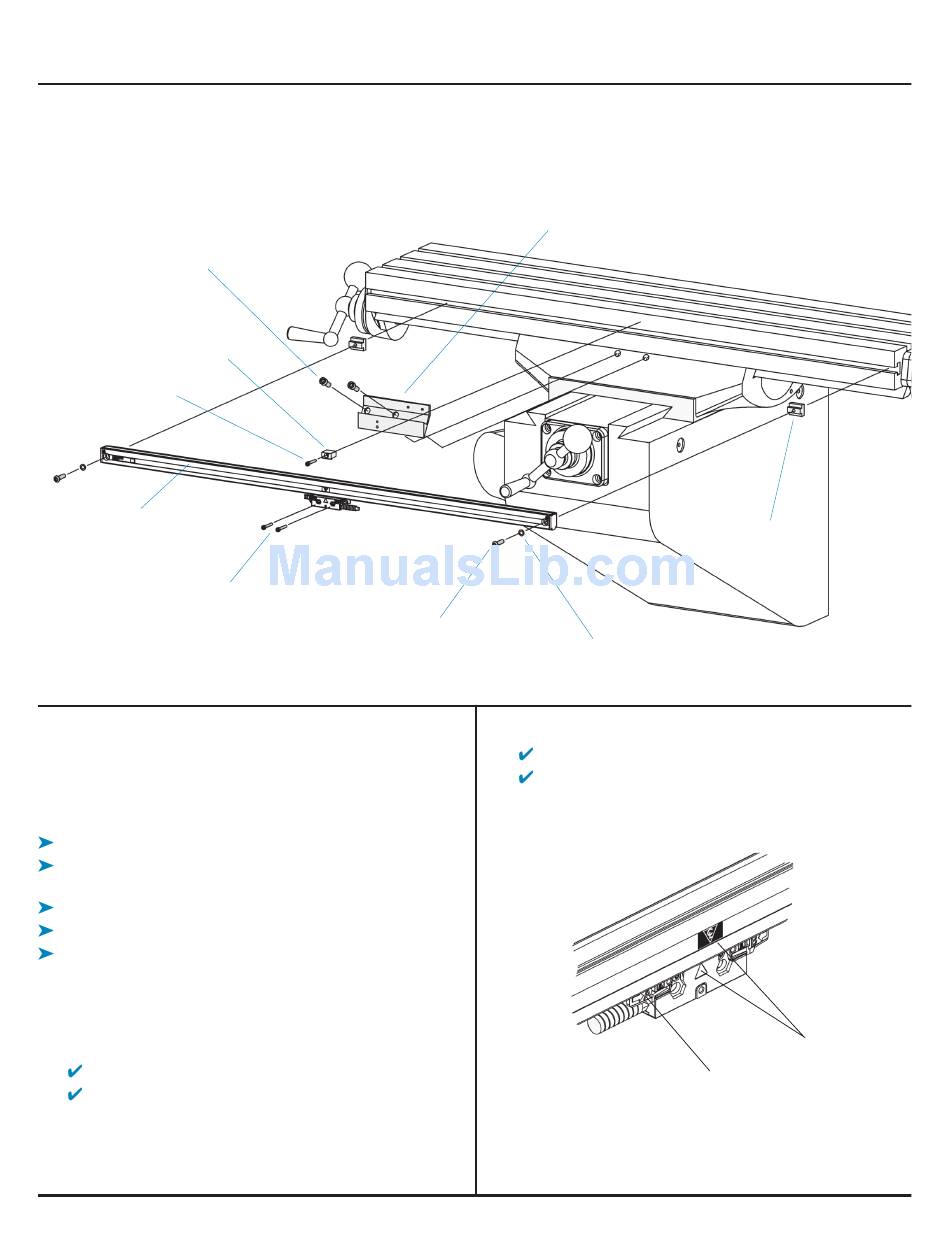

SENC 150
Longitudinal Installation ...
*Supplied with encoder hardware
**Supplied with center support hardware
3/8-16 x SHCS (existing)
**Center support
**8-32 x 3/4" SHCS
SENC 150 Encoder
*8-32 x 5/8" SHCS (2)
Mounting Information...
These are application instructions for mounting the
longitudinal "X" axis SENC 150 encoder.
Before proceeding:
Please read the instructions completely.
Insure that the correct length encoder is being used
for the total axis travel.
Keep the reading head centered during installation.
Clean the mounting surfaces.
Save the alignment brackets with the Encoder
Reference Manual after installation is completed.
First Steps ...
Machine
Move the table to its center of travel.
Mark the axis so that it can be re-centered easily.
P.N. 385033-121 Ed C 2/06
Encoder Installation Manual For: Bridgeport Series I
Reading head bracket
1/4-20 x 1-1/8" BHCS (2)
Encoder
Center reading head ...
• Slide the reading head and brackets along the scale
case until the center marks on the scale case and
reading head are aligned.
Installation Manual 385033-000
1
Vertical Knee Mill and other similar mills
Longitudinal X Axis front table mount
*M6 Flat washer (2)
.017" thick
Unpack encoder in a safe, convenient location.
Do not remove the reading head alignment
brackets until instructed.
Alignment bracket (2)
T-Nut (2)
Align
center
marks
Acu-Rite Companies Inc.
