ACU-RITE ENC 150 Mounting Instructions

ACU-RITE
Cross feed ...
8-32 x 1/4" SHSS (2)
1/4-20 x 3/4" BHCS (2)
& * Flat washer .017"
thk.
1/4-20 x 3/8" SHSS (2)
8" Encoder
8-32 x 3/4" SHCS (2)

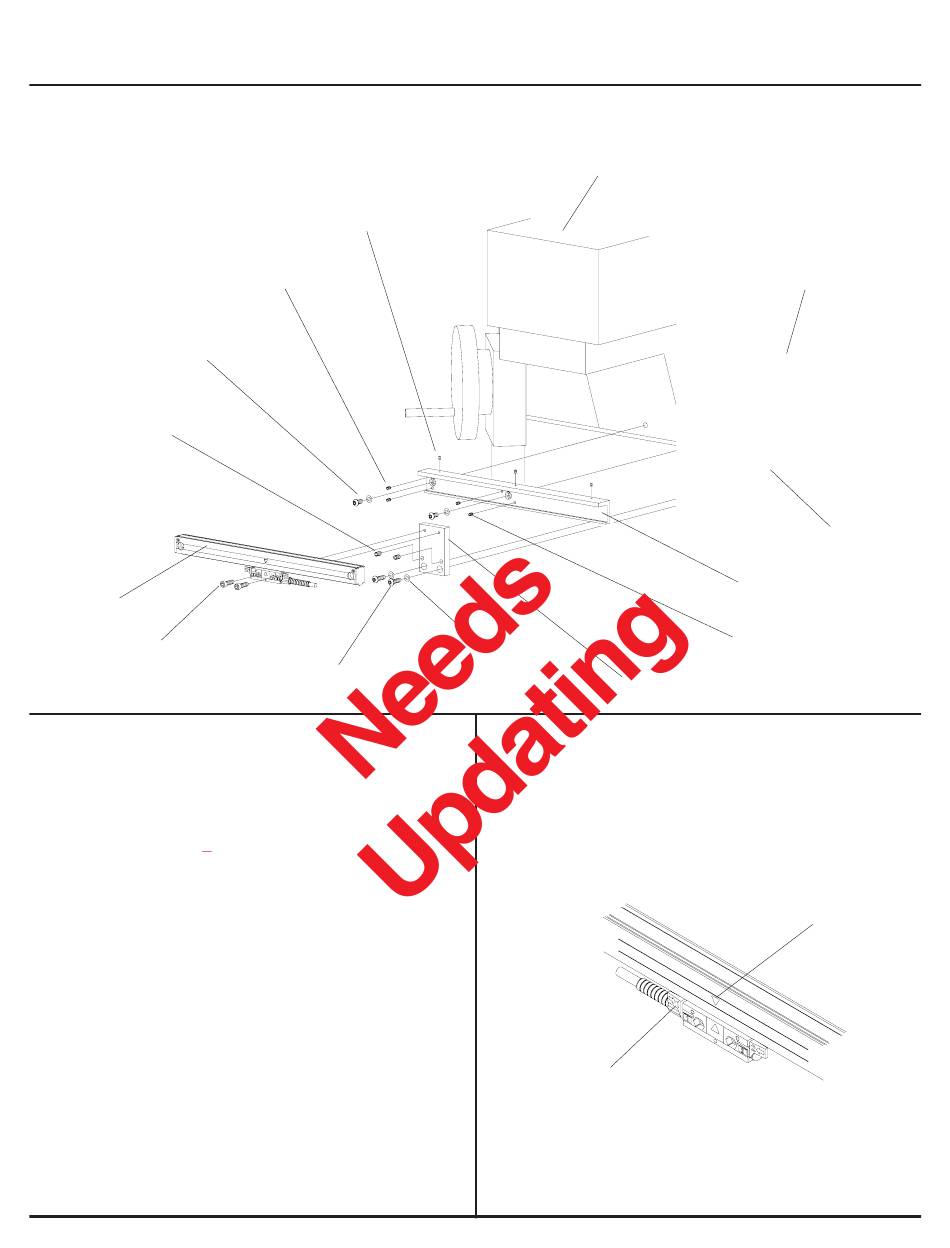

These are application instructions for mounting the 8"
ENC 150 encoder to the cross feed axis.
Before proceeding:
➤ Read the instructions completely before beginning.
➤ Axis travel must be < encoder measuring length.
➤ Clean the mounting surfaces.
➤ Adjust drill depths as required.
➤ Save the alignment brackets after removal.
First Steps ...
Machine
✔ Move the carriage to its center of travel.
✔ Mark the axis so that it can be re-centered easily.
P.N. 385076-124
®
M4 x 8MM SHSS (3)
1/4-20 x 1-1/4" BHCS (2)
ENC 150 Encoder Mounting Instructions
For the K.O. LEE SE 6-12 Surface Grinder
Cross Feed Installation: Brkt Kit: 385076-08
Table
1/4" Flat washer (2)
Encoder
✔ Unpack the encoder in a safe, convenient location.
✔ Do not remove the reading head alignment
brackets until instructed.
Cross feed installation ...
Alignment
bracket (2)
• Slide the reading head and brackets along the
scale case until center marks on scale and
reading head are aligned.
1
Carriage
Spar
8-32 x 3/8" SHSS (2)
Reading head bracket
Base
Align center
marks
Edition A
