ACU-RITE SENC 150 Installation Manual

SENC 150

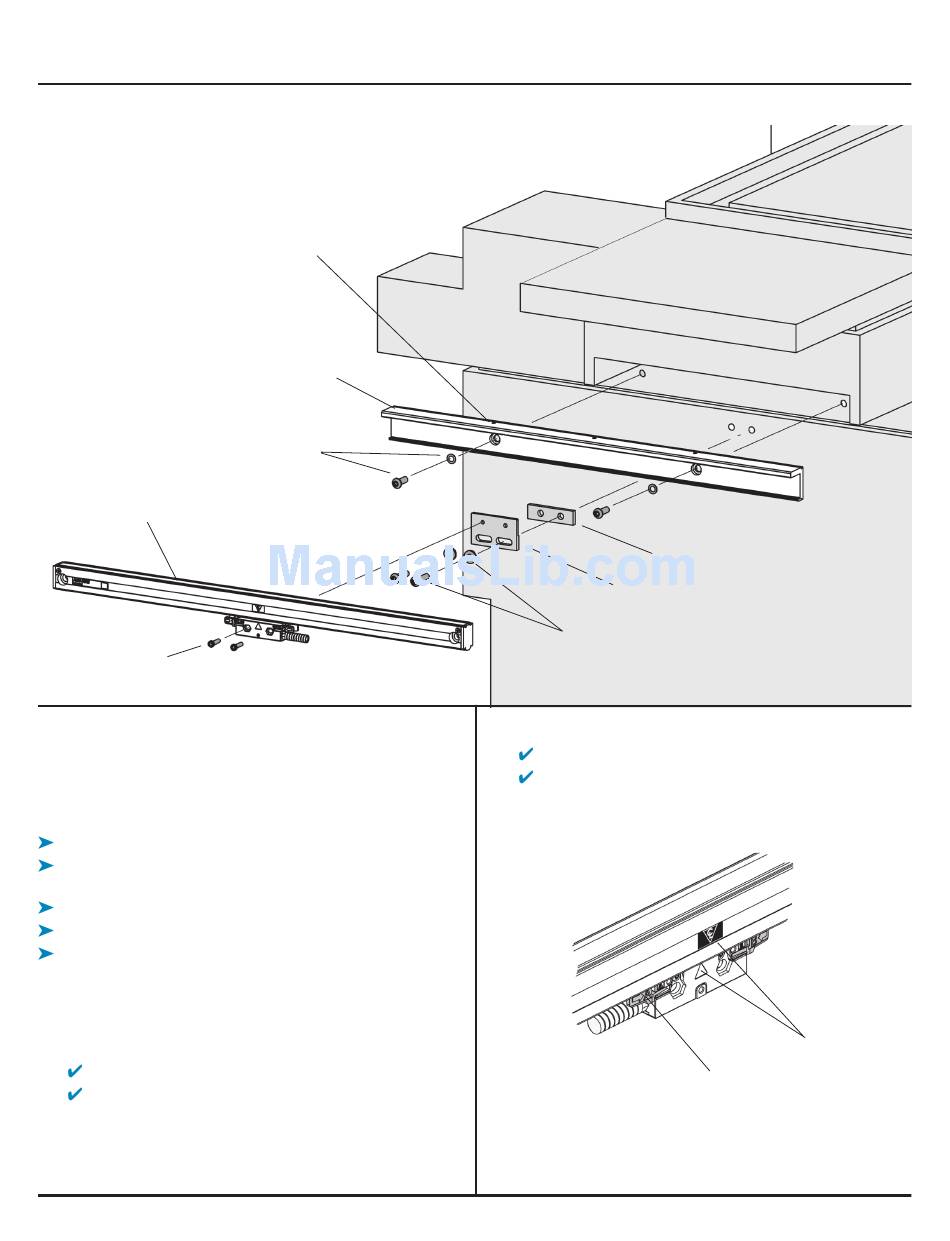

Cross Feed Installation ...
* Supplied with encoder hardware
1/4-20 x 1/2" BHCS (2)
& * Flat washer .017" thk.
SENC 150 Encoder
*8-32 x 3/4" SHCS (2)
Mounting Information...
These are application instructions for mounting the
Cross feed "X" axis SENC 150 encoder.
Before proceeding:
Please read the instructions completely.
Insure that the correct length encoder is being used
for the total travel.
Keep the reading head centered during installation.
Clean the mounting surfaces.
Save the alignment brackets with the Encoder
Reference Manual after installation is completed.
First Steps ...
Machine
Move the carriage to its center of travel.
Mark the axis so that it can be re-centered easily.
P.N. 385076.130 Ed B 2/06
M4 x 8mm SHSS (3)
Spar
Installation Manual 385076-000
Chevalier FSG-2A 1224 Surface Grinder
Carriage
Base
Reading head bracket
*1/4-20 x 1" SHCS (2)
& Flat washer
Encoder
Unpack encoder in a safe, convenient location.
Do not remove the reading head alignment
brackets until instructed.
Center reading head ...
• Slide the reading head and brackets along the scale
case until the center marks on the scale case and
reading head are aligned.
1
Encoder Installation Manual For:
Cross Feed "X" Axis
Table
Spacer
Align
center
marks
Alignment bracket (2)
Acu-Rite Companies Inc.
