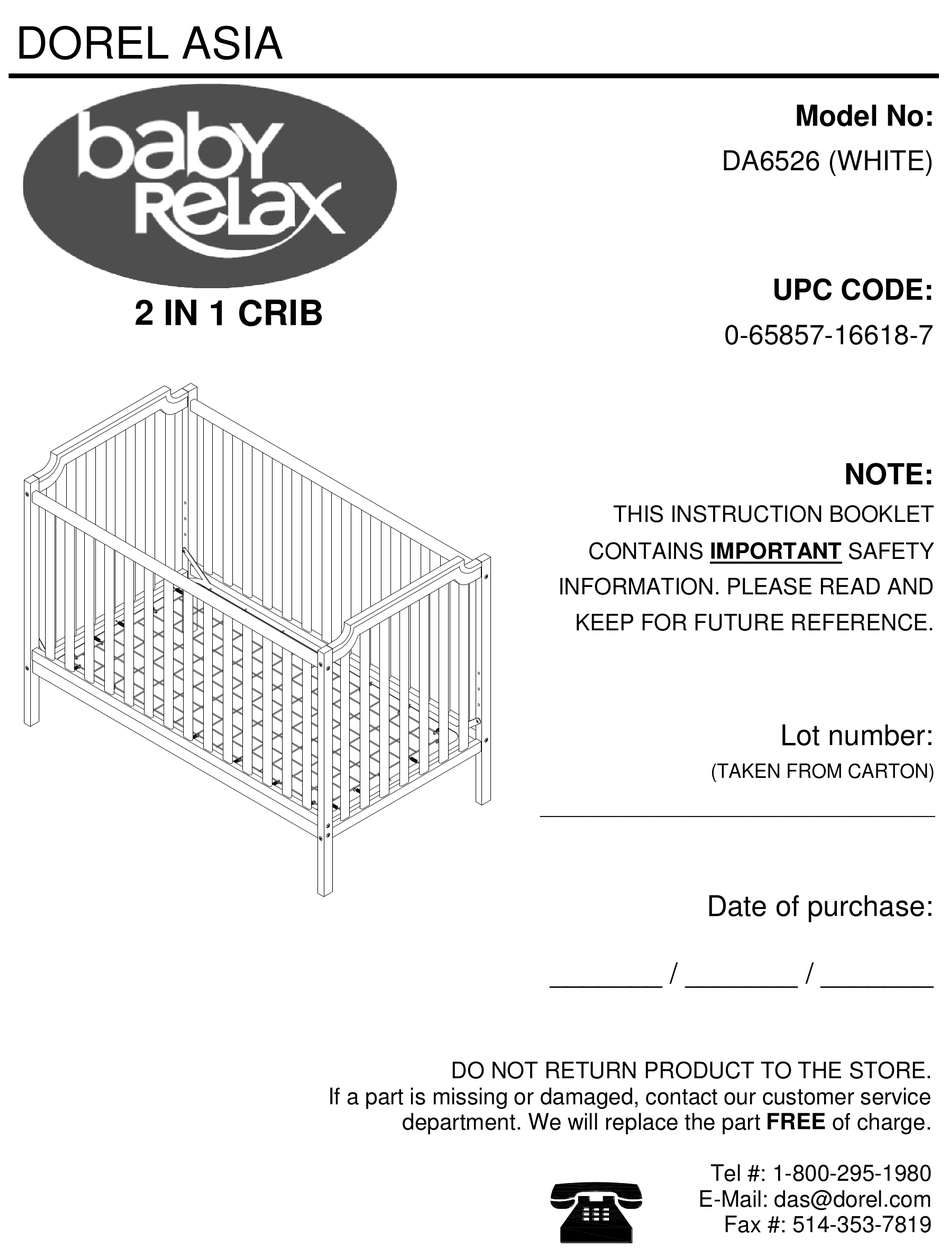

DOREL ASIA
2 IN 1 CRIB
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
THIS INSTRUCTION BOOKLET
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSISTAN
1-800-295-1980
DO NOT RETURN PRODU
E-MAIL:DAS@DOREL.CO
Model No:
DA6526 (WHITE)
UPC CODE:
0-65857-16618-7
NOTE:
Lot number:
Fax #: 514-353-7819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA6526 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baby Relax DA6526

  • Page 1 DOREL ASIA Model No: DA6526 (WHITE) UPC CODE: 2 IN 1 CRIB 0-65857-16618-7 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
  • Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
  • Page 3: Care And Cleaning

    NOTES * Ensure all parts and components are present before beginning assembly. * Assemble on a soft, smooth surface to prevent damage to product finish. * Phillips head screw driver is not included. * DO NOT use power tools. * CAUTION: Adult assembly required. * Assembly will require two people.
  • Page 4: Hardware List

    2 IN 1 CRIB DA6526 HARDWARE LIST Ø1/4" X 13mm X 40mm Ø1/4" X 13mm X 70mm BOLT BOLT 2 PCS 8 PCS Ø1/4" X 13mm X 18mm Ø1/4" X 13mm X 60mm MATTRESS SUPPORT BOLT BOLT 16 PCS 10 PCS Ø8mm X 40mm...
  • Page 5: Parts List

    2 IN 1 CRIB DA6526 PARTS LIST LEFT FRONT POST RIGHT FRONT POST LEFT BACK POST 1 PC 1 PC 1 PC RIGHT BACK POST BACK PANEL LEFT SIDE PANEL 1 PC 1 PC 1 PC RIGHT SIDE PANEL FRONT PANEL...
  • Page 6 2 IN 1 CRIB DA6526 CRIB ASSEMBLY INSTRUCTION NOTE: When inserting bolts, turn clockwise until tight. Then loosen 1/2 - 3/4 of a turn. After crib is completely assembled, return to each bolt and tighten. Use wax or soap on all bolts to facilitate assembly.
  • Page 7 2 IN 1 CRIB DA6526 STEP 1 Insert wood dowels (6) into left side panel (D). Attach left front post (A1) & left back post (B1) to left side panel (D) with bolts (2) and barrel nuts (7) as shown. Use Allen Key (5) to tighten all bolts (2).
  • Page 8 2 IN 1 CRIB DA6526 STEP 2 Insert wood dowels (6) into right side panel (E). Attach right front post (A2) & right back post (B2) to right side panel (E) with bolts (2) and barrel nuts (7) as shown. Use Allen Key (5) to tighten all bolts (2).
  • Page 9 2 IN 1 CRIB DA6526 STEP 3 Attach the back panel (C) to left back post (B1) of left side panel (D) with bolts (4) and barrel nuts (7) as shown. Use Allen Key (5) to tighten all bolts (4).
  • Page 10 2 IN 1 CRIB DA6526 STEP 4 Attach mattress support (H) to the posts with mattress support bolts (3). Use Allen key (5) to tighten the bolts (3). ③ INCORRECT- Raised edge should face down -this photo shows mattress support is upside down.
  • Page 11 2 IN 1 CRIB DA6526 STEP 5 Attach front rail (G) to left front post (A1) of left side panel (D) with bolt (4) and barrel nut (7). Use Allen key (5) to tighten the bolt (4). Repeat this step to attach front rail (G) to right front post (A2) of right side panel (E).
  • Page 12 2 IN 1 CRIB DA6526 STEP 6 Attach front panel (F) to left front post (A1) of left side panel (D) with bolts(1) (4) and barrel nuts (7). Use Allen key (5) to tighten the bolts (1)(4). Repeat this step to attach front panel (F) to right front post (A2) of right side panel (E).
  • Page 13 2 IN 1 CRIB DA6526 STEP 7 Fasten the front panel (F) and front rail (G) with bolts (4). Use Allen key (5) to tighten the bolts (4). NOTE: DO NOT throw away this instruction manual. Use the crib pouch attached to the mattress support to store this manual for future use.
  • Page 14 2 IN 1 CRIB DA6526 WARNINGS: * ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES (69CM BY 131CM) WITH A MINIMUM THICKNESS OF 4 INCHES (10CM) BUT NOT EXCEEDING 6 INCHES (15CM). * The day bed is not intended for children under 15 months of age or over 50 lbs (22.7 kgs).
  • Page 15 2 IN 1 CRIB DA6526 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 16: Customer Service

    MODEL #: DA6526 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
