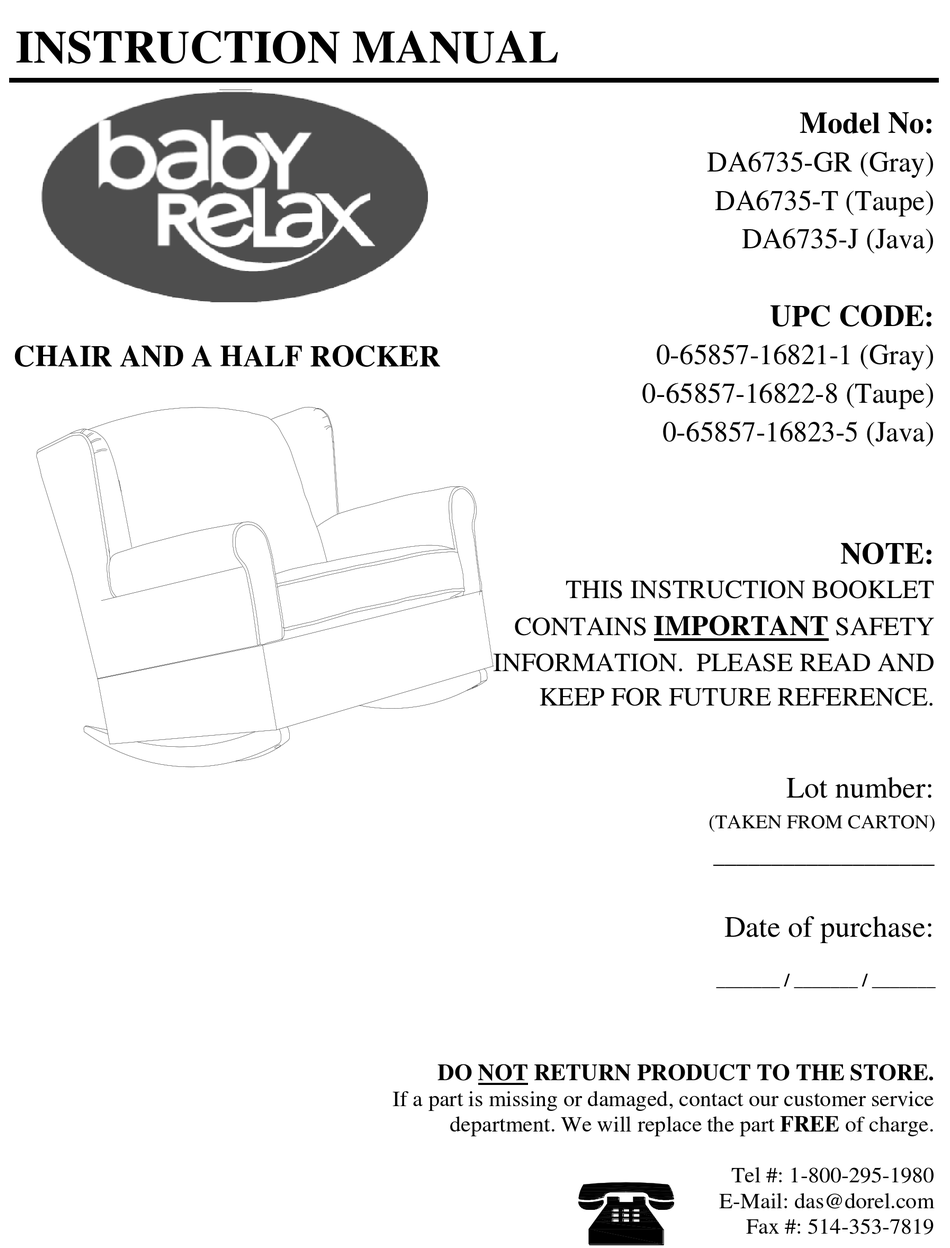

INSTRUCTION MANUAL
Model No:
DA6735-GR (Gray)
DA6735-T (Taupe)
DA6735-J (Java)
UPC CODE:
0-65857-16821-1 (Gray)
CHAIR AND A HALF ROCKER
0-65857-16822-8 (Taupe)
0-65857-16823-5 (Java)
NOTE:
THIS INSTRUCTION BOOKLET
IMPORTANT
CONTAINS
SAFETY
INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
Lot number:
(TAKEN FROM CARTON)
___________________
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: 1-800-295-1980
NEED HELP!
E-Mail: das@dorel.com
CALL US FOR ASSIST
Fax #: 514-353-7819
1-800-295-1980
DO NOT RETURN PRO
Advertisement
Table of Contents
Related Manuals for Baby Relax DA6735-GR
Summary of Contents for Baby Relax DA6735-GR
- Page 1 INSTRUCTION MANUAL Model No: DA6735-GR (Gray) DA6735-T (Taupe) DA6735-J (Java) UPC CODE: 0-65857-16821-1 (Gray) CHAIR AND A HALF ROCKER 0-65857-16822-8 (Taupe) 0-65857-16823-5 (Java) NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number:...
-
Page 2: Care And Cleaning
CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No. -
Page 3: Hardware List
CHAIR AND A HALF ROCKER DA6735-GR / DA6735-T / DA6735-J HARDWARE LIST Ø5/16" X 45mm Ø22 X 1.5mm Ø12.5 X 1.2mm BOLT FLAT WASHER SPRING WASHER 2 PCS 11 PCS 11 PCS Ø5/16" X 63mm M5 X 60mm BOLT ALLEN KEY... - Page 4 CHAIR AND A HALF ROCKER DA6735-GR / DA6735-T / DA6735-J STEP 1: Attach left arm (C) to chair back (B) by inserting the metal bracket on chair back (B) into the metal glide on left arm (C). Push the chair back (B) with a downward force to secure it into place.
- Page 5 CHAIR AND A HALF ROCKER DA6735-GR / DA6735-T / DA6735-J STEP 2: With the help of another person, gently place the unit onto seat base (A) and pull back the fabric lining underneath seat base (A). Secure left arm (C), right arm (D) and chair back (B) to seat base (A) wiht flat washers (2), spring washers (3) and bolts (4).
- Page 6 CHAIR AND A HALF ROCKER DA6735-GR / DA6735-T / DA6735-J STEP 3: With the help of another person, gently turn the unit upside down. Attach the legs (F) to seat base (A) with flat washers (2), spring washers (3) and bolts (4). Use Allen key (5) to tighten the bolts.
- Page 7 CHAIR AND A HALF ROCKER DA6735-GR / DA6735-T / DA6735-J STEP 4: Place seat cushion (E) on the rocker.
- Page 8 CHAIR AND A HALF ROCKER DA6735-GR / DA6735-T / DA6735-J CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
-
Page 9: Customer Service
MODEL #: DA6735-GR (Gray) / DA6735-T (Taupe) / DA6735-J (Java) Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
