Thank you for Purchasing SEA&SEA products. Please read this instruction manual carefully prior to using this product. Only with
a thorough understanding of this manual's content will you be able to use the product correctly. After reading the manual, please
be sure to keep it in a place where you can easily come back to it at any time.

Precautions

Failure to heed the precautions listed below could result in serious consequences. To prevent injury or damage to yourself and/or others,
please observe the precautions as they contain highly important information related to personal and product safety.
CAUTION
Situations that could result in property damage or personal injury.
CAUTION
Carefully observe the instruction manual for the compatible lens for
this product before use.
This product includes an O-ring (divided into pieces) for interlocking
the lens and the gear. In some cases, the interlocking may be too
tight or loose when attaching the gear, due to deviation in the lens
diameter.
① When too tight
Remove all of the O-ring pieces from inside the gear and cut them
shorter with scissors. Re-insert these pieces into the groove inside
the gear, providing ample space between the pieces. Adjust the
length of the O-ring pieces for appropriate tightness.
* Do not force the lens into the gear when the interlocking is too
tight, because this may result in damage to the lens.
② When too loose
Replace the O-ring with the thicker O-ring that was also supplied with
this product. If it becomes too tight with the thicker O-ring, adjust
the interlocking tightness as explained above ①. If it is still too loose,
This product is designed to make lens zooming possible utilizing the focus/zoom dial on SEA&SEA digital SLR camera housings.
CAUTION
When using this product, you cannot shoot with manual focus. Please shoot with auto focus.

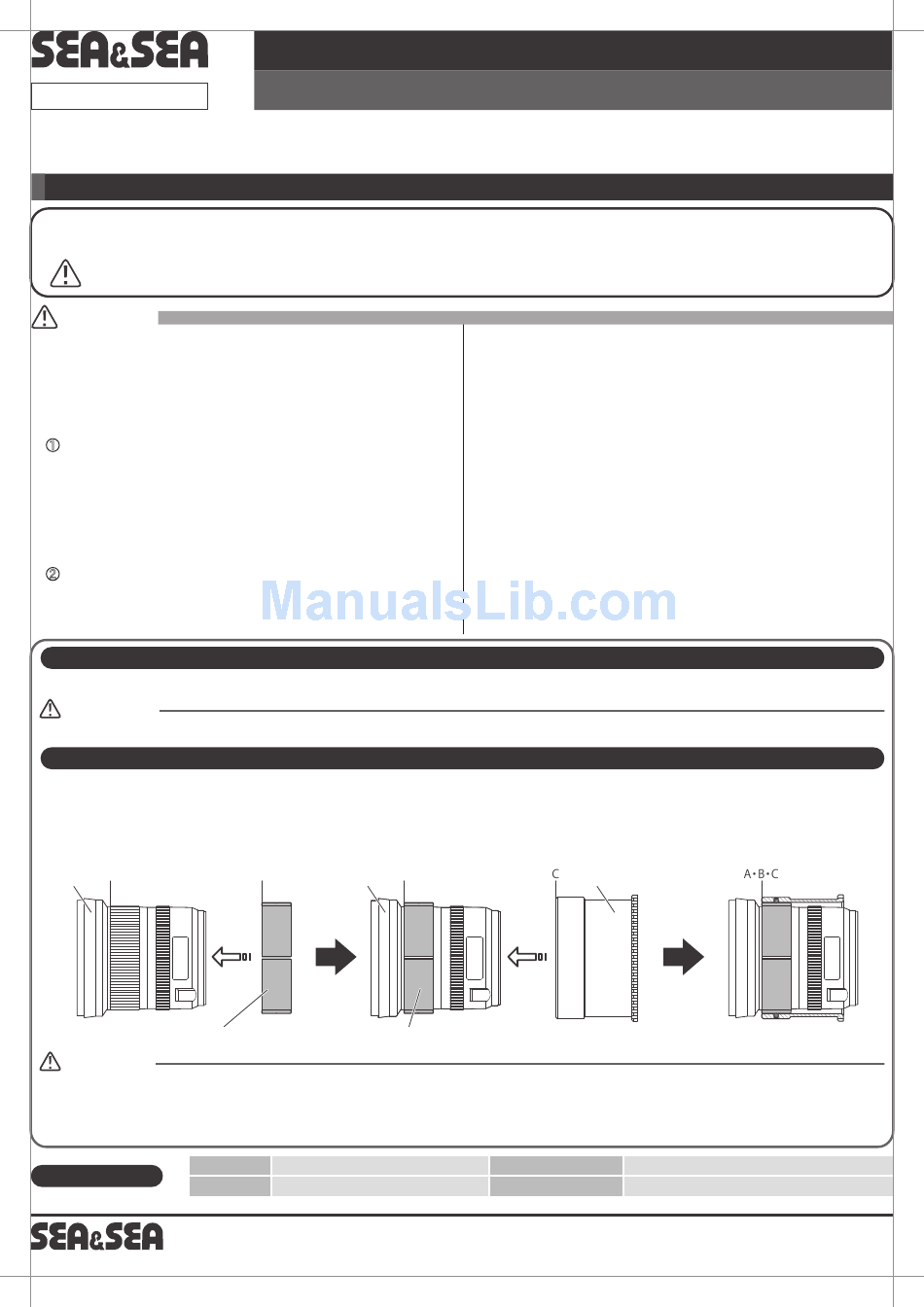

Hold the zoom gear spacer parallel to the lens as shown in figure 1, set so that the positions of A and B overlap as
shown in figure 2, hold the lens gear level and insert until A,B, and C overlap as shown in figure 3. If the rubber
grip on the barrel of the lens becomes dislodged from the lens, please remove the gear and follow the above
procedure again.
A
Lens
gear spacer
CAUTION
After mounting the camera in the housing, always try operating the focus/zoom dial on the housing to make sure that the lens works smoothly and
properly with the gear attached. If the gear is not properly attached to the lens or is out of parallel alignment, the manual focus operation may not work
properly.
Ensure that the rubber pieces inside the gear do not come out of the grooves when detaching the gear from the lens.
Construction

Specifications

Weight
SEA&SEA SUNPAK Co., Ltd.
1-4-6, Kitasenzoku, Ohta-ku, Tokyo, Japan 145-0062 TEL. +81-3-5701-5533
World Customer Service Center
http://www.seaandsea.jp
Canon EF-S 10-22mm F3.5-4.5 USM Zoom Gear
Zoom Gear

How to Attach to the Lens

B A ・ B
Lens
gear spacer
Fig.1
Corrosion-resistant aluminum alloy
Approx.113g (Including Spacer:15g / 0.5oz)
TEL. +81-48-255-8512
Instruction Manual
use the gear sheet which is included in the package. Cut the sheet
into 3 to 6 pieces with scissors, and apply them beside the groove
inside the gear.
* The thicker O-ring may not be compatible with some lenses due
to size restrictions. In this case, adjust the tightness by following
the above procedure ① and using the gear sheet included in the
package.
Always make sure that the gear and the lens work properly after
adjustment.
SEA&SEA SUNPAK Co., Ltd. will not be responsible for the replacement
or compensation for cameras, lenses or those accessories damaged
due to your invalid operation.
SEA&SEA SUNPAK Co., Ltd. assumes no liability for compensation of
loss of captured images or expenses caused by loss of images,
even if you are unable to shoot due to a product defect or malfunction.
SEA&SEA SUNPAK Co., Ltd. assumes no liability for errors or
discrepancies in this manual.
Gear
Fig.2
Dimension (DIA×D) Approx.φ
Accessories Gear sheet (stick-on), O-ring, Instruction Manual
* The specifications and appearance are subject to change without notice.
Fig.3
88×56.8mm / 3.5×2.2inches
0534-Z-01A
