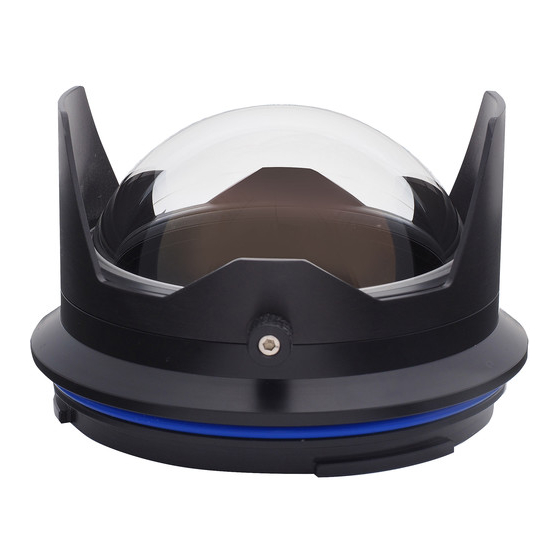

Sea&Sea Optical Dome Port II 100 S Instruction Manual

Optical Dome Port II 100 S
30133
Thank you for your purchase of SEA&SEA product. For proper
operation of the product and safe handling, please read the
following instructions carefully before use. This manual should
be retained for future reference.
Safety Precautions
Failure to heed the precautions listed below could result in
serious consequences. To prevent injury or damage to yourself
and/or others, please observe the precautions as they contain
highly important information related to personal and product
safety.
Situations that could result in property
CAUTION
damage or personal injury.
CAUTION
Unauthorized disassembling and/or modification could result in
malfunction or flooding, and void product warranty. Take the product to
a SEA&SEA authorized service center for repair or inspection.
Do not open the product in a wet or sandy environment. Protect the
interior from moisture and debris in order to prevent malfunction or
flooding.
Avoid strong shocks/impacts or excess stress to prevent malfunction,
damage or breakdown. Make sure that the product has been securely
mounted to other products in order to prevent injury, fall or missing.
Do not carry the camera or housing by holding the accessories such
as arm, cable, strobe, etc. Heavy components may fall and cause
damage or injury.
Do not leave the product in places with hot temperatures such as
inside of a car or in a car trunk in summer.
Do not store the product in wet or high humidity place, to avoid mold,
rust, corrosion or malfunction.
Do not store the product wet. Thoroughly dry the surface using a soft
non-scratching cloth to prevent spot marks.
SEA&SEA SUNPAK Co., Ltd. will not be responsible for the
replacement or compensation for cameras, lenses or those
accessories damaged due to your invalid operation.
SEA&SEA SUNPAK Co., Ltd. assumes no liability for compensation
of loss of captured images or expenses caused by loss of images,
even if you are unable to shoot due to a product defect or malfunc-
tion.
SEA&SEA SUNPAK Co., Ltd. assumes no liability for errors or
discrepancies in this manual.
Maintenance and Storage
Never use chemicals, cosmetics, any petroleum solvents such as
paint thinner, or neutral detergent on the product. They may deform
and damage the product.
After each use in salt water, make sure it's watertight, then soak it
sufficiently in fresh water.
Insufficient soaking causes damage by salt to the product. Salty
residue may be left on the product where it will crystallize as it
evaporates. Crystallized salt is hard to dissolve and difficult to be
removed once formed, and it will result in water leakage.
After rinsing, dry the product well with a soft dry cloth, then let the
product dry in the shade, out of direct sunlight.
Do not dry the product by heating (using a hair dryer, for example).
Heating can deform and damage the product.
If you will not use the product for an extended period of time, store it
away from high temperatures, high humidity, direct sunlight, or
extreme cold.
Do not store the product with naphthalene or camphor mothballs, or
in locations such as a laboratory where chemicals are used. This
environment can cause mold, rust, corrosion or malfunction.
After using the product, maintain the O-rings before storing.
Examine the O-rings before and after each dive. We recommend
early exchange of the O-rings, at least once a year.
Every two years we recommend a complete overhaul of O-rings
regardless of the frequency in use, for the best performance of the
product.
SEA&SEA SUNPAK Co., Ltd.
1-4-6 Kitasenzoku, Ohta-ku, Tokyo, Japan 145-0062 TEL. +81-3-5701-5533
World Customer Service Center TEL. +81-3-6421-1566
http://www.seaandsea.jp
1712-Z-01A
Instruction Manual
Identification of Parts
LOCK mark
Dome
Hood
O-ring
Port Lock hole
for Extension Ring 20L
Port Lock
Removing and refitting the hood
The hood can be removed by loosening the two fixing screws.
When refitting, align the hood
If it is difficult to fit or remove the hood, mount the dome port on the
housing for extra stability.
Hood
Maintaining the O-ring
This product is kept watertight by the O-ring. To keep the O-ring
functioning properly, please observe the following before setting up.
Make sure to remove the O-ring when maintaining.
For detailed O-ring maintenance methods, please see the O-ring
maintenance manual.
The O-ring is a consumable item, and it generally lasts for one
year. It is advisable to replace it early.
Specifications
Construction Body:Corrosion-resistant aluminum alloy
Dome:Optical glass, Hood:POM resin
Depth rating 100m (333feet)
Weight Approx. 372g (13.1oz)
Dimensions Approx. ϕ130(DIA)×64.5(D)mm / 5.1×2.5 inches
Accessories Instruction Manual,
Port Case
* Specifications and appearance are subject to change without notice.
OPEN mark
Fixing screw
Fixing screw
Dome Port
Optical Dome Port Cover,
(Current as of Oct.2017)
