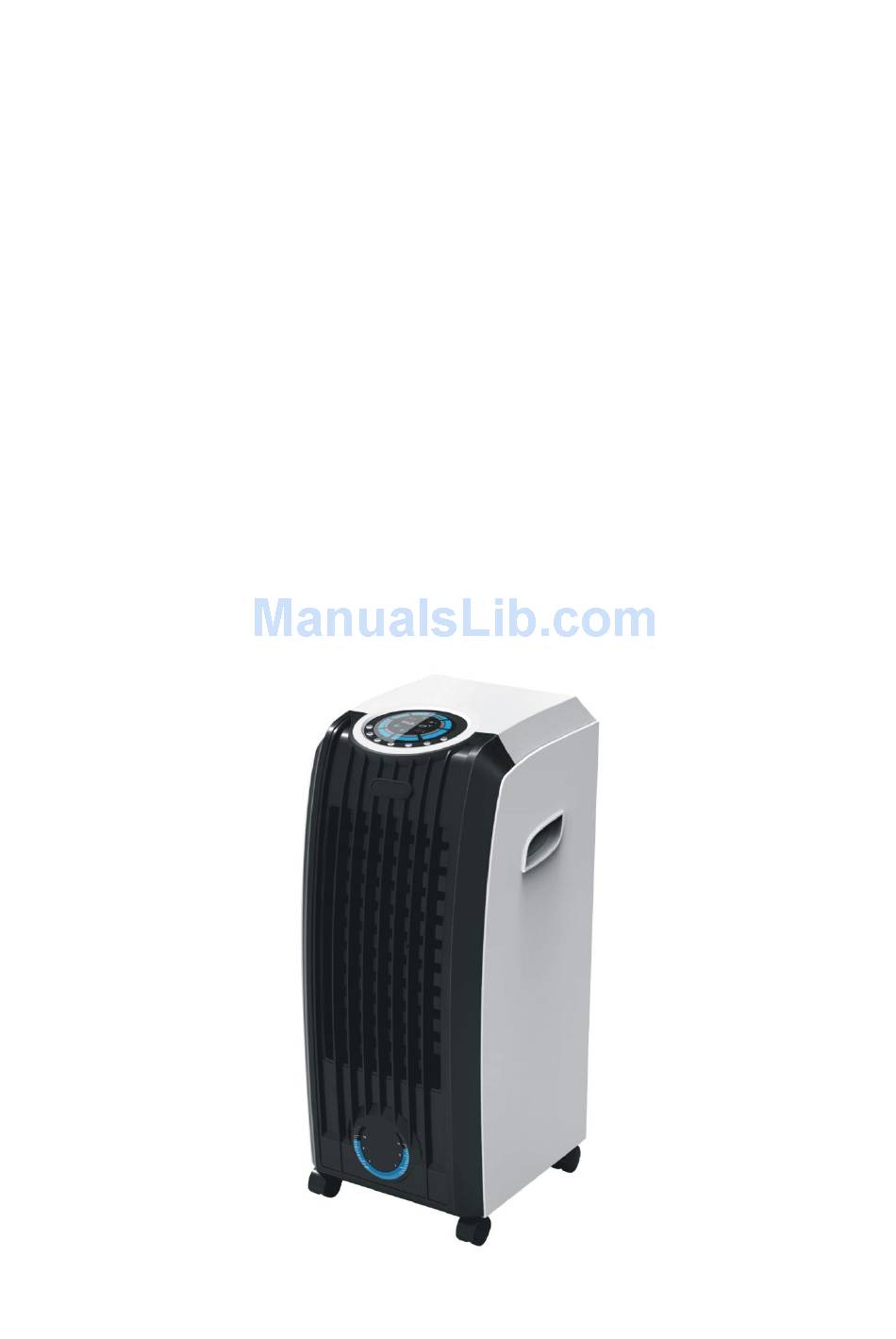

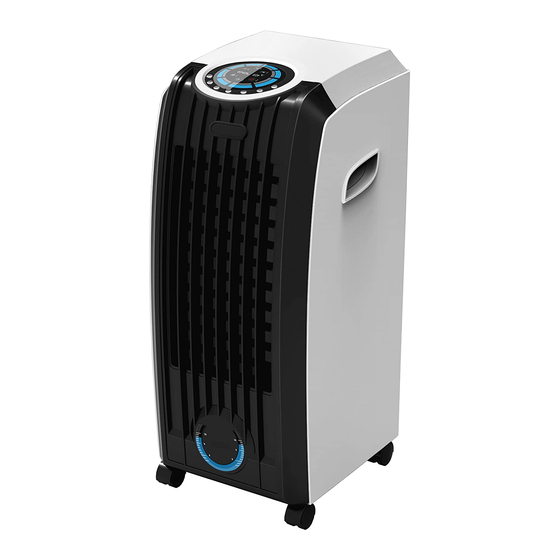

- Page 1 INSTRUCTION MANUAL AIR COOLER AND HEATER Model No.: MUEV-2000 ECO...
- Page 2 FUNCTIONS 1.The principle of humidification by cooling;:took cooling water from the water tank by water pump or synchronous motor,after reaching the top,the cooling water will flow through wetted pad,then bellowed off humid cool air rounding the wetted pad by rotational wind wheel. 2.Heating function: heated by the lightless PTC heating unit,high efficiency of conversion between electricity and heat,rapid warming.
-
Page 3: Operation
ASSEMBLING 1.open the package and take out the air cooler and warmer. 2.Draw out the water tank 1/2,pour clean water into the tank. please pay attention to the water lever. pour into the water over min level"3"but no more than max Level "8". -
Page 4: The Use Of Remote Control
You also can swing the blades transversely by your hands,choose the wind direction up an down. 4. Anion key: press this key,the anion generation works and releases anion,at the same time the anion indicator light is on.It cancel anion when you press again. - Page 5 Attention: a.Do not mix old battery with the new one in use. b.b.Please take out the batteries for long time no use. THE USE OF ICE BOX The ice crystal has a particular feature of keeping cool,it can absorb heat from water and let the water temperature in the water tank below environmental temperature,so the air will be much cooler.
- Page 6 4. If the supply cord is damaged,it must be replace by a special cord or assembly available from the manufacturer or its service agents. 5. When the appliance is not in use,switch it off and unplug it. 6. Do not insert things to air outlets and inlets,in order to avoid damage. 7.
- Page 7 18. The appliance must not the located immediately below a socket outlet. The rating current of socket should exceed 10A. 19. Do not use the appliance in the immediate surrounding of a bath,a show or a swimming pool. 20. This appliance is not intended for use by persons including children with Reduced physical,sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 8 Attention: the wetted pad must be installed flatly,in order to avoid leaking. 3. Clean the water tank Unplug the power plug,draw out 1/2 the tank,pull the water filter up and use soft brush clean it.use neutral detergent and soft cloth rub inside of the tank. Note: if you need to clean the tank completely,you should unscrew the screw under the base,also should unscrew the screw of water pump inside the tank.
- Page 9 dedusting 2. Block the air inlet with corpus alien. screen. 2.Remove corpus alien from the air inlet. Repair the appliance under the situation as follows: 1. Abnormal action or no action. 2. Abnormal action since ingress of water or corpus alien.
