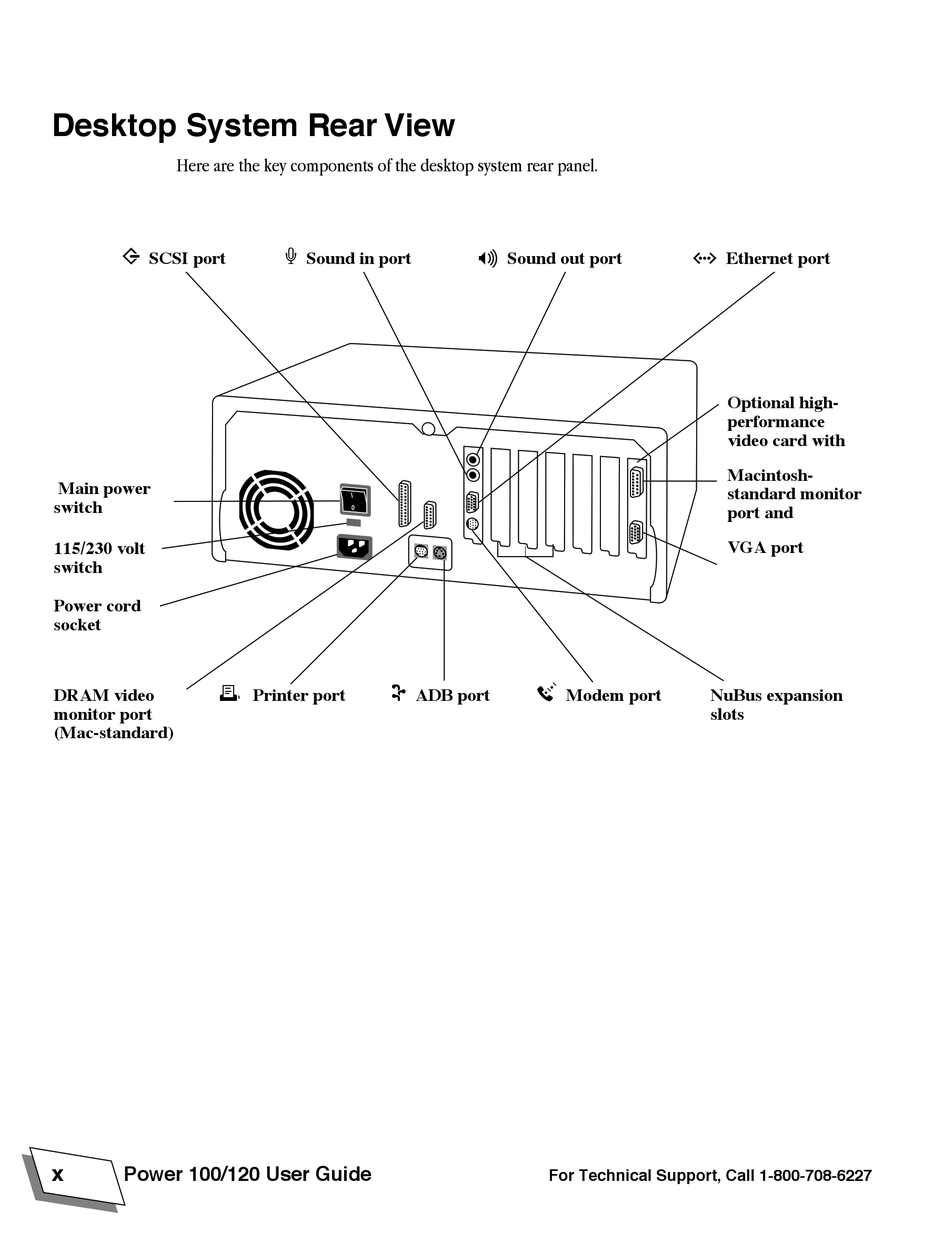

Desktop System Rear View
Here are the key components of the desktop system rear panel.
g
SCSI port
Main power
switch
115/230 volt
switch
Power cord
socket
[
DRAM video
monitor port
(Mac-standard)
x
Power 100/120 User Guide
X
Sound in port
V
Printer port
ADB port
-
Sound out port
W
Modem port
For Technical Support, Call 1-800-708-6227
G
Ethernet port
Optional high-
performance
video card with
Macintosh-
standard monitor
port and
VGA port
NuBus expansion
slots
