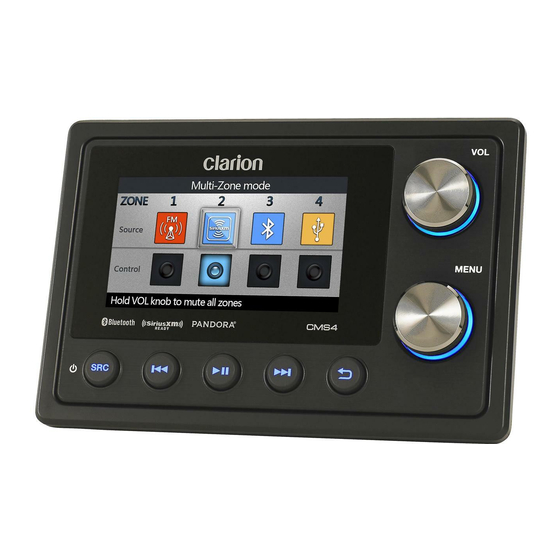

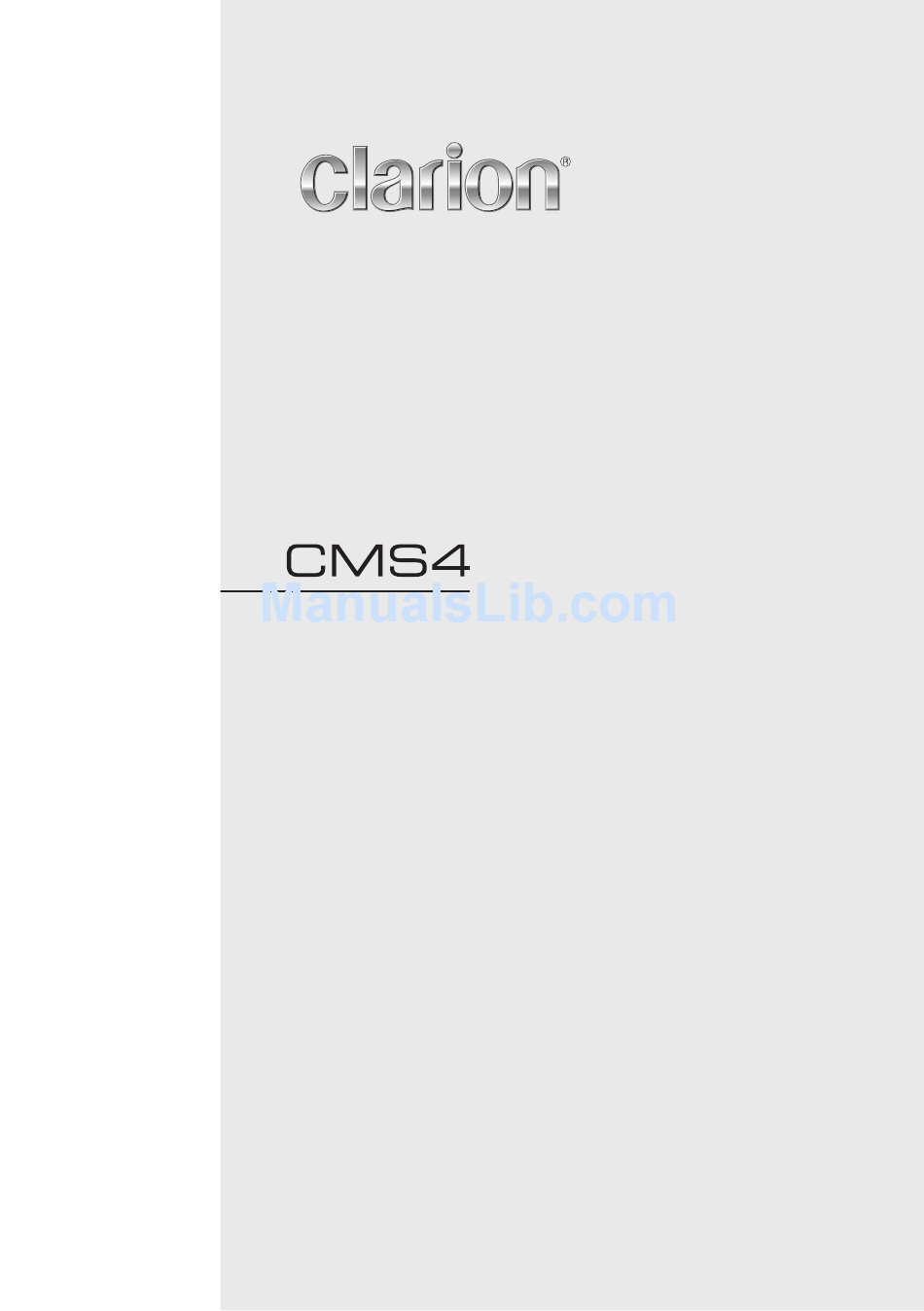

- Page 1 Owners's manual & Installation manual MARINE DIGITAL MEDIA BLACK BOX RECEIVER WITH WATERTIGHT DISPLAY CONTROLLER...
-
Page 2: Table Of Contents
CLARION PRODUCT REGISTRATION INFORMATION For USA and Canada only Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you’ll enjoy your Clarion experience. Contents 1. FEATURES ........................3 2. PRECAUTIONS ....................... 3 3. CAUTIONS ON HANDLING ................... 4 4. -
Page 3: Features
(2) this device must accept any interference, including interference that may ca use undesired operation of the device. encouraged to try to correct the interference by one or more CLARION CORPORATION OF AMERICA of the following measures: 6200 GATEWAY DRIVE, CYPRESS, CA 90630, USA Reorient or relocate the receiving antenna. -
Page 4: Cautions On Handling
Apple Inc., registered in the U.S. and other countries. y The Bluetooth word mark and Logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Clarion Corporation of America is under license. Other trademarks and trade names are those of their respective owners. -
Page 5: Choosing Your Source Unit Configuration
(2 sec.) to bring up the and cancels preset scan operation Power off / Display off selection. Select Power Off to completely power down the CMS4 unit. [ VOL ] Knob Select Display Off to keep the CMS4 operating y Rotate the [ VOL ] knob clock-wise to increase with the display backlight off. - Page 6 When selecting a source, press and hold the [MENU] knob to automatically set all zones to that source. Note: In any source, Press the [MENU] knob to access current source settings. Press and hold the [MENU] knob to access CMS4 device settings. CMS4...
-
Page 7: Optional Wired Remote Control Unit Operations
Optional Wired Remote Control Unit Operations The following operations are enabled by remote Note: If the above equipment is not connected, control with the separately sold Wired Remote corresponding mode cannot be selected. Control Unit MW1 and MW3 (as below) or MW4. [ENTER] Button Note: If the remote control is connected with this unit while the power is on, please restart this unit... - Page 8 SiriusXM mode – Play/Pause, Enter ZONES remote control is enabled in settings, Replay Mode each zone or ALL zones can be controlled from a wired remote by pressing the [ ] / [ ] buttons after increasing or decreasing the volume. CMS4...
-
Page 9: Operations
1. Start the engine. too bright for current lighting conditions. Engine ON position 2. If the CMS4 does not automatically turn on, Press the [ /SRC] button to turn the power on. Press and hold it (2 sec.) to bring up the Power Off/Display Off selection. -
Page 10: Settings
This option allows the user to select theme for the LCD display. Auto is the default setting and is triggered through the dimmer wire on the CMS4 black box unit. Press the [ MENU ] knob to toggle between Day, Night or Auto. ● Dimmer ●... -
Page 11: Audio Mode
Settings ● Dimmer Settings ● Audio Mode These settings allow you to control the screen Press the [MENU] knob to enter the Audio and button brightness based for DAY and Mode screen, rotate the [MENU] knob to select NIGHT mode settings. Standard or Multi-Zone mode. -
Page 12: Radio (Am/Fm/Weather Band) Operation
Rotate the [MENU] knob to manually change intervals step by step. can be played back. ● RDS On/Off Press the [MENU] knob to turn On or Off the RDS Mode. ● PTY Use the [MENU] knob to select the desired PTY mode. CMS4... -
Page 13: Siriusxm Satellite Radio Operations
SiriusXM Satellite Radio Operations ® Only SiriusXM brings you more of what you love 3. Press the [MENU] knob to access SiriusXM to listen to, all in one place. Get over 140 channels, Settings. including commercial-free music plus the best 4. - Page 14 3. Rotate the [MENU] knob to enter the passcode and to access the Lock channel mode . 4. Rotate the [MENU] knob to select Lock/ Unlock channel, then press the [MENU] knob to confirm. CMS4...
-
Page 15: Usb Mode Operation
USB Mode Operation ¡ Connect ¡ USB Settings 1. Insert a USB drive into the USB pigtail. Press the [ MENU ] knob to access the USB settings menu. Rotate the [MENU] knob to select 2. To remove the USB device, you should first the following functions: select another source or turn off the power, in ●... -
Page 16: Ipod/Iphone/Ipad Mode Operation
Press and hold the [ ] button to rewind through the track. ¡ Play / Pause Press the [ ] button to pause the track that is currently playing. Press the [ ] button to resume playing the track that has been paused. CMS4... -
Page 17: Bluetooth Operation
2. When a list of available Bluetooth devices ● Browse appear, select "CMS4”. 1. Press the [MENU] knob to access the BT 3. "Connected OK” will appear on the CMS4 Audio Browse mode. display. 2. Rotate the [MENU] knob to make folder or 4. -
Page 18: Pandora Operation
Press the [ ] button for the next tracks in station. Note: Pandora limits the number of skips allowed on their service. If you attempt to skip tracks beyond the limit, “SKIP LIMIT” is displayed. CMS4... -
Page 19: Aux Operation
Press the [ ] button and select “Camera” to switch to the camera input display. The Camera view can also be triggered by applying a +12V connection to the Camera Trigger wire of the CMS4. See wiring details for further information. -
Page 20: Troubleshooting
The audio quality is The Bluetooth reception is Move the device closer to the audio system or poor after connection poor. remove any obstacle between the device and the with a Bluetooth- system. enabled device. CMS4... -
Page 21: Siriusxm Advisory Messages
6. TROUBLESHOOTING SiriusXM Advisory Messages Message Description Check Tuner The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged. Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio. Check Antenna The radio has detected a fault with the SiriusXM antenna. -
Page 22: Specifications
Bluetooth Version. 3.0+EDR (Enhanced Data Rate) Supported Profiles: A2DP (Advanced Audio Distribution Profile) aptX (CD Quality audio bandwidth matching and reproduction) AVRCP 1.4 (Audio/Video Remote Control Profile) SPP (Serial Port Profile) SSP (Simple Secure Pairing) Send/Receive Sensitivity: Class 2 CMS4... -
Page 23: Installation And Wire Connection
INSTALLATION AND WIRE CONNECTION 1. BEFORE STARTING 1. This set is exclusively for use in vessels with a negative ground 12 V power supply. 2. Read these instructions carefully. 3. Be sure to disconnect the battery “ ” terminal before starting. This is to prevent short circuits during installation. - Page 24 ON and power on the unit to check if it is operating correctly. If abnormalities occur, disconnect the battery negative terminal, recheck all wiring and try again. Please refer to the troubleshooting section for assistance. BLACK BOX MOUNTING CMS4...
- Page 25 5. WIRE CONNECTION Black Black ANTENNA USB 2.1A/BB UPDATE Steering Wheel Black Black Remote Control WIRED REMOTE 1 Terminal Black-Subwoofer Grey FRONT/ZONE1 Red-Line Out Right Black White-Line Out Left WIRED REMOTE 2 White-Line Out Left Black REAR/ZONE2 Red-Line Out Right Black Black-Subwoofer WIRED REMOTE 3...
