Introduction & Parts Identification
The AE51 Auto Flow Calibration software communicates with both the microAeth
and the external flowmeter included with the AethLabs Flow Calibration Kit.
In order to communicate with microAeth AE51, specific USB drivers are required. If you
have already installed the microAethCOM software for configuring and communicating
with the AE51, then these USB drivers are already installed on your computer. If this
is the first time using the microAeth AE51 with your computer then first install the
microAethCOM software.
Carefully unpack the flowmeter assembly and accessories:
Quantity
1
Auto Flow Calibration Flowmeter Assembly
1
AC Wall Power Adapter
2-part Flowmeter Computer Cable, serial mini-DIN to 9-pin RS-232 with
1
RS-232 to USB adapter
1
Flow Calibration Kit Documentation & Software CD
1
TSI Flowmeter Operation and Service Manual
1
TSI RS-232 Serial Command Set Manual
2 microAeth ® AE51 Flow Calibration Kit Operating Manual
AE51
®
Description
AethLabs
Flow Calibration Kit Setup

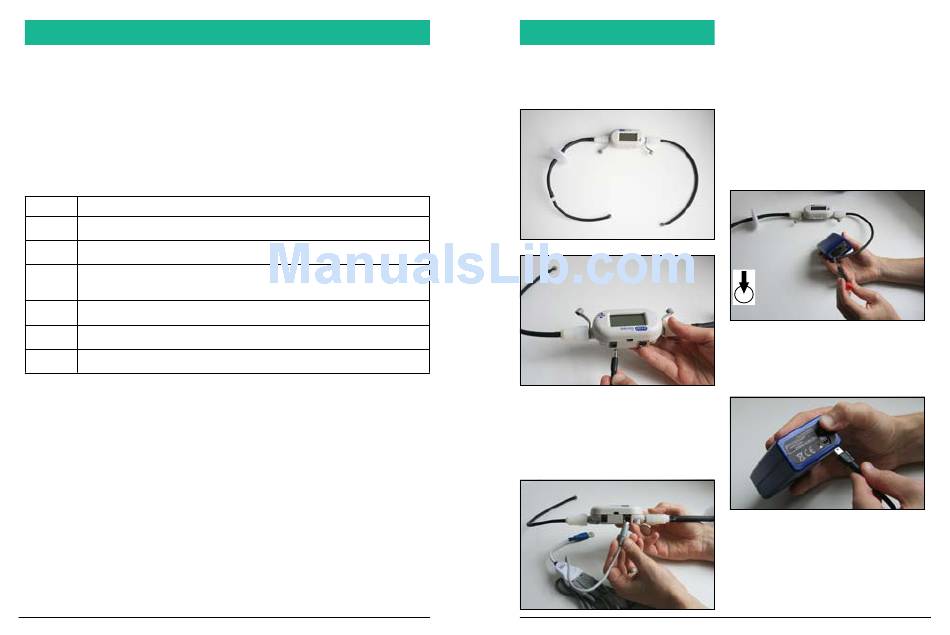

1. Connect the barrel jack end of the AC
wall power adapter to the flowmeter.
Plug in the AC wall power adapter to an
electrical outlet.
2. Connect the mini-DIN end of the 2-part
flowmeter computer cable to the
flowmeter. Connect the USB end of this
cable to the computer with the software
installed.
AethLabs microAeth
3. Screw the 10-32 threaded elbow
fitting connected to the outlet port
of the flowmeter to the inlet port of
the microAeth AE51 (10-32 threaded
elbow fitting connected to 1/8" tube
WITHOUT the In-line 60mm round
ULPA Filter). On the rear panel,
opposite of the flowmeter LCD screen,
there is an arrow denoting the direction
of air flow through the flowmeter. Be
careful to ensure that the elbow
fitting o-ring face seal seats properly
against the AE51.
4. Connect the USB cable to the
microAeth AE51 and your computer
using the USB cable that was provided
with the AE51.
