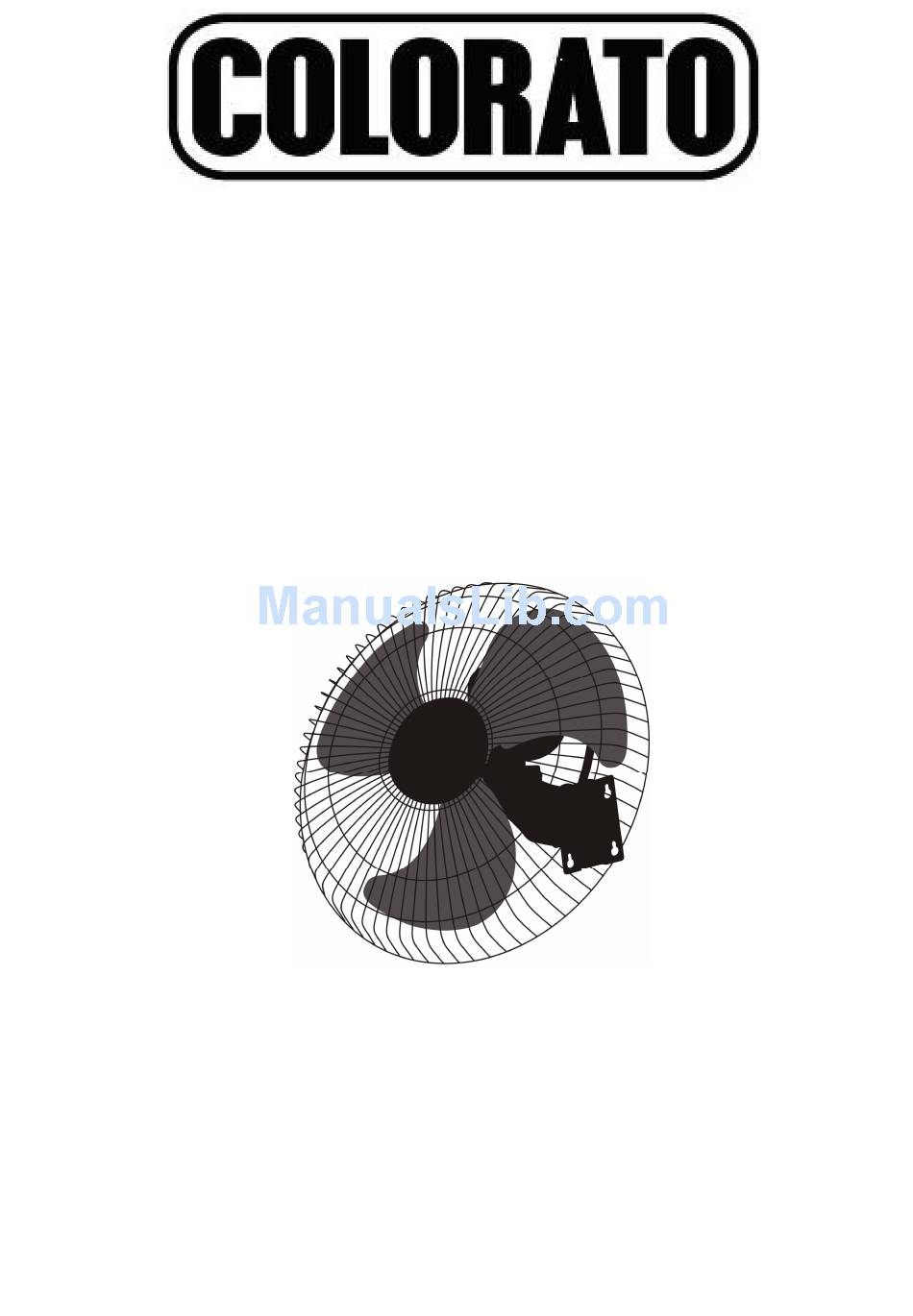

- Page 1 INSTRUCTION MANUAL OF WALL FAN MODEL: CLF-18W Read carefully these instructions, before using the appliance...
- Page 2 Rated Rated Input Rotating Spec Spec Model voltage frequency power delivery speed (mm) (V~) (Hz) (m³/min) (Phase) (r/min) CLF-16W 220-240 Single 1350 CLF-18W 220-240 Single 1350 STRUCTURAL DRAWING front guard blade screw washer back guard motor washer screw 10. bracket 11.
-
Page 3: Operating Instructions
2. OPERATING INSTRUCTIONS 1) Before using, check if the voltage and frequency on the data plate are in agreement with local voltage. 2) Unscrew the holding screw off the control box (as shown in the picture), and then fix the box onto the tube base at position shown in the picture.
