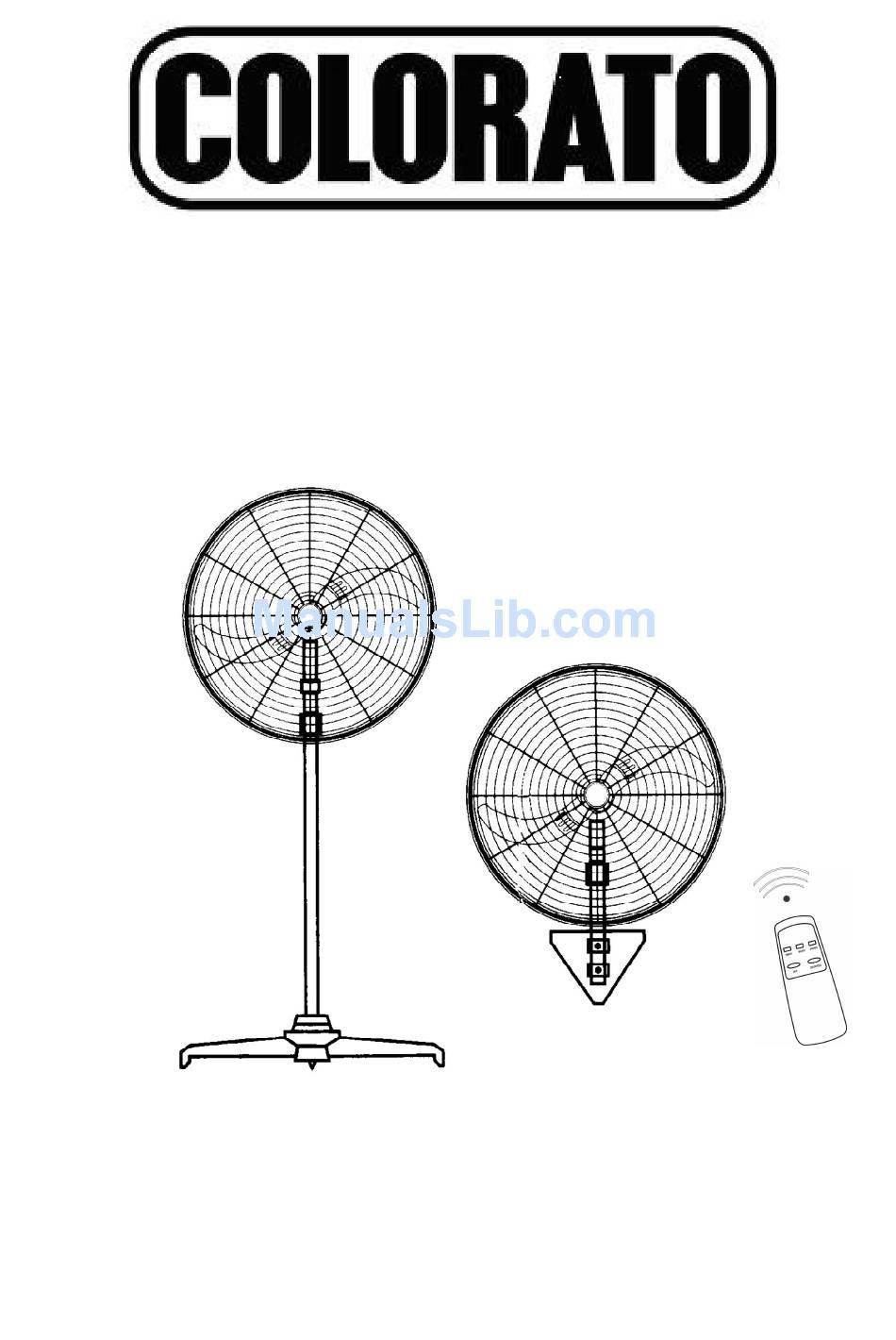

- Page 1 INSTRUCTION MANUAL OF INDUSTRIAL FAN MODELS: CLF-20WRC, CLF-26WRC, CLF-26SE...
- Page 2 The replacements should be done only by qualified technicians. MAIN TECHNICAL CHARACTERISTICS VOLTAGE- NOISE INPUT DIMENSIONS AIR VOLUME COVER AREA MODELS FREQUENCY LEVEL POWER (mm) (m³/min) (m²) (V/Hz) (Db (A)) CLF-20WRC 220-240/50 20-25 CLF-26WRC 220-240/50 30-35 CLF-26SE 220-240/50 30-35...
- Page 3 ASSEMBLING DIAGRAM FRONT GUARD BLADE SCREW BOLT SPRING WASHER GASKET BACK GUARD SPRING WASHER 10. GUARD CLIP 11. GUARD CLIPSCREW 12. NUT 13. MOTOR 14. GASKET 15. SCREW 16. WIRING CLIP 17. FIXING COVER 18. BOLT 19. FIXING SCREW 20. SUPPORT 21.
- Page 4 OPERATION 1. Power source: Check voltage and frequency before use to avoid any problems. 2. Installation plug 220/240V-50Hz: Always use grounded plug for security and protection. 3. Oscillating-rotation control: The oscillating structure is shown in the drawing. It can be adjusted in the angle from 0º～90º. When adjusting screw is moved to the direct axle, the fan will not oscillate.
- Page 5 INSTRUCTION MANUAL FOR REMOTE CONTROL BUTTONS AND FUNCTIONS OFF: Turns the fan off. ON/SPEED: Turns the fan on and with repeat pressing adjusts the fan’s speed to LOW, MED, HIGH. TIME: It controls the work time. Each pressing adds 0,5 h and the max working time is 7,5 h. MODE: The fan has 3 different work modes: normal, natural και...
