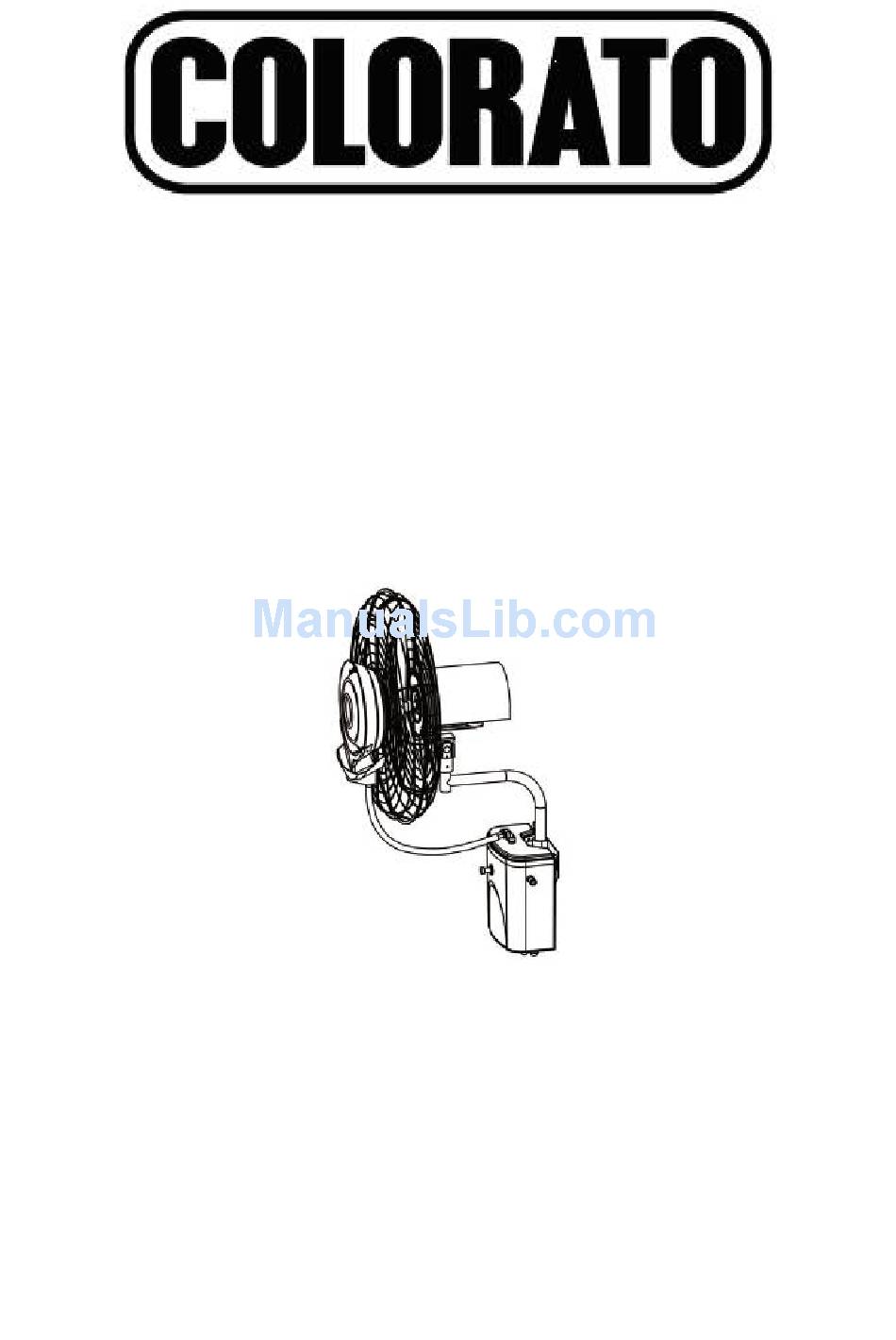

- Page 1 INSTRUCTION MANUAL FOR WALL MISTING FAN MODEL: CLMFW-20/26 Read carefully these instructions before using the appliance...
- Page 2 GENERAL: The fan has big airflow, fast cooling down temperature, saving power, low noise, elegant appearance, easy using and maintenance. The misting system adopts advanced centrifugal design, which does not need nozzles or filter, just add water and connect it directly to the tap. It is ideal for cooling and blocking the dust and the bad smells in cafés, restaurants εστιατόρια, catering, πισίνες, εργοστάσια.
- Page 3 Assembling sketch: Step 1: Fix wall plate on the wall with 2 pcs Μ10x70 screws. Then put support arm into plate and fasten screw Μ8x40 and Μ8x10. «Step 1» Step 2: Loosen M6x45 screw. Put fan head into support arm, fasten Μ6x45 and M6x10, and fix power cord on support arm with clip.
- Page 4 Step 3: Put water tank in the hook of wall plate and then connect the water hose in the proper place. «Step 3» Step 4: Connect plug and socket well and then fix the cover with screw ST4x10. «Step 4»...
- Page 5 Step 5: Connect tap connection with tap and then put water hose into tap connection. Finally, put the other end of water hose into water connection of water tank «Step 5» Attached sketch map: Connect and remove hose: Oscillation adjustment: Connect hose and push the hose on the end of the water connection.
- Page 6 Cut off power and tap and then remove the cover of the water tank. Clean the inside of the water tank with brush and open the valve to drain. Put clean water into the tank to clean it and finally fasten the valve. «Attachment 3» Μodel CLMFW-20 CLMFW-26...
-
Page 7: Wiring Diagram
Capacity Noise Power (max) r/min m³/min r/min m³/min r/min m³/min Model CLMFW-20 1050 1200 1350 CLMFW-26 1050 1200 1350 ATTENTION The symbol on the product means that at the end of its life, the appliance has not to be considered as a common waste. It is a special waste and has to be demolished in specifies recovery and disposal areas, as prescribed by the EC Directive 2002/96/EC (WEEE). - Page 8 NOTICE: - Read this manual carefully before operating the fan. Keep this manual, for future use. - For your safety, the installation, operation and repair of the fan should be done by a professional person. - Before connecting to the power supply, make sure that the local voltage and frequency are the same as the ones on the nameplate.
