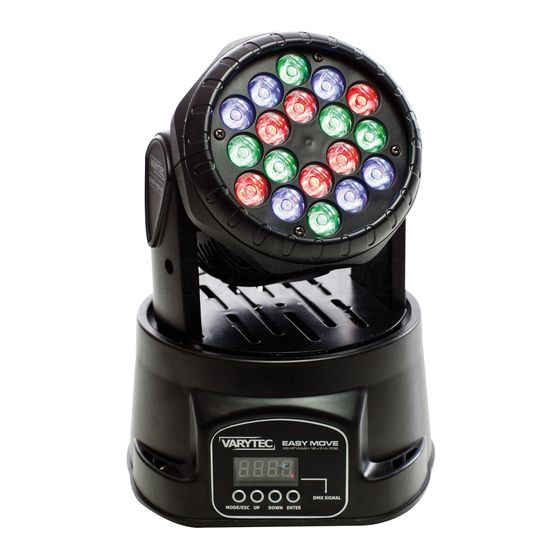

Easy Move XS HP Wash
moving head

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy Move XS HP Wash and is the answer not in the manual?

Questions and answers

Related Manuals for Varytec Easy Move XS HP Wash

Summary of Contents for Varytec Easy Move XS HP Wash

  • Page 1 Easy Move XS HP Wash moving head...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 16.02.2018, ID: 267993 (V2)

  • Page 3: Table Of Contents

    Starting up..............................22 Connections and controls........................25 Operating..............................28 7.1 Starting the device........................... 28 7.2 Operating modes..........................29 7.3 System settings..........................31 7.4 Menu overview..........................34 7.5 Functions in 5-channel DMX mode................... 35 Easy Move XS HP Wash moving head...
  • Page 4 Table of contents 7.6 Functions in 12-channel DMX mode..................37 Technical specifications........................42 Plug and connection assignments....................43 Troubleshooting............................44 Cleaning............................... 46 Protecting the environment......................47 Easy Move XS HP Wash moving head...
  • Page 5 Easy Move XS HP Wash moving head...

  • Page 6: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. Easy Move XS HP Wash moving head...

  • Page 7: Further Information

    Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Easy Move XS HP Wash moving head...

  • Page 8: Notational Conventions

    Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Easy Move XS HP Wash moving head...
  • Page 9 This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Easy Move XS HP Wash moving head...
  • Page 10 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. Easy Move XS HP Wash moving head...

  • Page 11: Safety Instructions

    This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. Easy Move XS HP Wash moving head...
  • Page 12 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. Easy Move XS HP Wash moving head...
  • Page 13 Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Easy Move XS HP Wash moving head...
  • Page 14 The load capacity of trusses or other fixtures must be sufficient for the intended number of devices. Not that the movement of the head places additional loads on the load-bearing parts. Easy Move XS HP Wash moving head...
  • Page 15 NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Easy Move XS HP Wash moving head...
  • Page 16 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Easy Move XS HP Wash moving head...
  • Page 17 PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet. Easy Move XS HP Wash moving head...

  • Page 18: Features

    Control via DMX (five or twelve channels) as well as buttons and display on the unit Auto mode with eight preprogrammed show programmes Sound control with eight preprogrammed show programmes Master / Slave mode Strobe effect Movement resolution 8 Bit or 16 Bit Easy Move XS HP Wash moving head...

  • Page 19: Installation

    Work from a stable platform whenever you install or move the device or when you perform any kind of maintenance. Block access under the work area. Easy Move XS HP Wash moving head...
  • Page 20 Not that the movement of the head places additional loads on the load-bearing parts. NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). Easy Move XS HP Wash moving head...
  • Page 21 For error-free operation make use of dedicated DMX cables and do not use ordi- nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. Easy Move XS HP Wash moving head...

  • Page 22: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Easy Move XS HP Wash moving head...
  • Page 23 Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). The flashing ‘DMX’ LED indicates an incoming DMX signal. Easy Move XS HP Wash moving head...
  • Page 24 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Easy Move XS HP Wash moving head...

  • Page 25: Connections And Controls

    Connections and controls Connections and controls Easy Move XS HP Wash moving head...
  • Page 26 Increases the displayed value by one. [DOWN] Decreases the displayed value by one. [ENTER] Selects an option of the respective operating mode. 3 [POWER / FUSE] IEC chassis plug for power supply with fuse holder. Easy Move XS HP Wash moving head...
  • Page 27 Connections and controls 4 [INPUT] DMX input 5 [OUTPUT] DMX output Easy Move XS HP Wash moving head...

  • Page 28: Operating

    (pan) and inclination (tilt), the screen displays a start message. After a few more seconds, the device operates in the last set mode. Easy Move XS HP Wash moving head...

  • Page 29: Operating Modes

    Press [MODE/ESC] repeatedly until the display shows ‘NStS’ . Confirm with [ENTER]. The display shows ‘SrUn’ , the unit is now in sound control mode. To close the sub menu and the main menu without making changes, press [MODE/ESC] or wait for several seconds. Easy Move XS HP Wash moving head...
  • Page 30 DMX address for the various DMX modes. Mode Highest possible DMX address 5-channel 13-channel Confirm with [ENTER]. To close the sub menu and the main menu without making changes, press [MODE/ESC] or wait for several seconds. Easy Move XS HP Wash moving head...

  • Page 31: System Settings

    ‘t.9’ , maximum inclination angle 90° ‘t.18’ , maximum inclination angle 180° Confirm with [ENTER]. To close the sub menu and the main menu without making changes, press [MODE/ESC] or wait for several seconds. Easy Move XS HP Wash moving head...
  • Page 32 ‘t.L’ , normal tilt direction ‘rt.L’ , reversed tilt direction Confirm with [ENTER]. To close the sub menu and the main menu without making changes, press [MODE/ESC] or wait for several seconds. Easy Move XS HP Wash moving head...
  • Page 33 Press [MODE/ESC] repeatedly until the display shows ‘rEST’ . Confirm with [ENTER] to reset the user settings. Reset to factory defaults Press [MODE/ESC] repeatedly until the display shows ‘LoAD’ . Confirm with [ENTER] to reset the unit to factory defaults. Easy Move XS HP Wash moving head...

  • Page 34: Menu Overview

    Operating 7.4 Menu overview Easy Move XS HP Wash moving head...

  • Page 35: Functions In 5-Channel Dmx Mode

    Inclination (tilt) 0…7 all LEDs off 8…134 Dimmer (100 % to 0 %) 135…239 Strobe effect (0 Hz to 40 Hz) 240…255 open Basic colours 0…7 No function 8…20 White 21…34 35…48 Green Easy Move XS HP Wash moving head...
  • Page 36 49…62 Blue 63…76 Bright blue 77…90 Magenta 91…104 Yellow 105…118 Orange 119…132 Pink 133…146 White with pink 147…160 White with blue 161…174 Cyan 175…188 Light green 189…202 Bright cyan 203…216 White 217…231 Violet Easy Move XS HP Wash moving head...

  • Page 37: Functions In 12-Channel Dmx Mode

    Fast colour change 243…255 Colour fade No function 7.6 Functions in 12-channel DMX mode Channel Value Function 0…255 Rotation (pan) 0…255 Fine pan 0…255 Inclination (tilt) 0…255 Fine tilt 0…255 Increasing rotation and inclination speed Easy Move XS HP Wash moving head...
  • Page 38 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) Basic colours 0…7 No function 8…20 White 21…34 35…48 Green 49…62 Blue Easy Move XS HP Wash moving head...
  • Page 39 Bright blue 77…90 Magenta 91…104 Yellow 105…118 Orange 119…132 Pink 133…146 White with pink 147…160 White with blue 161…174 Cyan 175…188 Light green 189…202 Bright cyan 203…216 White 217…231 Violet 232…242 Fast colour change Easy Move XS HP Wash moving head...
  • Page 40 Auto programme 1 23…37 Auto programme 2 38…53 Auto programme 3 54…67 Auto programme 4 68…82 Auto programme 5 83…97 Auto programme 6 98…112 Auto programme 7 113…127 Auto programme 8 128…142 Sound programme 1 Easy Move XS HP Wash moving head...
  • Page 41 Operating Channel Value Function 143…157 Sound programme 2 158…172 Sound programme 3 173…187 Sound programme 4 188…202 Sound programme 5 203…217 Sound programme 6 218…232 Sound programme 7 233…255 Sound programme 8 Easy Move XS HP Wash moving head...

  • Page 42: Technical Specifications

    50 Hz Power consumption 80 W Fuse 5 mm × 20 mm, 2 A, fast blow Dimensions (W × H × D) 177 mm × 238 mm × 176 mm Weight 4.5 kg Easy Move XS HP Wash moving head...

  • Page 43: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Easy Move XS HP Wash moving head...

  • Page 44: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli- fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Easy Move XS HP Wash moving head...
  • Page 45 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Easy Move XS HP Wash moving head...

  • Page 46: Cleaning

    The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. Easy Move XS HP Wash moving head...

  • Page 47: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Easy Move XS HP Wash moving head...
  • Page 48 Notes Easy Move XS HP Wash moving head...
  • Page 49 Notes Easy Move XS HP Wash moving head...
  • Page 50 Notes Easy Move XS HP Wash moving head...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
