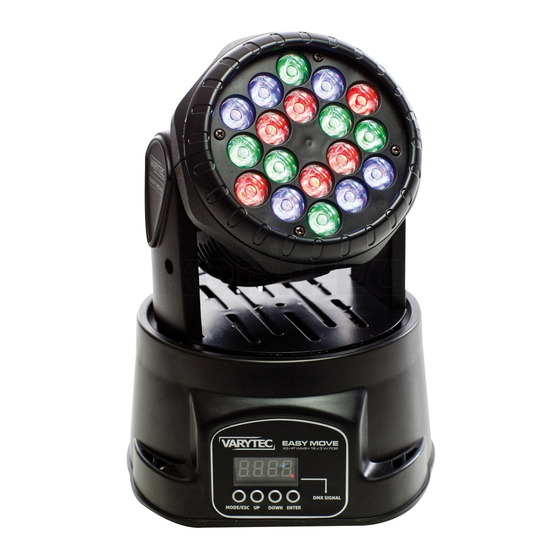

Summary of Contents for Varytec Easy Move LED XS

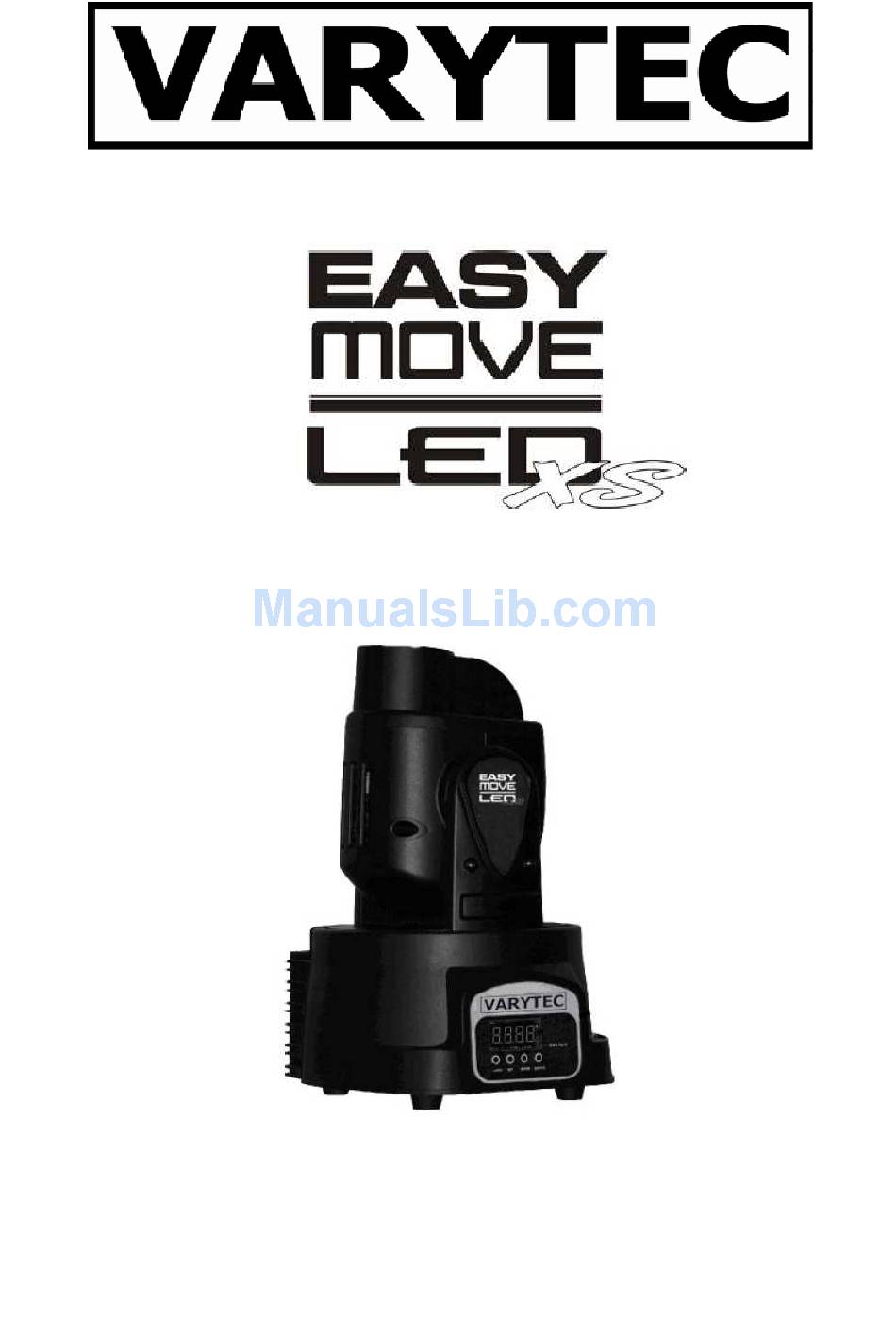

  • Page 1 User manual...

  • Page 2: Table Of Contents

    Index Safety Information ........................... 4 1.1. Hints for safe and faultless use ....................4 Introduction ............................6 2.1. Controllable features ....................... 6 2.2. Additional features ........................6 DMX channels ..........................7 Product overview ..........................8 Technical specifications ........................9 5.1. Change internal Fuse ......................
  • Page 3 DMX Values (Spot) 13 channels ....................17 DMX Values (Wash) 12 channels ..................... 18 Technical data ........................... 20 3 / 21...

  • Page 4: Safety Information

    1. Safety Information • The usage of this device is only allowed for indoor use. • The warranty expires in case of manual changes at the device by the user. • The device may only be repaired by professionals. • Only use fuses of the same type as the original and only use original spare parts.
  • Page 5 Attention! The warranty claim expires, when damages are caused by disregarding of this user manual. The manufacturer and importer do not assume liability for consequential damages at all. Only qualified and trained technicians are allowed to work at electric parts of the device. All electrical and mechanical connections have to be mounted according to the european safety standards.

  • Page 6: Introduction

    2. Introduction 2.1. Controllable features • Control with 5 or 10 DMX- channels • 540° Pan/270°Tilt • RGB color-mixing • Gobo-wheel with 9 gobos and goboshake-function • Adjustable electronic strobe • Adjustable electronic dimmer • Adjustable speed for Pan/Tilt, color-mixing and color-presets •...

  • Page 7: Dmx Channels

    3. DMX channels 12 channel mode for wash light 13 channel mode for spot Channel Function Channel Functon Pan fine Pan fine Tilt Tilt Tilt fine Tilt fine Speed pan/tilt Speed pan/tilt Dimmer/strobe Dimmer/strobe Green Green Blue Blue Colors Colors Speed color Speed color Movement...

  • Page 8: Product Overview

    4. Product overview 8 / 21...

  • Page 9: Technical Specifications

    5. Technical specifications 5.1. Change internal Fuse Push the out the fuse-holder with a screwdriver. Change the fuse only with one of the exact same type. Push the fuse-holder back on its origin position and connect the mains cable to the socket again. 5.2.

  • Page 10: Dmx Data Cable

    6. DMX Data Cable Only use a cable, which is conform to the RS-485 standard. Standard microphone cable cannot transfer DMX signal correct over long distances. The cable should fulfill following requirements: 2 conductors + ground (3-pole) Maximum capacity between conductors 30pF/ft. Maximum capacity between conductor and ground 55pF Maximum electric resistance 20 Ohm/1000ft nominal impedance 100 –...

  • Page 11: Configuration Of Connection

    7. Configuration of Connection 1. Connect the 3-pole connector of the DMX cable with the 3-pole output of the controller. 2. Connect the female connector of the cable with the input of the first device. 3. Then go on by connecting the output of the device with the input of the next device. 11 / 21...

  • Page 12: Master/Slave Linking The Devices

    8. Master/Slave linking the devices 1. Connect the 3-pole connector of the DMX cable with the 3-pole output the first device. 2. Then connect the output of the second device with the input of the third device. 3. Then go on by connecting the output of the each device with each input of the next device. 9.

  • Page 13: Operation Settings

    Operation settings 10.1. Navigate in the control display To adjust the functions, use the 4 buttons below the display. 13 / 21...

  • Page 14: Menu Overview

    Menu overview 14 / 21...

  • Page 15: User Adjustments

    User adjustments 12.1. Invert pan 1. Press the “MODE” button until “PAN” or “rPAN” appears in the display. 2. Use the “UP/DOWN” buttons to select the requested adjustment and then press enter. 12.2. Invert tilt 1. Press the “MODE” button until “t iL” or “rt iL” appears in the display. 2.

  • Page 16: Service Functions

    12.7. Service functions 12.7.1. Device reset 1. Press the “MODE” button until “rESt” appears in the display. 2. Press enter. 12.7.2. Set to factory default 1. Press the “MODE” button until “LoAd” appears in the display. 2. Press enter. Mode of operation 13.1.
  • Page 17 DMX Values (Spot) 13 channels 17 / 21...
  • Page 18 DMX Values (Wash) 12 channels 18 / 21...
  • Page 19 19 / 21...
  • Page 20 Technical data 20 / 21...
  • Page 21 Importeur: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 21 / 21...
