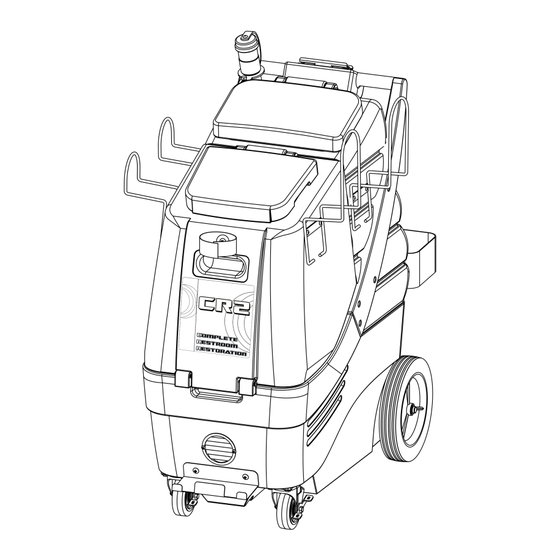

- Page 1 COMPLETE RESTROOM RESTORATION 17 GALLON PROFESSIONAL RESTROOM CLEANER OWNER’S/OPERATOR’S MANUAL PROUDLY DESIGNED AND MANUFACTURED BY WWW.EDIC-USA.COM Revised 1-24-18...
-
Page 2: Table Of Contents
TABLE OF CONTENTS RECEIVING YOUR EQUIPMENT................... WARNINGS AND SAFETY....................3, 4 ELECTRICAL INFORMATION..................GFCI INFORMATION....................... GROUNDING INSTRUCTIONS..................MAINTENANCE........................ CORD STORAGE AND SAFETY..................MACHINE LAYOUT......................INCLUDED ACCESSORIES....................ASSEMBLING THE ACCESSORY RACKS..............OPENING THE MACHINE..................... INSTALLING METERING TIPS..................OPERATING INSTRUCTIONS FOR HARD SURFACE CLEANING....... 9,10 RECOVERING LIQUID FROM HARD SURFACES............. -
Page 3: Receiving Your Equipment
FAILURE TO COMPLY WITH THE FOL- When your package is delivered, check the carton care- LOWING WARNINGS AND INSTRUCTIONS fully for signs of rough handling. If your CR2 is damaged, WILL VOID THE WARRANTY. notify the carrier immediately and request an inspection. -
Page 4: Electrical Information
Prevent burns by wearing gloves or using a barrier to operating conditions. When the electrical system has remove hot quick disconnects. been disabled, you will not be able to run the CR2, at all, • This is not a toy. Keep away from children. -
Page 5: Grounding Instructions
GFCI is working properly. plug provided with the equipment. If it will not fit the outlet, have a proper outlet installed by a qualified electri- Press the “RESET” button on the GFCI and the CR2 will cian. be fully functional again. -
Page 6: Maintenance
MAINTENANCE: Weekly: This CR2 has been engineered and built to require mini- mum maintenance. But like any machine, it does require • Check and clean solution filter some care to keep it in optimum working condition. • Check for obstructions in vacuum pathways Careful attention to these maintenance instructions will •... -
Page 7: Machine Layout
1. Handle- Used to maneuver and position the CR2 11. Chemical dispensing valve- Select between 2. Recovery tank lid- Allows access to recovery tank “SOAP”and “RINSE” by turning to left or right as and creates a seal to ensure suction marked 3. -
Page 8: Included Accessories
45 FT Vacuum Hose. Connects to vacuum hose inlet barb on CR2 (#7 on page 4) 5. Part #J14039A 45ft Blow hose. Connects to Exhaust port on CR2 (#13 on page 4) 6. Part #9000AC-1 High Pressure gun. Connects to hose #3 on this page. -
Page 9: Assembling The Accessory Racks
Assembling the accessory racks: Installing metering tips for the Chemical feed The CR2 is shipped with the accessory racks and hard- system: ware in the solution tank. When you receive your CR2, Remove the semi-clear hose from the bottle cap (#8 on it is necessary to secure the racks to the body. -
Page 10: Recovering Liquid From Hard Surfaces
Use defoamer to ensure your vacuum chemical dilution for touchless surface cleaning. motor does not take in foam/fluid. 1. Fill the solution tank of your CR2 with sufficient wa- Using the blower feature: ter for the task at hand. -
Page 11: Using An Accessory Heater For Carpet Or Uph
How to prepare an accessory heater for carpet heater: cleaning or upholstery: The CR2 can be used as a cold water extractor. 1. Mount the Heater by lining up the two “legs” to the two mounting brackets on the rear of the machine. - Page 13 2700RC UPPER 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. 10989-2A BALL FLOAT A00052 90 DEGREE ELBOW, .25" MP X .25" FP A00060 BARB, .375" X .25" MPT, BRASS A00124 LOCKNUT, .25NPT, BRASS A00139 BARB, .25 X .25MP, BRASS A13881 CHECK VALVE A90004 BARB, .5 X .25MP, BRASS B010314...
- Page 14 2700RC UPPER 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. J00650 SCREW CLAMP #24 1.25 INCH K00665-1 1.5" HOSE ADAPTER K00666 1-1/2" 90 DEGREE ELBOW K00672 PVC PIPE, 1.5" SCH40, 1.3125' K00672-1 PVC PIPE, 1 1/2" X 2.25", SCH40 K00741 ADAPTER, MALE, 1 1/2", SCH40 K11185 90 DEGREE ELBOW, SCH40, MPT, SF K11965...
- Page 16 2700RC BASE 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. HOSE ASSEMBLY J00580 HIGH PRESSURE/TEMP HOSE .25" ID X 10" L J00660 SWAGE FITTING, .25" FP HOSE ASSEMBLY, .25" MP X .25" FP, 10" L J00580 HIGH PRESSURE/TEMP HOSE .25" ID X 10" L J00659 SWAGE FITTING, .25"...
- Page 17 GROMMET E11128 DRAIN VALVE GASKET E11169 GASKET, VACUUM MOTOR E13867 SANDWICH MOUNT, NEOPRENE F11178-1 INTERCOOLER, SINGLE PORT F11789-1-RC CR2 BASE, GRANITE BLUE F11790-1 HEATER PORT, COVER PLATE F13820 LOUVER, 3", BLACK G02517-1 MOTOR, VACUUM G03518-L CASTER, LOCKING, 4" G11767 WHEEL, 10" X 1.75"...
-
Page 18: Notes
NOTES... -
Page 19: Warranty
No warranty returns for refund or credit will be permitted. In the event of a defect, these are your exclusive remedies. Warranty claims must be made in writing to EDIC prior to returning the product and no products will be accepted for repair or replacement without prior authorization by EDIC.
