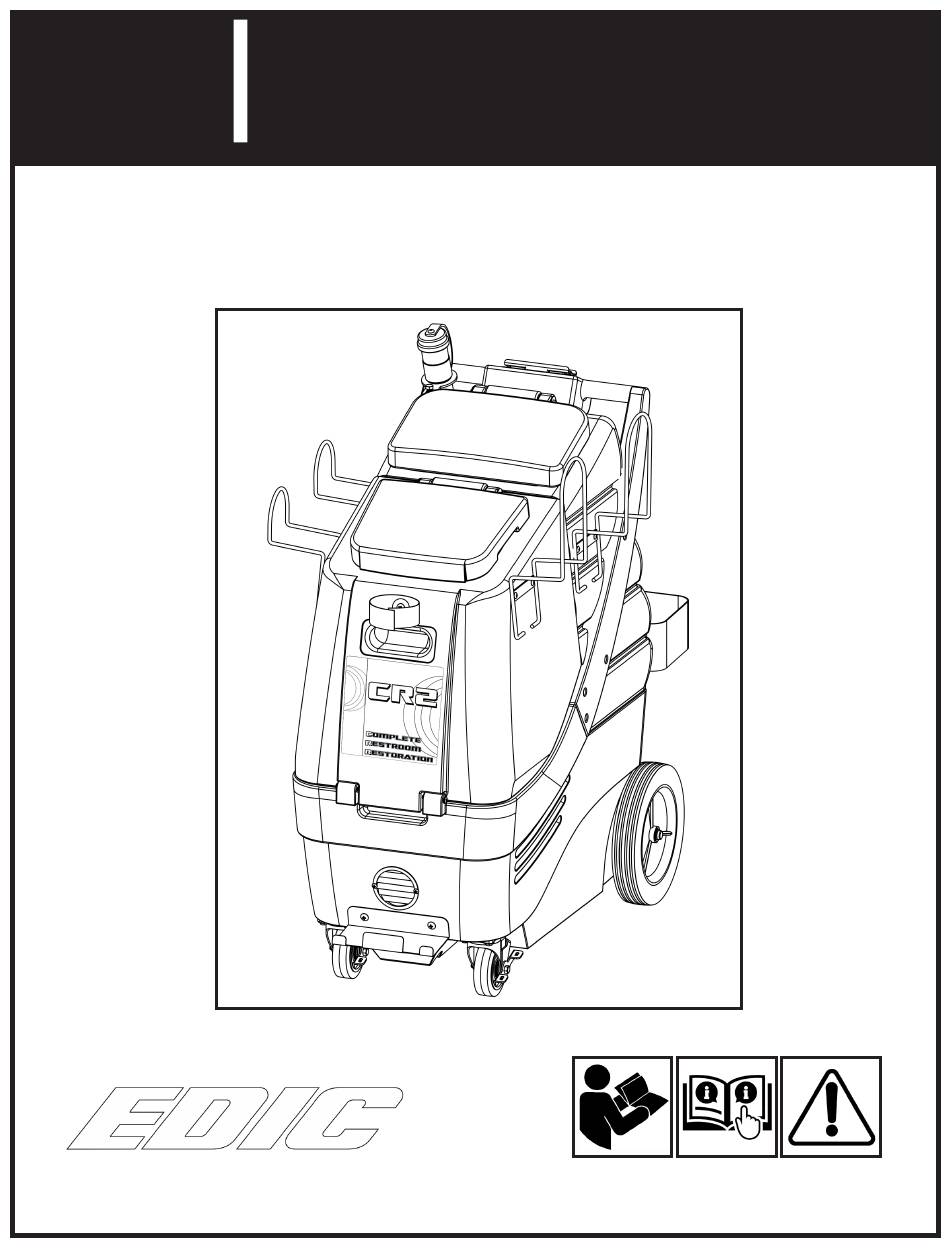

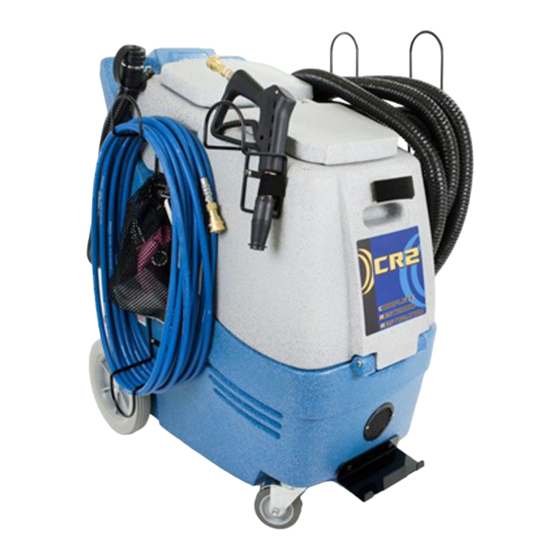

  • Page 1 COMPLETE RESTROOM RESTORATION 17 GALLON PROFESSIONAL RESTROOM CLEANER OWNER’S/OPERATOR’S MANUAL PROUDLY DESIGNED AND MANUFACTURED BY Revised 1-24-18...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS RECEIVING YOUR EQUIPMENT................... WARNINGS AND SAFETY....................3, 4 ELECTRICAL INFORMATION..................GFCI INFORMATION....................... GROUNDING INSTRUCTIONS..................MAINTENANCE........................ CORD STORAGE AND SAFETY..................MACHINE LAYOUT......................INCLUDED ACCESSORIES....................ASSEMBLING THE ACCESSORY RACKS..............OPENING THE MACHINE..................... INSTALLING METERING TIPS..................OPERATING INSTRUCTIONS FOR HARD SURFACE CLEANING....... 9,10 RECOVERING LIQUID FROM HARD SURFACES.............

  • Page 3: Receiving Your Equipment

    Any deviation from its EDIC’s liability ceases when the carrier picks up the ship- proper use or purpose and the consequential damage ment. However, our customer service staff will be happy...

  • Page 4: Electrical Information

    If a GFCI continues to trip after resetting, it indicates an GFCI function. unsafe operating condition is present and it is best to take it to an authorized repair location for servicing. Con- tact EDIC for assistance in locating an authorized repair location.

  • Page 5: Grounding Instructions

    GFCI MAINTENANCE: GROUNDING INSTRUCTIONS: Although the GFCI function works on its own, it is nec- This piece of equipment must be grounded. Should an essary to test for proper function of your GFCI periodi- electrical malfunction occur, grounding provides a path cally.

  • Page 6: Maintenance

    MAINTENANCE: Weekly: This CR2 has been engineered and built to require mini- mum maintenance. But like any machine, it does require • Check and clean solution filter some care to keep it in optimum working condition. • Check for obstructions in vacuum pathways Careful attention to these maintenance instructions will •...

  • Page 7: Machine Layout

    1. Handle- Used to maneuver and position the CR2 11. Chemical dispensing valve- Select between 2. Recovery tank lid- Allows access to recovery tank “SOAP”and “RINSE” by turning to left or right as and creates a seal to ensure suction marked 3.

  • Page 8: Included Accessories

    1. Part# 334ACH-2 2 piece wand and reversible brush/squeegee head assembly. For scrubbing on one side and picking up water on the other. Connects to hose #4 on this page. 2. Part# K13686 “Gulper” tool Used to extract large volumes of water. Connects to hose #4 on this page.

  • Page 9: Assembling The Accessory Racks

    Assembling the accessory racks: Installing metering tips for the Chemical feed The CR2 is shipped with the accessory racks and hard- system: ware in the solution tank. When you receive your CR2, Remove the semi-clear hose from the bottle cap (#8 on it is necessary to secure the racks to the body.

  • Page 10: Recovering Liquid From Hard Surfaces

    Hard surface Cleaning with Chemical feed tool, to extract the liquid from the surface. (see page system: 4. Monitor the levels in the recovery tank and empty The chemical feed system is designed to deliver accurate as necessary. Use defoamer to ensure your vacuum chemical dilution for touchless surface cleaning.

  • Page 11: Using An Accessory Heater For Carpet Or Uph

    1. Power switch- Lights up when switched to power 16. Turn on the vacuum motor. “ON” 17. Spray on the backstroke and do a dry stroke when 2. “INLET” hose connect to male Q.D. (#16 on page 4) pushing forward. 3.
  • Page 13 2700RC UPPER 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. 10989-2A BALL FLOAT A00052 90 DEGREE ELBOW, .25" MP X .25" FP A00060 BARB, .375" X .25" MPT, BRASS A00124 LOCKNUT, .25NPT, BRASS A00139 BARB, .25 X .25MP, BRASS A13881 CHECK VALVE A90004 BARB, .5 X .25MP, BRASS B010314...
  • Page 14 2700RC UPPER 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. J00650 SCREW CLAMP #24 1.25 INCH K00665-1 1.5" HOSE ADAPTER K00666 1-1/2" 90 DEGREE ELBOW K00672 PVC PIPE, 1.5" SCH40, 1.3125' K00672-1 PVC PIPE, 1 1/2" X 2.25", SCH40 K00741 ADAPTER, MALE, 1 1/2", SCH40 K11185 90 DEGREE ELBOW, SCH40, MPT, SF K11965...
  • Page 16 2700RC BASE 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. HOSE ASSEMBLY J00580 HIGH PRESSURE/TEMP HOSE .25" ID X 10" L J00660 SWAGE FITTING, .25" FP HOSE ASSEMBLY, .25" MP X .25" FP, 10" L J00580 HIGH PRESSURE/TEMP HOSE .25" ID X 10" L J00659 SWAGE FITTING, .25"...
  • Page 17 2700RC BASE 1/24/2018 ITEM NO. PART NUMBER DESCRIPTION QTY. D13698-3 RACK, SOLUTION HOSE/POWER CORD E00449 GROMMET E11128 DRAIN VALVE GASKET E11169 GASKET, VACUUM MOTOR E13867 SANDWICH MOUNT, NEOPRENE F11178-1 INTERCOOLER, SINGLE PORT F11789-1-RC CR2 BASE, GRANITE BLUE F11790-1 HEATER PORT, COVER PLATE F13820 LOUVER, 3", BLACK G02517-1...

  • Page 18: Notes

    NOTES...

  • Page 19: Warranty

    No warranty returns for refund or credit will be permitted. In the event of a defect, these are your exclusive remedies. Warranty claims must be made in writing to EDIC prior to returning the product and no products will be accepted for repair or replacement without prior authorization by EDIC.
