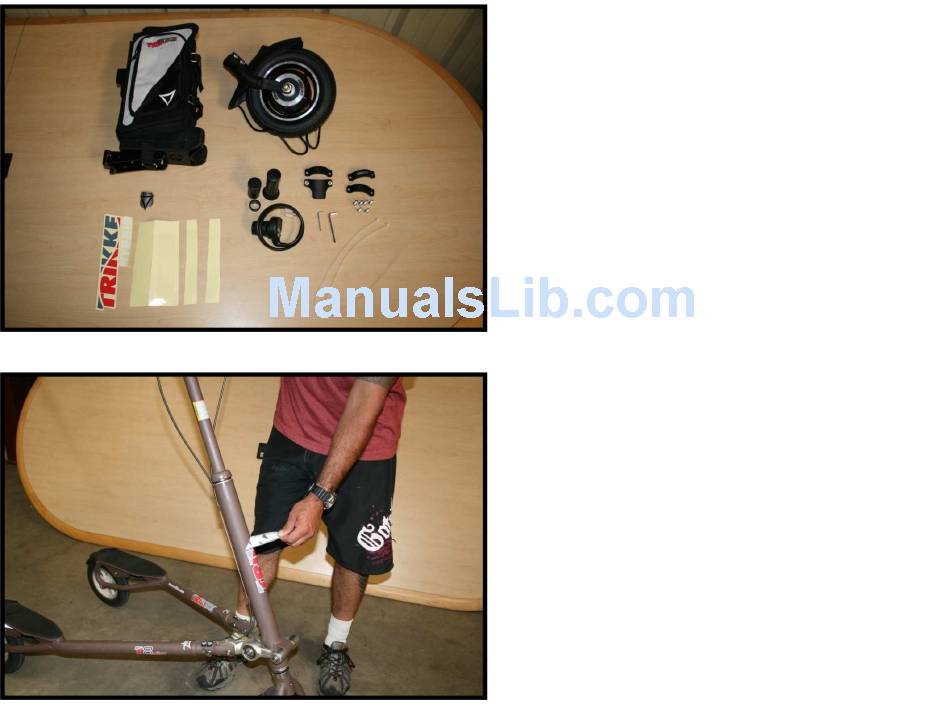

1. Verify that your E-Kit contains all of the following materials for proper
installation:
•
Wheel and motor assembly X1
•
Battery pack/controller bag and bracket assembly X1
•
Throttle X1
•
Full sized handle grip X1
•
Half sized handle grip X1
•
Throttle sleeve X1
•
Circular half-brackets X3
•
Circular T-shaped half-bracket X1
•
5mm hex-bolts X6
•
5mm Allen wrench X1
•
3mm Allen wrench X1
•
Zip-ties X2
•
Trikke emblem badge X1
•
Trikke Tribred front post sticker X1
•
2" Clear alignment stickers X2
•
1" Clear alignment sticker X1
•
Clear wire bundler stickers X3
2. Remove the existing Trikke sticker from the front post. Also, remove
the water bottle cage from the front post if you have one installed.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trikke E-Kit
Summary of Contents for Trikke E-Kit
- Page 1 1. Verify that your E-Kit contains all of the following materials for proper installation: • Wheel and motor assembly X1 • Battery pack/controller bag and bracket assembly X1 • Throttle X1 • Full sized handle grip X1 • Half sized handle grip X1 •...
- Page 2 4. Free the brake cables from the cable bracket at the lower end of the front post so that the brake cables can be pulled to the rear of the Trikke. This will allow installation of the E-Kit without interfering with the brake cables.
- Page 3 6. Press the alignment pin and remove the front wheel assembly. Note: You may want to place the front post stem on a piece of wood or in the plastic Trikke packaging block that originally came with the Trikke to avoid damaging the Trikke or the floor.
- Page 4 7. Remove both existing handle grips. • Some handle grips require that a phillips-head screw be removed prior to removing the handle grip. If this is the case, remember to also remove the cap inside the handlebar so that it does not fall inside the handlebar and rattle around as you ride.
- Page 5 10. Place one of the 2” clear alignment stickers 0.5” below the upper brake cable bracket. 11. Place the second 2” clear alignment sticker 0.75” below the lower brake cable bracket. 0.5”...
- Page 6 12. Install the bag and bracket assembly – Option A. • Fold the Trikke into its closed and locked position. Place the battery pack/controller bag and bracket assembly between the arms of the Trikke, but beneath the front post. •...
- Page 7 14. Reassemble the brakes. • Feed the brake cables through the spaces located in the front center of each bracket. Do not set the brake cables in the brake cable brackets on the front post (arrows). • Cross the brake cables once behind the post and once more in front of the post.
- Page 8 15. Tape the throttle cable to the brake cable using the three clear cable bundling stickers provided. 16. Unzip the top flap of the bag assembly and feed the throttle cable wires through the hole located at the top front center of the bag assembly.
- Page 9 17. Install the 1” clear alignment sticker. • Turn the Trikke upside down and rest the Trikke on its handlebar and foot rests. • Remove the serial number sticker located on the backside of the front post near the front wheel assembly.
- Page 10 19. Install the front wheel motor assembly. • Slide the motor assembly over the steering post. • Press in the steering post pin and slide the motor assembly over it until the pin snaps into place. • Note: The front wheel motor assembly plastic fender may be loose.
- Page 11 20. Install the front wheel motor assembly wire bundle – Part A • From the front wheel motor, make sure the wire bundle is behind the front fork. Also make sure the wire bundle will not rub the motor or wheel by adjusting the existing zip-tie and wire bundle around the front fork.
- Page 12 21. Install the front wheel motor assembly bundle – Part B • Connect the white plastic connecters from the motor to the controller making sure to match the wire colors along with the connecters. • Connect the four individual wires from the motor to the same colored individual wires from the controller.
- Page 13 22. Install the Trikke Tribred sticker on the front post between the bag assembly brackets. 23. Install the Trikke hybrid 3CV technology badge on the front post above the upper bag assembly bracket (arrow). 24. This concludes the E-Kit installation.
- Page 14 E-Kit User’s Guide E-Kit Trouble Shooting Manual The Trikke Tribred will need to charge for a minimum of 8 hours before Make sure that the ends of the wires in the wire connecters are securely its first use. To charge the Trikke Tribred, first plug the charging unit in place.
