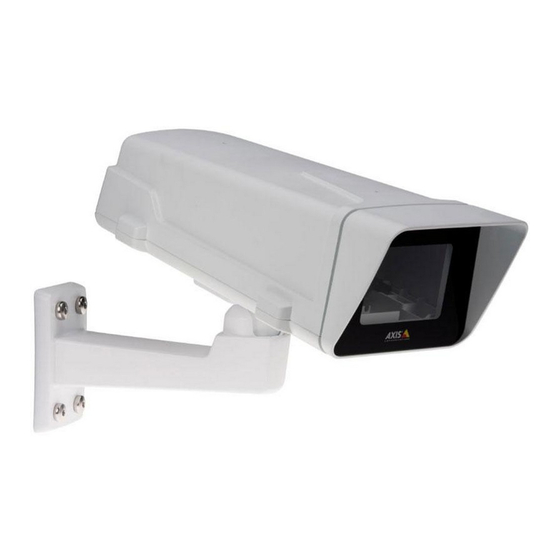

- Page 1 AXIS T93F Housing Series AXIS T93F05 Outdoor Housing AXIS T93F10 Outdoor Housing AXIS T93F20 Outdoor Housing Repainting Instructions...
- Page 2 Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
- Page 3 AXIS T93F Housing Series How to repaint the product How to repaint the product Disassembly Disassemble the housing 1. Loosen the four screws to separate the top cover from the bottom chassis. 2. Remove the four screws from the bottom chassis.
- Page 4 For all variants though, proper cleaning to remove oil, grease and dust is strongly recommended. For more information on the materials used in the product, see its datasheet at www.axis.com Powder coated parts - Using fine sandpaper, remove the original powder coating down to the stainless steel surface and clean the parts before painting, or use a primer.
- Page 5 AXIS T93F Housing Series How to repaint the product Masking Masking the top cover Mask the following items on the top cover: 1. The front window. 2. The four threaded holes. 3. The label. Front window Threaded hole (4x) Label...
- Page 6 AXIS T93F Housing Series How to repaint the product Screw holes (4x) Accessory screw holes (3x) Mount bracket screw holes (4x) Cable glands (2x) Gasket Masking the wall mount bracket Mask the following parts: 1. The four screw holes 2. The ball joint.
- Page 7 3. To get a better coverage and clearer color, apply a second layer of spray paint. 4. When the paint is dry, remove the masking and reassemble the product. Reassembly Reassemble the product. For more information, see the Installation Guide available at axis.com...
- Page 8 Repainting Instructions Ver. M1.8 AXIS T93F Housing Series Date: September 2017 © Axis Communications AB, 2017 Part No. 1751434...
